EASY TO USE
It measures up to 31rd voltage and current harmonics.
128 x 64 Graphic LCD
3-phase voltage and 3-phase current transformer.
RS485 Modbus RTU (1200-115200 bps)
It shows per-phase and total active (P1, P2, PΣ) powers.
It shows per-phase and total reactive (Q, Q2,Q3,QΣ inductive and capacitive) powers.
It shows per-phase and total apparent (S, S2,S3,SΣ) powers.
It shows power factors ( PF) and Cosφ values of each phase.
It shows voltage (V) minimum (min), maximum (max) and mean values of phase-to-neutral and
phase-to-phase.
It shows total current value (I1, I2,I3,IΣ) of each phase.
It shows total imported active energy (ΣkWh) value.
It shows total exported active energy (ΣkWh) value.
It shows total inductive reactive energy (ΣkVArh) value.
It shows total capacitive reactive energy value (ΣkVArh).
Date and time is adjustable.
Real time clock
It shows demands.
You can delete the energies and demands.
Menu is password-protected.

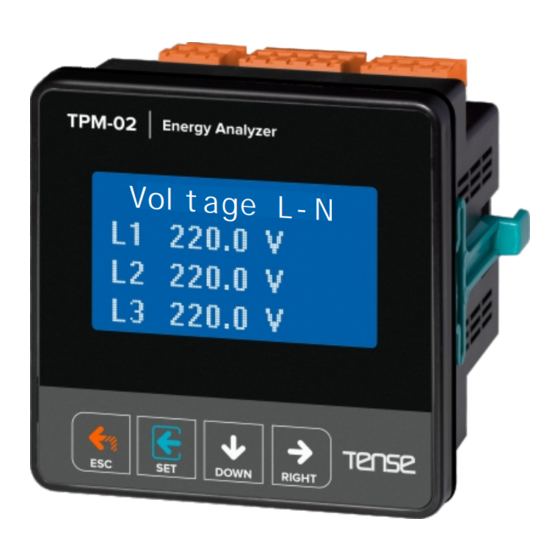

Tense Elektric Electronic Industry
ENERGY ANALYZER
TPM-02
V o l t a g e L - N
MADE IN TURKEY
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tense TPM-02
Summary of Contents for Tense TPM-02

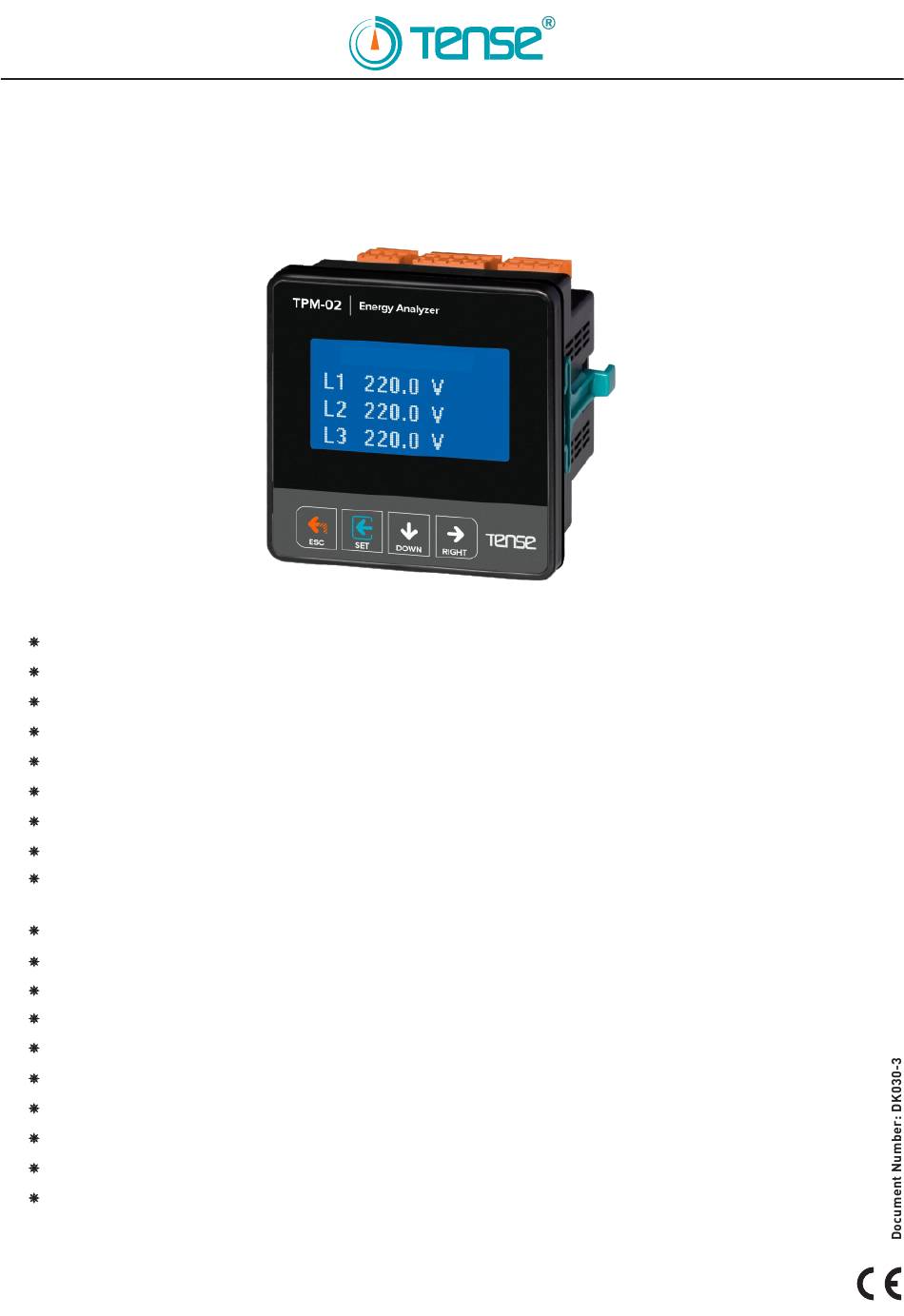

- Page 1 Tense Elektric Electronic Industry ENERGY ANALYZER TPM-02 V o l t a g e L - N EASY TO USE It measures up to 31rd voltage and current harmonics. 128 x 64 Graphic LCD 3-phase voltage and 3-phase current transformer.
- Page 2 1 - Connection Diagrams and Dimensions: 85-240VAC RS485 50/60Hz. <6VA C.T. Connections Voltage Inputs Load 3P4W connection type. 3 phase current and3 phase voltage and with neutral. 2 - Points to Take into Consideration in the Selection and Connection of Current Transformer: Be sure that the current transformer value is higher than the maximum current drawn from the system.
- Page 3 4 - Maintenance of the Device De-energize and disconnect the device. Clean the body of the device with a dry or damp-dry cloth. Do not use conductive or other chemical substances as a cleaning agent that can damage the device. After cleaning the device, make its connections and check whether it is working by energizing it.
-
Page 4: Password Set
-15 is displayed. The values herein baud:9600, party: no and stop bit: 1 are adjusted in conformity with the tense products. Put the sign (*) near the relevant value by using DOWN button to change any value . You can change the value by pressing UP button. - Page 5 15 - Remote Communication with ETH-MOD-T Figure-23 ETH-MOD-T Ethernet Cable Internet Modem / Server Reactive RJ-45 RJ-45 Connector Connector relay RS485 220V PC - Computer Energy Analyzer RS485 Only the energy analyzer or the reactive relay together with it can be connected for remote communication with ETH-MOD-T. Remote communication is provided through energy analyzer or reactive relay on www.tenseenerji.com (server) by using a modem connected to internet.
- Page 6 19 - Contact Information 19 - Contact Informations: Energy and Muratpaşa mah. Uluyol cad. Compensation Tracking System İşkent Sanayi Sitesi E-Blok 1.Kat www.tenseenerji.com BAYRAMPAŞA / İSTANBUL / TÜRKİYE Tel: 0212 578 04 38 - 48 | Fax: 0212 578 04 36 www.tense.com.tr info@tense.com.tr...
