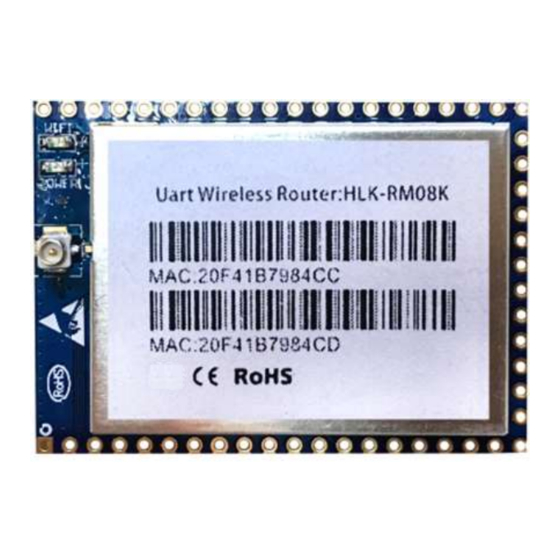

- Page 1 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 SHENZHEN HI- LINK ELECTRONIC CO.,LTD HLK-RM08K USER MANUAL UART to Ethernet Application Shenzhen Hi-Link Electronic Co.,Ltd...
- Page 2 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Note : The complete starter kit includes following items. HLK-RM08K module HLK-RM08K development board 2.4G 2DB antenna 5V 1000mA power adapters Network cable (If needed) Shenzhen Hi-Link Electronic Co.,Ltd...
- Page 3 APP to set up parameters, making the connection between UART and network. HLK-RM08K has stable performance and flexible use, meeting kinds of requirements of users. and strong technical supports could be provided. Also, it could be customized,such as WEB interface ,mobile phone app and so on.
- Page 4 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 3. Short press ESO button, start the configuration tool,choose the uart number then click search module. It will return at (:Found Device at COM7(115200)! in the text box.Click inquiry configuration to read the current parameters.
- Page 5 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Network IP : Remote IP does not work as server Port :TCP server set monitoring port. UART parameter: Change it as required Parameters configurations are as follows, Disable DHCP, configure it as static IP.
- Page 6 5. Data transmission between TCP and Serial port. Apply all the parameters, the module will reset. Or power on module again,connecting the net ports of PC and RM08K. Chose all the network cards, configure HLK-RM08K as follows, ping 192.168.16.254 :Start ----Run ----cmd...
- Page 7 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Set up serial configure tool and network testing tool, testing the data if could be sent. Then the serial port and ethernet could send data each other. 6. The configuration method of serial 1 is same as serial 0.
- Page 8 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Method 2 Via network port configuration Restore factory setting and set up the module, use the network cable to connect LAN 2 and PC. Configure PC as follows. ping 192.168.16.254 :Start----Run ---Cmd Shenzhen Hi-Link Electronic Co.,Ltd...
- Page 9 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Enter the site http://192.168.16.254, enter the user name and password admin, then transfer to the configuration page. Configure IP and DHCP, Click apply to wait for the module restarting. 3. Once the module restart,change the net cable from LAN2 to LAN 1 then refer to the manual from step 5 of method 1.
