- Page 1 SHENZHEN HI- LINK ELECTRONIC CO.,LTD HLK-RM08K USER MANUAL Bridge mode configuration Kindly note : The starter kit includes the following items.

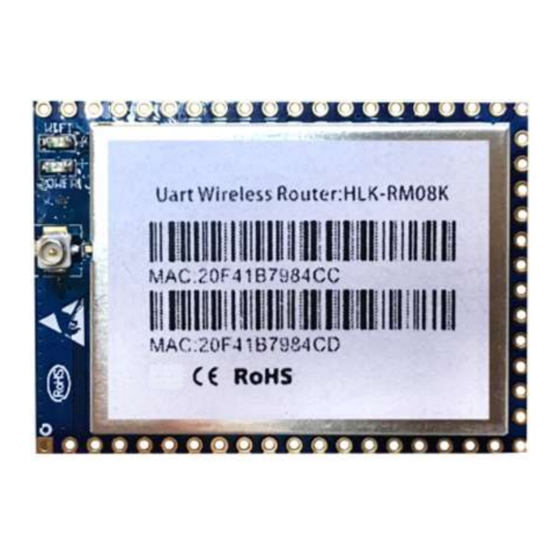

- Page 2 HLK-RM08K module HLK-RM08K development board 2.4G Antenna 5V 1000mA power adapter Net Cable（if needed） Brief introduction 一.
- Page 3 IP protocol stack, enabling the user serial port, Ethernet, wireless network (wifi) interface between the conversions. Through the HLK-RM08K module, the traditional serial devices do not need to change any configuration; data can be transmitted through the Internet network. Provide a quick solution for the user’s serial devices to transfer data via Ethernet.
- Page 4 Open web browser input http://192.168.16.254/wz.htm http://192.168.16.254/ser2net.htm (serial parameters interface).
- Page 5 深 圳 市 海 凌 科 电 子 有 限 公 司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Configure bridge mode at the router webpage interface http://192.168.16.254/wz.htm Choose the bridge mode Input the WIFI SSID and password of the...
- Page 6 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.ltd Tel:0755-83575155 Fax:0755-83575189 深 圳 市 海 凌 科 电 子 有 限 公 司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-83575155 Fax:0755-83575189 Set the module IP and router at same network segment. After module restart,then it could connect the internet with LAN and WAN. And the IP got is the one...
- Page 7 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.ltd Tel:0755-83575155 Fax:0755-83575189 But if needed, it could change the module’s IP into same network segment with upper IP. Note : In bridge mode,serial transparent transmission is working in the local network,could not transparent transmission to extra net.
