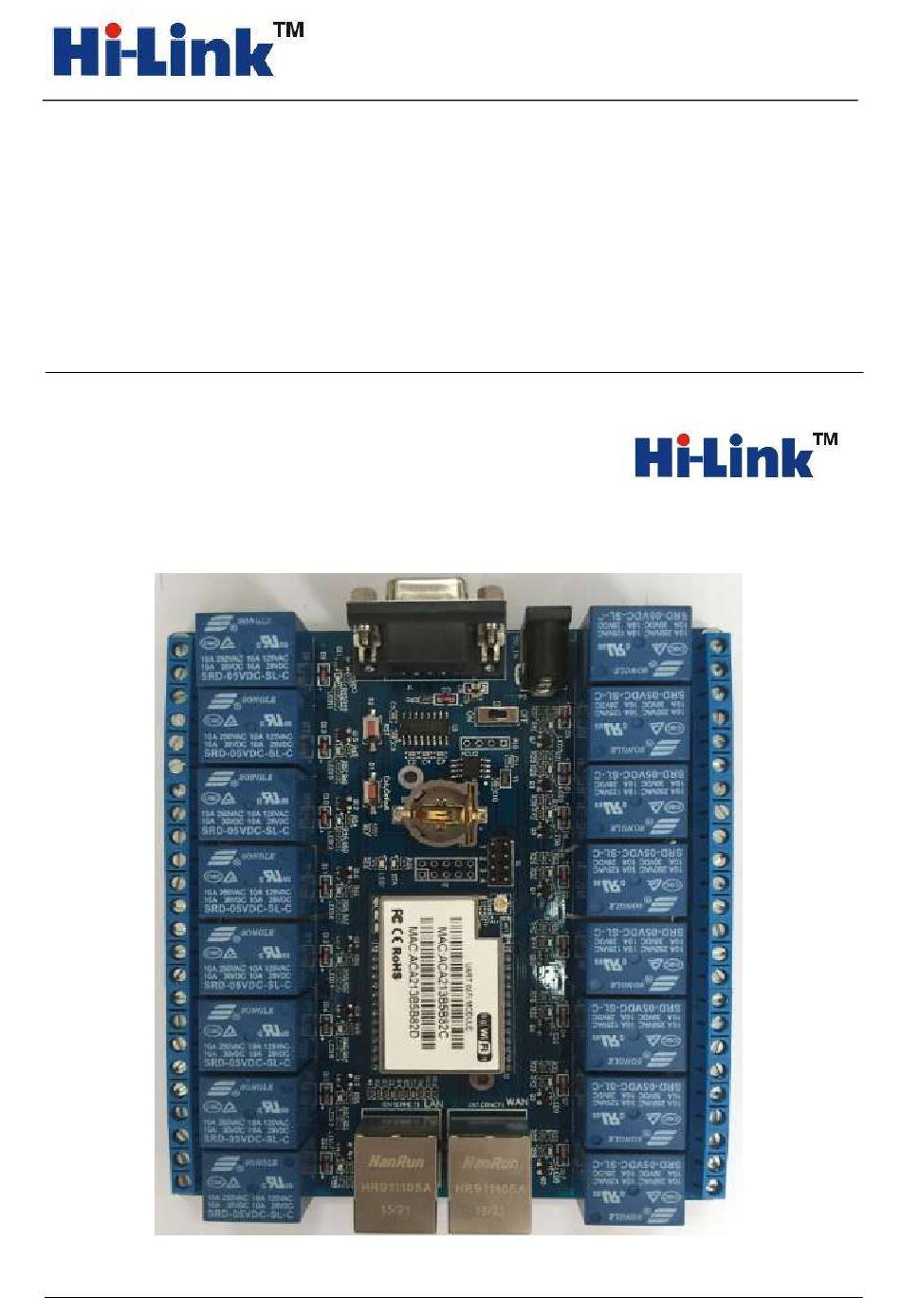

- Page 1 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 HLK-SW16 User Manual Serial to Ethernet Shenzhen Hi-Link electronic Co., LTD Shenzhen Hi-Link Electronic Co.,Ltd...
- Page 2 Tel:0755-23152658 Fax:0755-83575189 Summary HLK-SW16 is a new professional remote control terminal launched by Hi-Link electronic , is a realization of TCP through the gateway and establishes communication connection with the remote device, it can be based on without modifying the original protocol, to realize the connection of network client and equipment directly, save the development cycle, enhance the user experience.
- Page 3 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 Remote Web management Configuration file import and export Network management WEB software upgrade Serial to Ethernet Maximum transmission 500000bps rate TCP connection Max connection number>20 UDP connection Max connection number>20 1200~500000bps Serial baud rate...
- Page 4 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 Dimensions HLK-SW16 Dimension（TOP view） ： × × Note 19mm Shenzhen Hi-Link Electronic Co.,Ltd...

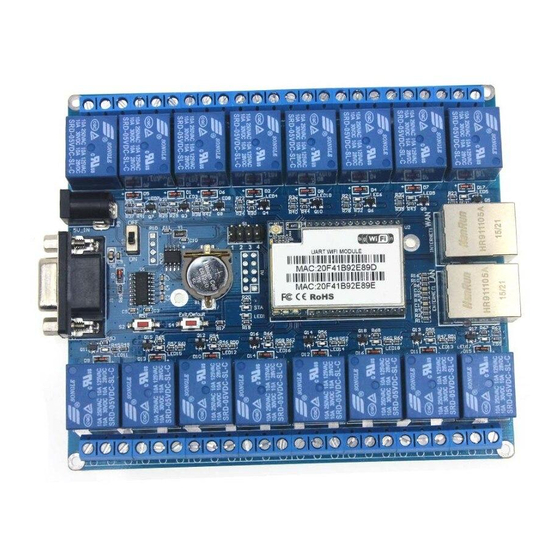

- Page 5 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 Hardware instruction Some features of based board are shown below : Time Battery Relay 5Vpower Power switch uart STA LED RM04 module Wifi led Indicator Binding POST HLK-SW16 STARTKIT Interface introduction Function Name Tag No.
- Page 6 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 function Binding Post P1-P8 16 way 220v，10A relay Indicates the connection status of the client and the server: ON: client and server has been connected Off: client and server is not connected...
- Page 7 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 Note: To ensure the normal operation, please ensure that you have bought our HLK-SW16 development kit. As shown below HLK-RM04 module P2P version HLK-SW16 based board 2.4G flexible antenna 5V 2000mA power supply...
- Page 8 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 Please connect the module well as the way shown in the followed picture: Please note the direction that the HLK-RM04 module plug in the carrier board! System principle. The whole system consists of server, terminal program and client components, as shown in fig.:...
- Page 9 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 1) server Receiving device and client registration, to assist the client to find equipment and establish the connection 2) device Automatically connect to the server after the device is started 3) the client Run the client will automatically connect to the server, to establish a connection to terminal equipment with the aid of a server.
- Page 10 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 (You can also use a computer or cell phone to connect module’s Wifi) Enter the 192.168.16.254/p2p.asp in your computer's web browser,enter the user name admin,password admin, click OK. To view account and password; at the same time, can change the password on this interface (account can not be modified).
- Page 11 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 ！！！） Note: the account and passwords are case sensitive 2.3 Open P2P software, enter the account number and password, and click Connect, as shown in the picture below： 1.Connection If SW16 module in the LAN, then the software will automatically connect to the module through Lan, if not , the software will automatically connect to the module through remote way .
- Page 12 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 Note: This picture shows is the PC side, If you use mobile client,just as same way 2.Connection Status Displays The lowermost interface displays the connection status. 3.Time Dispaly The bottom screen display items shows the current time 4.On and off...
- Page 13 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 Click the Advanced button to expand the interface,from where you can control corresponding properties through the button.Shown as below: 7.Modify button’s name For example,You want to change the Button 0 to T.V,firstly,you need to click on...
- Page 14 深圳市海凌科电子有限公司 Shenzhen Hi-Link Electronic Co.,Ltd Http://www.hlktech.com Tel:0755-23152658 Fax:0755-83575189 First choose the button you want,like 0,select timer ，then you can set timer function now.，if you want to set the time to 8am On Monday,set it firstly ，then click the add button ，Then you will...
