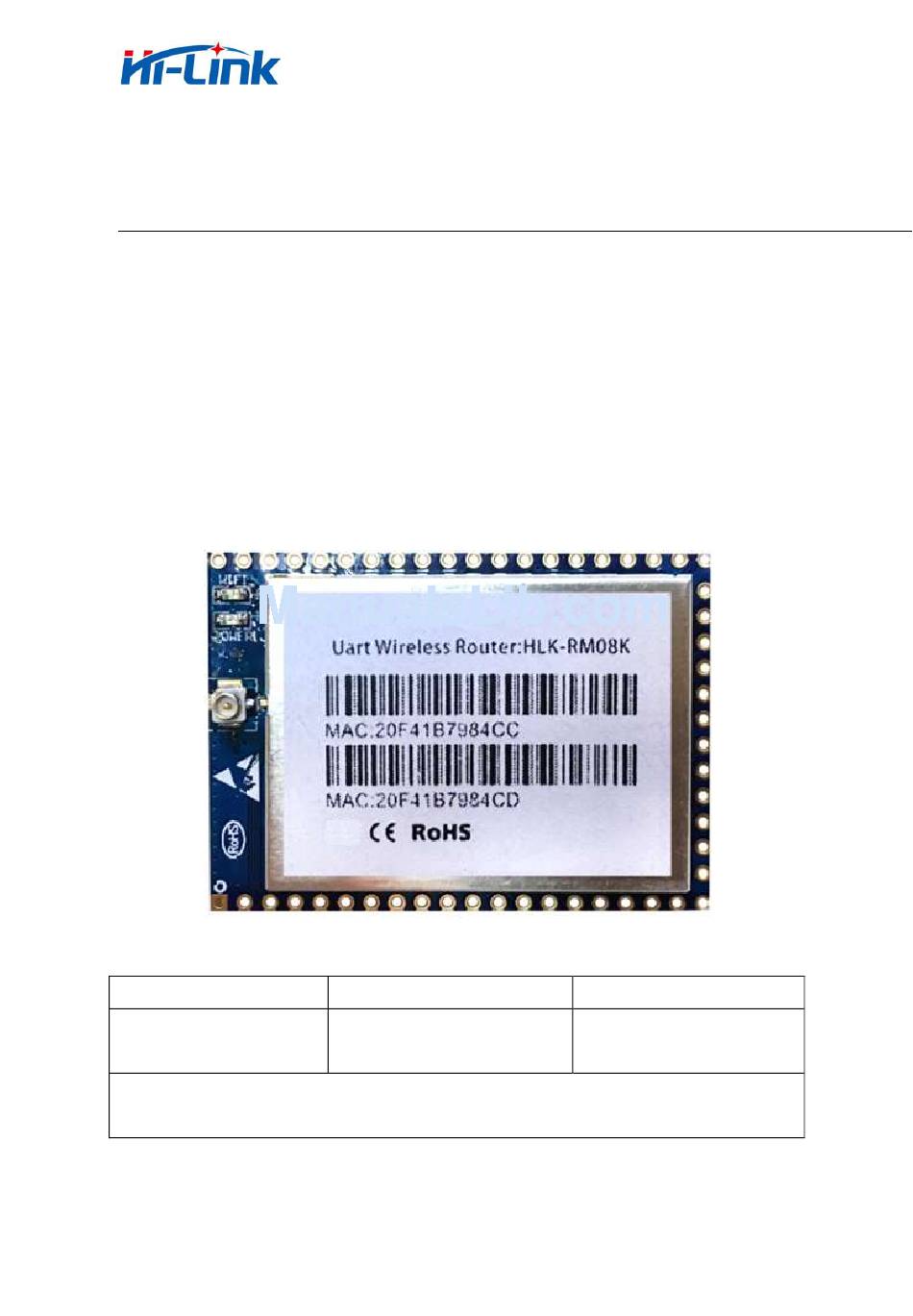

HLK-RM08K User Manual
Full Function Serial Network/Wireless Module
Contact：Sunny Shen
Skype：hlktech
Add:
3F,5# Building,Minxing Industrial Park,MinKang Rd
Minzhi,Longhua District,ShenZhen,China，518131
www.hlktech.net Email :sunny@hlktech.cn skype:hlktech
ETHERNET
WIFI
Email ： sunny@hlktech.cn Phone：86-15817488770
TEL
86-755-23152658-821
1
QQ:2859395931
Advertisement
Table of Contents
Related Manuals for Hi-Link HLK-RM08K
Summary of Contents for Hi-Link HLK-RM08K
- Page 1 Email :sunny@hlktech.cn skype:hlktech HLK-RM08K User Manual ETHERNET WIFI Full Function Serial Network/Wireless Module Email ： sunny@hlktech.cn Phone：86-15817488770 Contact：Sunny Shen Skype：hlktech QQ:2859395931 86-755-23152658-821 Add: 3F,5# Building,Minxing Industrial Park,MinKang Rd Minzhi,Longhua District,ShenZhen,China，518131...
- Page 2 www.hlktech.net Email :sunny@hlktech.cn skype:hlktech 1.BRIEF INTRODUCTION ..................3 2 HARDWARE EXPLANATION 2.1 MECHANICAL DIMENSIONS ..............3 2.2 PINS DEFINITION ................... 4,5,6 2.3 TYPICAL REFERENCE DESIGN ..............7 2.3.1 UART TO ETHERNET ................ 7 2.3.2 UART TO WIFI（AP OR STA） ............7 2.3.3 GATEWAY MODE OR REPEATER MODE........
-
Page 3: Brief Introduction

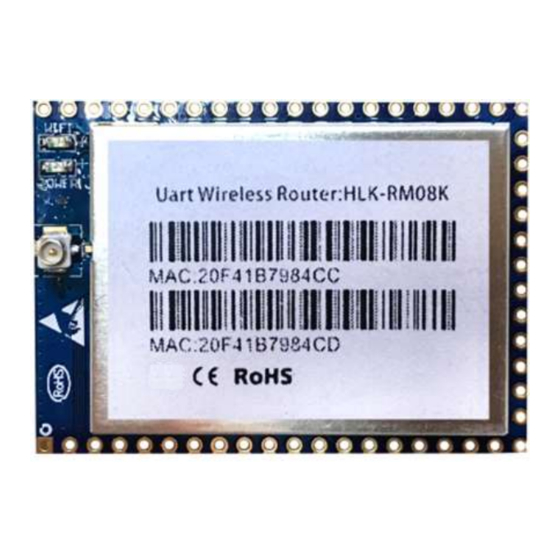

1. BRIEF INTRODUCTION HLK-RM08K is a new low-cost embedded UART-ETH-WIFI module (serial port - Ethernet - Wireless network) developed by Shenzhen Hi-Link (HK) co., Ltd. The product is a low power consumption WIFI module,supports EEE802.11b/g/n wir eless protocol with small size and smart use,ully transparent transmission UART module, b uilt-in TCP / IP protocol stack, enabling users short development cycle. -
Page 4: Pins Definition 4
www.hlktech.net Email :sunny@hlktech.cn skype:hlktech 2.2 Pin Definitions FUNCTION DIRECTION DESCRIPTION CTS1/G0 CTS1 Watchdog CTS0/G1 CTS0 RTS0/G2 RTS0 RES0 （Reserved） RES1 （Reserved） RES2 （Reserved） Power WLED_N WiFi LED( activate low VDD_O Power Out 3.3v OUTUP EL4/G3 ETH 4 LED RES3 （Reserved） RES4 （Reserved）... - Page 5 www.hlktech.net Email :sunny@hlktech.cn skype:hlktech RXN3/G17 RXN3 RXP4/G18 RXP4 RXN4/G19 RXN4 TXN0 TXN0 TXP0 TXP0 INTERRUPT （Reserved） RX1/PWM0 ELED0 ETH 0 LED( activate low Reset TX1/PWM1 GPIO20 （Reserved） POWER 5V INPUT EL1/G21 ETH 1 LED EL2/G22 ETH 2 LED EL3/G23 ETH 3 LED Power RES7 （Reserved）...
-
Page 6: Typical Reference Design
www.hlktech.net Email :sunny@hlktech.cn skype:hlktech Parameter storage : RCFG：The parameters in the memory. SCFG：General parameters. CCFG：Save To C Instructions to save parameters. FCFG：Factory factory Settings. Users can't modify. 1. Power on，module read SCFG to RCFG from flash. 2. Save instructions RCFG to SCFG. 3. -
Page 7: Technical Specification
www.hlktech.net Email :sunny@hlktech.cn skype:hlktech 2.3.2 USRT TO WIFI（AP OR STA） 2.3.3 GATAWAY MODE OR REPEATER MODE Please refer to diagram of test board. 3. TECHNICAL SPECIFICATION Wireless standard : IEEE 802.11n、IEEE 802.11g、IEEE 802.11b Network standard Wired standard : IEEE 802.3、IEEE 802.3u 11n:Max150Mbps 11g:Max54Mbps Wireless transmission rate... - Page 8 www.hlktech.net Email :sunny@hlktech.cn skype:hlktech STA/AP/Wireless Router WIFI working mode Repeater mode Support wireless bridge Wireless MAC address filtering Wireless switch security function Wireless security 64/128/152bit WEP encryption WPA-PSK/WPA2-PSK、WPA-TKIP/WPA2-TKIPsecurity mechanism Web interface management Network management Configure file lead-in/out WEB interface software upgrade UART to network Dual UART transparent transmission,two uart ports work individually TCP socket...
-
Page 9: Detailed Functions
www.hlktech.net Email :sunny@hlktech.cn skype:hlktech 4. DETAILED FUNCTIONS 4.1 UART MODE 4.1.1 UART TO ETHERNET Diagram 2. UART to ETH In this mode，ETH0（WAN port）enabled. Closed. Ethernet could configure as dynamic IP ( DHCP ) ,also could configure as static IP(static). 4.1.2 UART TO WIFI STA Diagram 3. -
Page 10: Uart To Wifi Ap
In this mode, WIFI enabled, working in AP mode, Ethernet closed. In this mode, WIFI device could connect module, as one working in WIFI local area net. 4.2 NETWORK MODE 4.2.1 Gateway mode (defaul mode) HLK-RM08K ROUTER COM0 COM0 COM1... -
Page 11: Repeater Mode
IP ( static DHCP), Module’s 4 LAN port could connect PC directly, PC can directly obtain IP addresses from module; Module acts as AP now, clients could connect its WIFI directly. 4.2.2 PEPEATAR MODE WIFI HLK-RM08K WiFi WIFI AP client PC/SWITCH ETH PORT Diagram 6. -
Page 12: Version Update Instructions
www.hlktech.net Email :sunny@hlktech.cn skype:hlktech Module is functioned as PBX. 5.VERSION UPDATE INSTRUCTIONS NOTE TIME VERSION NO. MODIFIER V1.0 KAVIN 2016.01.13 USER MANUAL FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
