MaxLite TRK WS Series Operating Instructions

Operating Instructions
MaxLite LED TROFFER RETROFIT KIT WS Series (2x2 & 2x4)
®
General Safety Information
• To reduce the risk of death, personal injury or property damage from fire,
cuts/abrasions, and other hazards read all warnings and instructions
included with and on the fixture box and all fixture labels.
• Before installing, servicing, or performing routine maintenance upon this
equipment, follow these general precautions.
• Commercial installation, service and maintenance of luminaires should
be performed by a qualified licensed electrician.
• For Residential installation: If you are unsure about the installation or
maintenance of the luminaires, consult a qualified licensed electrician
and check your local electrical code.
• DO NOT INSTALL DAMAGED PRODUCT!
• This fixture is intended to be connected to a properly installed and grounded UL Listed troffer housing. WARNING: RISK OF FIRE OR ELECTRIC SHOCK
• Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label information.
• Make all electrical and grounded connections in accordance with the National Electrical Code and any
applicable local code requirements.
• All wiring connections should be capped with UL approved wire connectors.
• Install this kit only in luminaires that have the construction features and dimensions shown in the
photographs and/or drawings and where the input rating of the retrofit kit does not exceed the input
rating of the luminaire.
• Do not make or alter any open holes in an enclosure of wiring or electrical components during kit
installation.
• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
• The electrical rating of these products are 120-277 Vac, the installer must determine whether they have
120-277 V at the luminaire before installation.
• LED Retrofit Kit installation requires knowledge of luminaires electrical systems. If not qualified, do not
attempt installation. Contact a qualified electrician.
• Luminaire wiring and electrical parts may be damaged when drilling for installation of LED retrofit kit.
Check for enclosed wiring and components.
CAUTION: RISK OF INJURY
• Wear gloves and safety glasses at all times when removing luminaire from carton, installing,
servicing or performing maintenance.
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be
hazardous to children.
CAUTION: RISK OF FIRE
• Keep combustible and other materials that can burn away from
luminaire and lamp/lens.
• MIN 90°C SUPPLY CONDUCTORS.
Operating characteristic:
Voltage input: 120/277V 50/60 Hz
Compatible Housing: Operating temp: -40°F to 104°F
2' x 2' - 24.02" (610 mm) by 23.94" (608 mm) by 3.07" (78 mm) high
2' x 4' - 48.03" (1220 mm) by 23.94" (608 mm) by 3.07" (78 mm) high
Models: TRK Series
© Copyright 2022. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: 800-555-5629 Fax: 973-244-7333 Email: info@maxlite.com

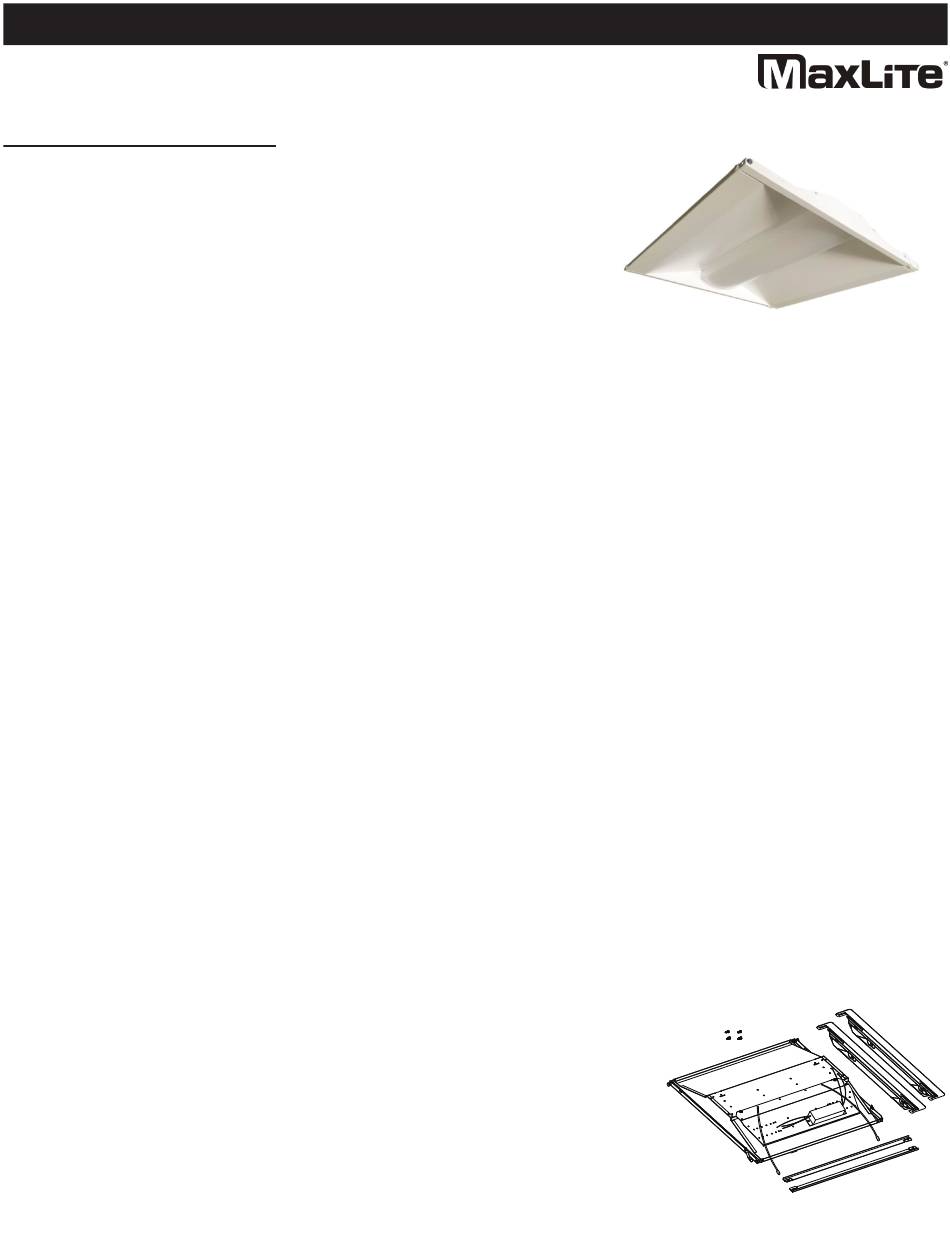

TRK WS Series
Picture is for illustration purposes only. Your
model may vary and may not be identical to
the fixture purchased.
A: End Plates - 2pcs
Parts:
B: Side Plates - 2pcs
C: Door Assembly Body - 1pc
D: Self-tapping Screws - 4pcs
D
C
A
B
Page: 1
REV: 04/05/22
