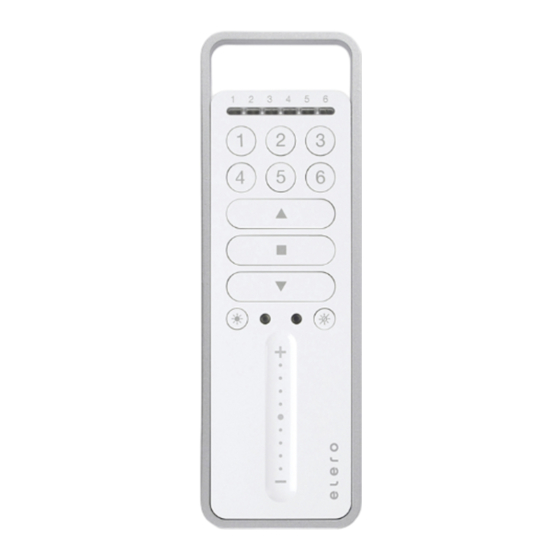

- Page 1 FCC Documentation VarioCom Slide 915 Technical Documentation VarioCom Slide 915 (13 buttons handled Transmitter with Slider) elero Antriebstechnik GmbH Maybachstraße 30 73278 Schlierbach (Germany)
- Page 2 FCC Documentation VarioCom Slide 915 Table of content Overview ............................3 Description of the product ......................3 Technical Schemes ........................3 Technical specifications ....................... 4 Instruction Manual ........................4 Physical Dimensions ........................5 Label ............................6 Type of Label ........................6 Label of all product variants ....................
- Page 3 FCC Documentation VarioCom Slide 915 1. Overview The product has the function to control roller shutters, venetian blinds or awning in 6 channels. To control the actor there are push buttons or a slider. The channels are built with a different code and not with different frequencies.
- Page 4 FCC Documentation VarioCom Slide 915 4. Technical specifications Center frequency: 918.3 MHz Deviation: 35 kHz Oscillator: 26MHz Modulation: GFSK Data rate: 76.8 kbps Data coding: NRZ Code: a train of pulses lasting 7.8ms in 100ms ...
- Page 5 FCC Documentation VarioCom Slide 915 6. Physical Dimensions elero GmbH 73278 Schlierbach T +49 7025 13-01 info@elero.de Seite 5 von 7 Maybachtraße 30 Deutschland/Germany F +49 7025 13-212 www.elero.com...
- Page 6 FCC Documentation VarioCom Slide 915 7. Label 7.1 Type of Label Metal foil label 32 x 22mm 7.2 Label of all product variants 7.2.1 VarioComSlide 7.2.2 VarioCom 7.2.3 LumeroCom elero GmbH 73278 Schlierbach T +49 7025 13-01 info@elero.de Seite 6 von 7 Maybachtraße 30...
- Page 7 FCC Documentation VarioCom Slide 915 7.2.4 MonoCom Slide 7.2.5 MonoCom 7.3 Placement of Label Position of Label elero GmbH 73278 Schlierbach T +49 7025 13-01 info@elero.de Seite 7 von 7 Maybachtraße 30 Deutschland/Germany F +49 7025 13-212 www.elero.com...
