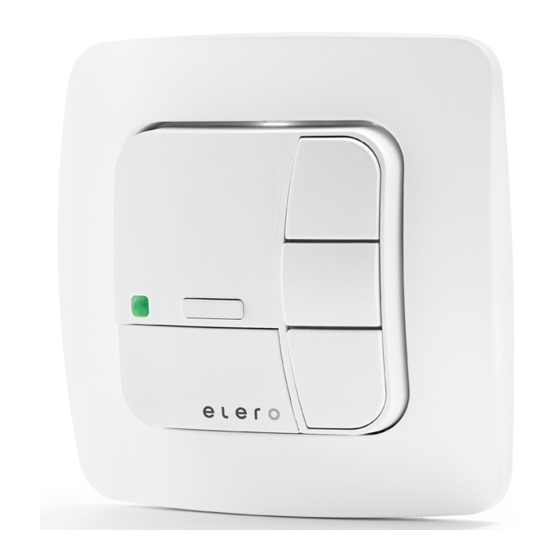

elero UniTec-868 Operating Instructions Manual
Hide thumbs
Also See for UniTec-868:
- Operating instructions manual (8 pages) ,
- Operating instructions (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for elero UniTec-868
Summary of Contents for elero UniTec-868
- Page 1 UniTec-868, UniTec-915 Nr. 28 330 0006, Nr. 28 330 0906 Operating instructions (translation) Please take care of the operating instructions! 181006706_EN_0715...
-
Page 2: Table Of Contents
Contents Contents Warning advice Device explanation ..............3 Deleting a transmitter/channel ..........21 Safety instructions ..............4 Deleting all transmitters ............21 Safety instructions/Exclusion of liability .........4 Technical data ................21 Scope of supply/General information ........6 Replacing the battery ..............22 Intended use ................6 Cleaning ..................22 Safety instructions for radio operation ........7 Disposal..................22 Mounting of the wall bracket ............8... -
Page 3: Device Explanation
(all-purpose) Exclusion of liability: It is essential to observe these operating instructions, if the UniTec-868 /UniTec-915 is to be used safely and if the vari- ous product characteristics and performance features are to be achieved. elero GmbH assumes no liability for personal injuries, property damages and financial losses that arise from non-observance of the operating instructions. -
Page 4: Scope Of Supply/General Information
General information an improper manner, or if it is incorrectly installed or operated, there is a risk of damage to persons and You can control one or more receivers with the UniTec-868 / property. UniTec-915 transmitter. • The device contains small parts which can be swal- The UniTec-868 / UniTec-915 can be operated manually at any lowed. -
Page 5: Safety Instructions For Radio Operation
Instructions for radio operation Mounting of the wall bracket Warning advice Safety instructions for radio operation Mounting of the wall bracket NOTE! CAUTION! Before installation in the required assembly position, Observe the following safety instructions for radio check that the transmitter and receiver are function- operation! ing properly. -
Page 6: Explanation Of Functions
Explanation of functions Explanation of functions Warning advice Explanation of functions Note Do not press the P button until the receivers are in programming Bidirectional radio system mode. The active channel decides for a radio system during A bidirectional radio system transmits radio signals to radio receiv- programming. -
Page 7: Group Control
Any number of receivers can be programmed and con- orange green Transmitter functions bidirectionally, trolled in the channel. Operating mode Automatic The UniTec-868 / UniTec-915 can be programmed into several receivers. orange Transmitter functions bidirectionally, Operating mode Manual green... -
Page 8: End Position/Intermediate Position
The receiver is now in programming mode for about 5 minutes. The end position is the point where the roller shutter/venetian blind 2. Stand with the UniTec-868 / UniTec-915 in front of the shutter/ is in the upper or lower position. In this position, the sun protection blind. -
Page 9: Programming Additional Transmitters/Channels
Programming additional transmitters/chanels Programming additional transmitters/channels Warning advice Programming additional transmitters/channels Programming additional transmitters NOTE! To programme additional transmitters in one receiver, please pro- ceed as follows: If several receivers are connected to the same feed 1. Press the UP-, DOWN- and the programming button P simulta- line, then all are simultaneously in programming neously (for 3 seconds). -
Page 10: Intermediate Positions For Roller Shutters/Awnings/ Venetian Blinds
Intermediate positions for Intermediate positions for roller shutter/awning/venetian blind Warning advice roller shutter/awning/venetian blind Roller shutter Awning Venetian blind 2. Press the STOP button in addition. The shutter/blind stops. You have programmed the position ventilation slots/tilting/fabric tightening. Pos ▼ Intermediate position Intermediate position Intermediate position Approaching Pos ▼... -
Page 11: Approaching The End Positions
Intermediate positions for Approaching the end positions roller shutter / awning / venetian blind roller shutter / awning / venetian blind Deleting Pos ▼ (intermediate position) PREREQUISITE! PREREQUISITE! The transmitter/transmitter channel is programmed. The end positions of the drive have been set. The transmitter is programmed. -
Page 12: Deleting A Transmitter/Channel
Changing the batteries/ cleaning / disposal Deleting a transmitter / Technical data Warning advice Deleting a transmitter/channel Replacing the battery NOTE! 1. Press the STOP button and also the programming button P (below the cover). • Replace batteries only with the identical type (1 x CR 2032). -
Page 13: Notes On Repair/Repair Address
– Preceding unusual occurences indicator lamp 2. Transmitter is not pro- 2. Program the stays on. grammed into receiver. transmitter. The automac The UniTec-868/ Switch the Repair address: commands are UniTec-915 is set on UniTec-868/ not executed. „MANUAL“ mode UniTec-915 into (red). - Page 14 Warning advice Certification FCC / IC EC declaration of conformity elero GmbH hereby declares that the UniTec-915 complies with the basic prerequisites and the other relevant provisions of the EC directives. The complete declaration of conformity can be found in the download area of our website.
- Page 15 GmbH Antriebstechnik Linsenhofer Str. 65 D-72660 Beuren Fon: +49 7025 13-01 Fax: +49 7025 13-212 info@elero.de www.elero.com We reserve the right to make technical changes. 309312 02...
