Summary of Contents for elero VarioTel
- Page 1 VarioTel Nr. 28 241.0001 Operating Instructions Please keep the instructions in a safe place. elero Latinoamérica Av. Brasil 2476 Of. 202 11300 Montevideo URUGUAY paul.riezler@elero.com www.elero.com 309402 Nr. 18 100.4801/0204...
-
Page 2: Table Of Contents
Explanation of functions ........GB- 6 • Use unmodified elero original parts only. -
Page 3: Explanation Of Buttons

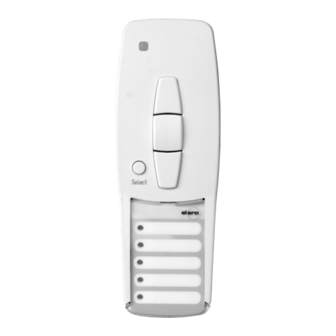

Explanation of buttons General information/Designated use General information The VarioTel handheld transmitter can be used to operate up Transmission to five receivers individually or altogether. control light The VarioTel device is characterised by its user-friendly operation. Designated use v UP button The VarioTel may be used to operate roller shutters/sun protection systems only. -
Page 4: Note
Group control refers to the operation of one or more receivers at the same time. The group selected is controlled via a control command. The VarioTel is used to operate groups via five radio channels. Select button The Select button may be used to select and programme up to 5 channels. -
Page 5: Programming Radio Channel Settings
Programming radio channel settings Programming radio channel settings Programming transmitter/channel Note: If more than one receiver is connected to the same supply lead, all of these will be in programming mode Prerequisite: The receiver must be installed. simultaneously. The shutters/awnings/venetian blinds will 1. -
Page 6: Intermediate Position For Roller Shutter/Awning
Intermediate position for roller Intermediate position for roller shutter/awning/venetian blind shutter/awning/venetian blind Adjustment to Pos B Roller shutter Awning Venetian blind Prerequisite: The transmitter has been programmed. 1. Press the UP button twice in quick succession. 2. The drive will adjust the roller shutter/awning/venetian blind into the stored intermediate position. -
Page 7: Deleting Radio Channel Settings
General declaration of conformity: The maximum radio range is 25 m indoors and 350 m outdoors. The company elero GmbH hereby declares that the VarioTel handheld transmitter complies with the basic requirements and other relevant regulations of the EC Directive 1999/5/EG.
