RTKA214250DE0020BU
The RTKA214250DE0020BU evaluation board
provides a simple platform to evaluate the 3×3mm
8 Ld DFN and SOIC version of the
same board.
The RAA214250 is a low-dropout linear voltage
regulator that operates from 2.5V to 20V and provides
up to 500mA of output current with a typical dropout
of 269mV. The output voltage is adjustable with
external feedback resistors anywhere from 1.224V to
18V.
R16UZ0023EU0100 Rev.1.00
Sep 23, 2021
RAA214250
V
IN
2.5V – 20V
C
C
1
2
10µF
1µF
V
EN
2.5V – 20V

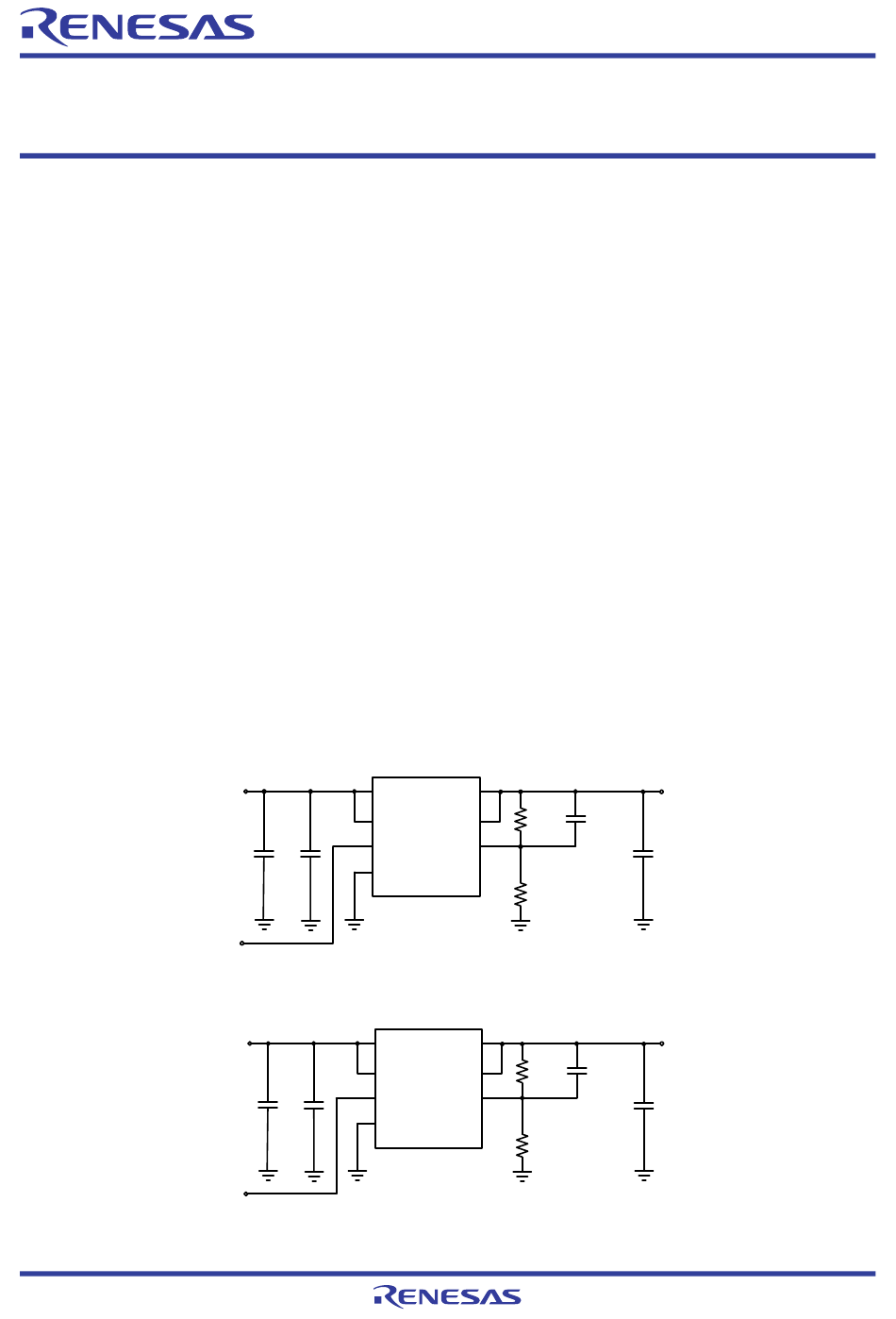

Figure 1. Block Diagram - SOIC
V
IN
2.5V – 20V
C3
C4
10µF
1µF
V
EN
2.5V – 20V
Figure 2. Block Diagram - DFN
Features
▪ Wide input voltage range: 2.5V to 20V
on the
▪ Adjustable output voltage range: 1.224 to 18V with
±2% accuracy
▪ Excellent line and load regulation
▪ Stable with MLCC output capacitor as low as 2.2µF
▪ Integrated Fault protections including thermal
shutdown and short-circuit current limit with
foldback
▪ 3mm×3mm DFN and SOIC can be evaluated on
the same board
Specifications
This board is specified for the following operating
conditions:
▪ V
supply: 2.5V to 20V
IN
▪ V
adjustable by changing the feedback resistor
OUT
divider.
▪ Low Dropout of 269mV at 500mA
▪ Short Circuit Current Limit Protection with fold-back
at higher input voltages
VIN
VOUT
R
VIN
VOUT
100kΩ
VEN
ADJ
GND
NC
RAA214250
R
57.6kΩ
VIN
VOUT
R3
VIN
VOUT
100kΩ
VEN
ADJ
GND
NC
RAA214250
R4
57.6kΩ
Evaluation Board Manual
V
OUT
3.3V,
I
OUT ( MAX)
C
500mA
6
1
22pF
(optional)
C
5
4.7µF
2
V
OUT
3.3V,
I
C8
OUT ( MAX)
500mA
22pF
(optional)
C7
4.7µF
© 2021 Renesas Electronics
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTKA214250DE0020BU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Renesas RTKA214250DE0020BU

  • Page 1 Evaluation Board Manual RTKA214250DE0020BU Features The RTKA214250DE0020BU evaluation board provides a simple platform to evaluate the 3×3mm ▪ Wide input voltage range: 2.5V to 20V 8 Ld DFN and SOIC version of the RAA214250 on the ▪ Adjustable output voltage range: 1.224 to 18V with same board.
  • Page 2: Table Of Contents

    RTKA214250DE0020BU Evaluation Board Manual Contents Functional Description ..............3 Adjusting The Output Voltage .
  • Page 3: Functional Description

    RTKA214250DE0020BU Evaluation Board Manual Functional Description The RTKA214250DE0010BU evaluation board provides a simple platform to evaluate the features of the RAA214250 LDO and help characterize important critical performance parameters. The evaluation board is functionally optimized to allow efficient operation up to the maximum output current of 500mA.
  • Page 4: Using The Feed-Forward Capacitor

    RTKA214250DE0020BU Evaluation Board Manual Similarly, the R and R resistors are calculated for any target output voltage by rearranging Equation 1 to get Equation 2 and solving for RF.    OUT TARGET  (EQ. 2)  -------------------------------------------- 1 –...
  • Page 5: Enabling And Disabling The Device

    RTKA214250DE0020BU Evaluation Board Manual Table 2. Recommended R and R Feedback Resistor Values for Common Voltage Rails (Cont.) (kΩ) (kΩ) (pF) Error (%) OUT(TARGET) 57.6 57.6 57.6 -0.1 57.6 57.6 -0.7 57.6 Enabling and Disabling the Device The evaluation board has a test point connected to the device EN pin for both the SOIC and DFN package options, which means this pin is floating.
  • Page 6: Board Design

    RTKA214250DE0020BU Evaluation Board Manual Board Design Figure 6. RTKA214250DE0020BU Evaluation Board Layout Guidelines A proper PCB layout is important to achieve expected performance. Consideration should be taken when placing the components and routing the trace to minimize the ground impedance, and keep the parasitic inductance low.
  • Page 7: Schematic Diagrams

    VOUT UNNAM ED_3_RAA214250_I515_7 UNNAM ED_3_RAA214250_I515_2 VOUT_U1_TP1 VOUT UNNAM ED_3_RAA214250_I515_6 UNNAM ED_3_RAA214250_I515_3 VOUT_U1 GND_U1_OUT1 RAA214250GNP GND_U1_IN1 EN_U1 GND_IN_TP1 VIN_IN_TP2 VIN_U2 UNNAM ED_3_RAA214250_I518_1 VOUT UNNAM ED_3_RAA214250_I518_7 VOUT VOUT_U2_TP2 UNNAM ED_3_RAA214250_I518_6 UNNAM ED_3_RAA214250_I518_3 VOUT_U2 GND_U2_OUT1 RAA214250GSP GND_U2_IN1 EN_U2 GND_IN_TP2 Figure 7. RTKA214250DE0020BU Schematic...
  • Page 8: Bill Of Materials

    RTKA214250DE0020BU Evaluation Board Manual Bill of Materials Reference Designator Description Manufacturer Manufacturer Part PWB-PCB, Imagineering Inc RTKA214250DE0020BURVAPCB RTKA214250DE0020BU, REVA, ROHS C6, C8 CAP, SMD, 0603, 22pF, 50V, Various Generic 10%, X7R, ROHS C2, C4 CAP, SMD, 0805, 1.0µF, 50V, Murata...
  • Page 9: Board Layout

    RTKA214250DE0020BU Evaluation Board Manual Board Layout Figure 8. Top Layer Silkscreen Figure 9. Top Layer Figure 10. Bottom Layer R16UZ0023EU0100 Rev.1.00 Page 9 Sep 23, 2021...
  • Page 10: Typical Performance Graphs

    RTKA214250DE0020BU Evaluation Board Manual Typical Performance Graphs 10mA 50mA -40°C 0°C 25°C 85°C 125°C 100mA 300mA 500mA 10.0 12.5 15.0 17.5 20.0 12.5 17.5 Input Voltage (V) Input Voltage (V) Figure 12. Ground Current vs Input Voltage for Various Figure 11. Dropout Voltage vs Input Voltage for Various...
