RTKA214020DE0010BU
Evaluation Board

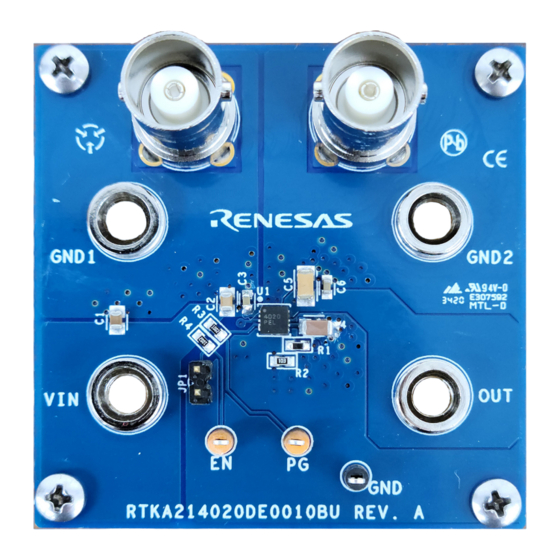

The RTKA214020DE0010BU evaluation board provides a simple platform to evaluate the RAA214020. It contains
all the important circuitry needed to characterize critical performance parameters.
The
RAA214020
is a low noise, high PSRR, low dropout voltage regulator. It accepts an input voltage range of
2.7V to 5.5V and the output voltage can be programmed from 0.9V to V
divider feedback network. The device can source a load current of up to 2A and has an output voltage accuracy of
±1.25% over line, load, and temperature.
Key Features
• Input voltage range: 2.7V to 5.5V
• Output Voltage adjustable range: 0.9V to V
• Convenient shutdown mode function using jumper JP1
• Power-Good (PG) indication test point
Specifications
This board has been optimized for the following operating conditions:
• V
range from 2.7V to 5.5V
IN
• V
adjustable from 0.9V to V
OUT
• Low dropout: 540mV at 3.3V and 2A (maximum)
• High PSRR for V
HEADROOM
○ 100kHz: 56dB at 2A and 77dB at 500mA
○ 1MHz: 50dB at 2A and 57dB at 500mA
Ordering Information
Part Number
RTKA214020DE0010BU
R16UZ0014EU0200 Rev.2.0
Jul 20, 2021
- V
IN
DROPOUT
-V
IN
DROPOUT
= 1.7V:
RAA214020 evaluation board
User Manual
-V
by means of a resistor
IN
DROPOUT
Description
© 2020 Renesas Electronics
Page 1 of 9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Renesas RTKA214020DE0010BU
Summary of Contents for Renesas RTKA214020DE0010BU
- Page 1 User Manual RTKA214020DE0010BU Evaluation Board The RTKA214020DE0010BU evaluation board provides a simple platform to evaluate the RAA214020. It contains all the important circuitry needed to characterize critical performance parameters. RAA214020 is a low noise, high PSRR, low dropout voltage regulator. It accepts an input voltage range of 2.7V to 5.5V and the output voltage can be programmed from 0.9V to V...
-
Page 2: Table Of Contents
RTKA214020DE0010BU Evaluation Board ........ -
Page 3: Functional Description
1. Functional Description Functional Description The RTKA214020DE0010BU evaluation board provides a simple platform to demonstrate the features of the RAA214020 low-noise, high PSRR LDO and help characterize important critical performance parameters. The evaluation board is functionally optimized to allow efficient operation up to the maximum output current of 2A. -
Page 4: Setting Noise Performance
RTKA214020DE0010BU 1. Functional Description Setting Noise Performance For low-noise applications, a 1µF C capacitor is optimal. Larger capacitor values can be used with little benefit in lowering the internally generated output voltage noise for frequencies above 10Hz. Quick Start Guide 1. -
Page 5: Board Design
The trace for FB must be away from noisy planes and traces. The large 1.6mmx2mm thermal pad under the RAA214020 is connected to a large ground copper plane on the bottom layer for effective thermal dissipation. RTKA214020DE0010BU Evaluation Board Figure 2. RTKA214020DE0010BU Evaluation Board Schematic Figure 3. RTKA214020DE0010BU Schematic R16UZ0014EU0200 Rev.2.0... -
Page 6: Bill Of Materials
RTKA214020DE0010BU 2. Board Design Bill of Materials Reference Designator Description Manufacturer Manufacturer Part Number TP1, TP2 Test Point Turret 0.150 Pad 0.100 Thole Keystone 1514-2 BNC1, BNC2 Silver Plated 50Ω PCB Mount Receptacle Amphenol 31-5329-51RFX Miniature White Test Point 0.100 Pad 0.040 Thole... - Page 7 RTKA214020DE0010BU 2. Board Design Figure 6. Bottom Layer R16UZ0014EU0200 Rev.2.0 Page 7 of 9 Jul 20, 2021...
-
Page 8: Typical Performance Curves
RTKA214020DE0010BU 3. Typical Performance Curves Typical Performance Curves 100,000 10,000 10mA, 6.6μVRMS 100nF, 6.8μVRMS 100mA, 6.3μVRMS 10,000 1μF, 6.4μVRMS 1,000 500mA, 6.2μVRMS 10μF, 6.4μVRMS 1,000 1A, 6.2μVRMS 2A, 6.4μVRMS 100k 100k Frequency (Hz) Frequency (Hz) Figure 8. Output Noise vs Frequency for Various I Figure 7. -
Page 9: Revision History
Description Jul 20, 2021 Removed Related literature and added link to description on page 1. Updated File number from X0115610 to R16UZ0014EU0200 (Renesas format). Added TOC. Updated last two specifications bullets (sub bullets) on page 1. Replaced the Setting the Output Voltage with the Adjusting the Output Voltage section on page 3. - Page 10 Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
