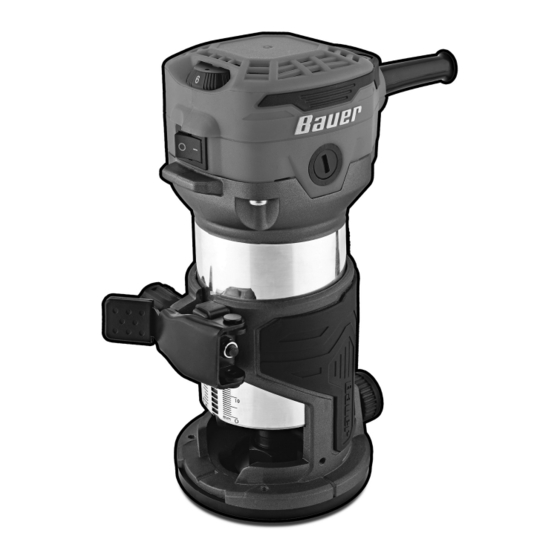

Bauer 19121E-B Owner's Manual

Variable speed compact router
Hide thumbs Also See for 19121E-B:

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference.
VARIABLE SPEED
COMPACT ROUTER
email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1‑888‑866‑5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
19121E-B
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
23d
58253

Advertisement

loading

Related Manuals for Bauer 19121E-B

Summary of Contents for Bauer 19121E-B

  • Page 1 Write the product’s serial number in the back of the manual (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. 19121E-B VARIABLE SPEED COMPACT ROUTER Visit our website at: http://www.harborfreight.com...

  • Page 2: Table Of Contents

    table of contents Safety ................2 Operation ..............8 Specifications ............7 Maintenance .............12 Setup .................7 Warranty ..............15 WarninG SyMBOLS anD DeFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

  • Page 3: Safety

    b. avoid body contact with earthed or h. Do not let familiarity gained from frequent grounded surfaces, such as pipes, use of tools allow you to become radiators, ranges and refrigerators. complacent and ignore tool safety There is an increased risk of electric shock principles.
  • Page 4 c. Disconnect the plug from the power b. use clamps or another practical way source and/or remove the battery pack, to secure and support the workpiece if detachable, from the power tool before to a stable platform. Holding the work making any adjustments, changing by your hand or against the body leaves it accessories, or storing power tools.
  • Page 5 Grounding tO preVent eLectric SHOcK anD DeatH FrOM incOrrect GrOunDinG Wire cOnnectiOn: check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the tool. never remove the grounding prong from the plug.
  • Page 6 extension cords 1. Grounded tools require a three wire extension cord. 7. Make sure the extension cord is properly wired Double Insulated tools can use either and in good electrical condition. Always replace a two or three wire extension cord. a damaged extension cord or have it repaired by a qualified electrician before using it.

  • Page 7: Specifications

    Specifications Electrical Rating 120  V AC / 60  H z / 6.5  A Load Speed 10,000  –   3 0,000/min Collet Size 1/4" Max. Accessory Diameter 1‑3/8″ Setup - Before use: read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product.

  • Page 8: Operation

    Operating instructions read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. tool Set up tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: Make sure that the power Switch is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.
  • Page 9 installing the edge Guide Use the Edge Guide to make cuts parallel to the edge of a workpiece, or following a guide clamped onto the workpiece. 1. Loosen Edge Guide Knob, then install Edge Guide with Fence facing inward and down. 2.
  • Page 10 circle cutting Use the center hole in the Fence as a pivot point when cutting circles. 1. Install Fence according to Setting up a Temporary Guide. 2. Loosen Fence Knob, set distance from center hole in Fence to far edge of bit, equal to radius of circle. 3.
  • Page 11 General Operating instructions 1. Install Edge Guide as necessary. 11. When using the Fence: Cut parallel to edge of workpiece with Fence following edge. 2. Adjust cutting depth. 12. When using a temporary Guide: Cut with 3. Mark cut line on workpiece. Fence following edge of temporary guide.

  • Page 12: Maintenance

    Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: Make sure that the power Switch is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.
  • Page 13 troubleshooting problem possible causes Likely Solutions Tool will not start. 1. Cord not connected. 1. Check that cord is plugged in. 2. No power at outlet. 2. Check power at outlet. If outlet is unpowered, turn off tool and check circuit breaker. If breaker is tripped, make sure circuit is right capacity for tool and circuit has no other loads.
  • Page 14 record product’s Serial number Here: note: if product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175486387 when ordering parts. Page 14 For technical questions, please call 1-888-866-5797.

  • Page 15: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
  • Page 16 26677 agoura road • calabasas, ca 91302 • 1-888-866-5797...
