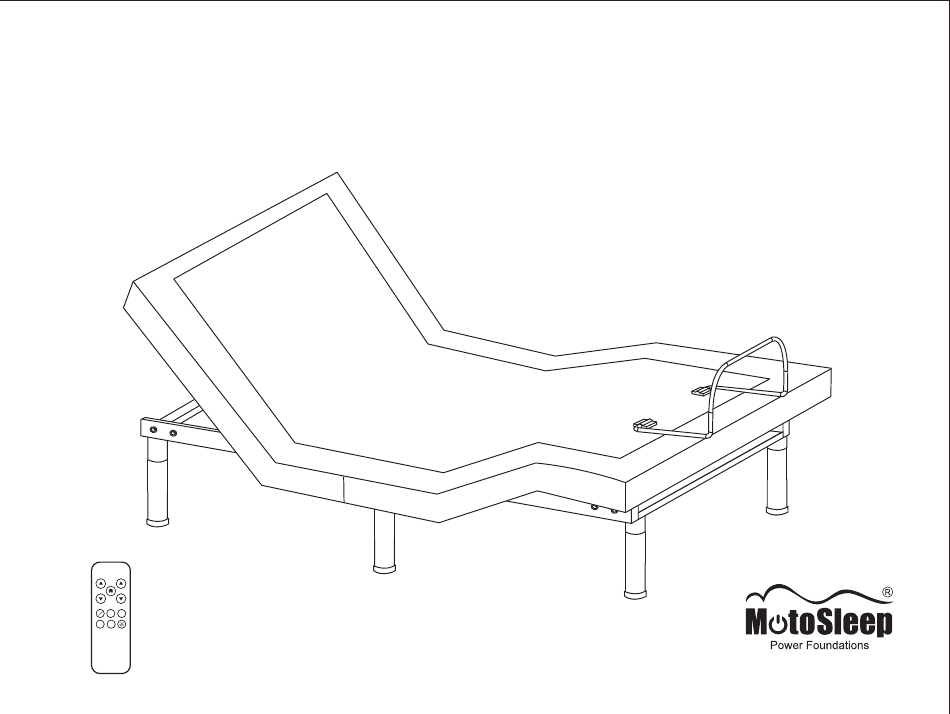

- Page 1 OWNER’S MANUAL XFB/XSF Low Prof ile Bed SKU#: SFAB200ETXL SFAB200EQ SFAB200EK HEAD FOOT SNORE LPB11NM Rev 1.0 06/2021...
-
Page 2: Accessories Box
Setup the power foundation without the bed frame. Take out all the accessories from the packaging and put them aside. All electronics and components that need to be installed are located in boxes under the foundation or attached to the frame. Before Open the box lid. - Page 3 Remove the red plastic safety lock before unfolding your power foundation. Remove the red plastic Turn the locking pin 90° in Remove the folding locking safety clip. counter clockwise direction. pin by pulling upwards. Red Plastic Safety Clip Locking Pin Locking Pin Install 4 legs, make sure the Remove the bed from the box...
- Page 4 Install the remaining 2 legs on the foot end of the bed, make sure the legs are tight. Make the bed completely flat. Uncoil the DC power cord (connected to the control box) O A R and put it to the side of the bed. O A R H E A H E A...
- Page 5 Setup the power foundation with the bed frame and slat base. Take the bed out of the box, put it on the slat base, do not install Make the bed completely flat with a flipping motion. any legs. Uncoil the DC power cord (connected to the control box)， pull the DC power cord towards the direction of the AC power source through either the bottom or the side of the bed frame.
-
Page 6: Control Box
Electronics Quick Reference Guide If simultaneous operation of two foundations is desired, please follow the steps listed below. Remote Control Sync cable is not required if both Sync Cord Model No.:****** adjustable bases are equipped with WIRELESS RECEIVER V2.0 ****** V2.0 or newer remote controls. -
Page 7: One Touch Button
Remote Control Instructions Pairing Remote The original remote that comes in the box is already paired to the foundation. No further HEAD FOOT action is required. In the event when the remote is not paired with the foundation, follow the SNORE Home Position pairing instructions below. - Page 8 Before you start. Switch on the pairing function on your mobile device. Make sure your MotoSleep Power Foundation is correctly connected and is power-on. MotoSleep Mobile APP is a mobile application to control the MotoSleep Power Foundation with The MotoSleep APP will automatically pair your MotoSleep Power Foundation once you start mobile devices.
-
Page 9: Headboard Bracket Installation Guide(Optional)
Slat Pack Installation Guide(Optional) Headboard Bracket Installation Guide(Optional) Headboard brackets are optional and not included. A 1/2” (13 mm) SLAT/ PLATFORM Leg Configuration Table LEGS socket and 1/2” (13 mm) wrench are required to complete the installation. (2) T-Brackets (8) M8*16 (4) Nuts (4) Washers (2) Headboard Brackets... - Page 10 Spacing Connector for TXL/T/CKS (Optional) Install two spacing connectors to ensure the gap between the two adjustable bases is consistent. (2) SPACING CONNECTOR (TXL/T/CKS ONLY) Spacing Connector Lift the head and foot end of the bed by remote control. Install the spacing connector as shown. - 9 -...
- Page 11 TOOLS REQUIRED: NO TOOLS REQUIRED TOOLS REQUIRED: NO TOOLS REQUIRED PART LIST PART LIST Description Sketch Quantity Remark Description Sketch Quantity Remark PSFAB200EFM PSFAB200ELTXL For TXL PSFAB200EHM PSFAB200ELQ For Q 1 for TXL PSFAB200EUP PSFAB200ELK For K 2 for Q/K PSFAB200EUSBB For TXL PSFAB200EUSB...
Need help?
Do you have a question about the XFB and is the answer not in the manual?
Questions and answers
How do I pair my remote to my motosleep XSF adjustable model # CB18B My remote is not working.
To pair the remote to the MotoSleep XSF adjustable model CB18B, follow these steps:
1. Ensure the foundation is powered on.
2. Make sure the remote is not already paired.
3. Press and hold the pairing button on the control box.
4. Press and hold the HOME button on the remote for 5 seconds until pairing is complete.
If using wireless syncing for two foundations with V2.0 remotes:
1. Ensure both remotes are individually paired to their foundations.
2. Set both foundations to the flat (home) position.
3. Press and hold the HOME button on both remotes at the same time for 5 seconds.
This answer is automatically generated
The remote are out of sync and one side of the bed goes up when the other side is down without being pressed. Is there a way to reset and trouble shoot the connection? Also when I press down it goes down and comes back up. Thank you
To reset and troubleshoot the remote connection for the MotoSleep XFB bed when one side moves independently and the down function is not working correctly, follow these steps:
1. Check the Connection: Ensure the MotoSleep Power Foundation is properly paired with the mobile app and remote.
2. Refresh the Device List: Use the MotoSleep Mobile App to refresh the list of connected devices by tapping the refresh button.
3. Disconnect and Reconnect:
- Go to the settings page in the app.
- Select the MotoSleep product.
- Disconnect and then reconnect to the bed.
4. Check the Remote Functions:
- Ensure the remote has working batteries.
- Try using the remote’s head and foot lifting functions separately.
5. Reset the Bed:
- Unplug the power supply for at least 30 seconds.
- Reconnect the power and test the remote buttons.
6. Inspect the Sync Cord (if applicable): If using a Twin XL, Twin, or Split California King setup, make sure the sync cord is properly connected.
7. Refer to the Owner’s Manual: Check the troubleshooting section for additional steps.
If the problem persists, consider contacting customer support.
This answer is automatically generated
