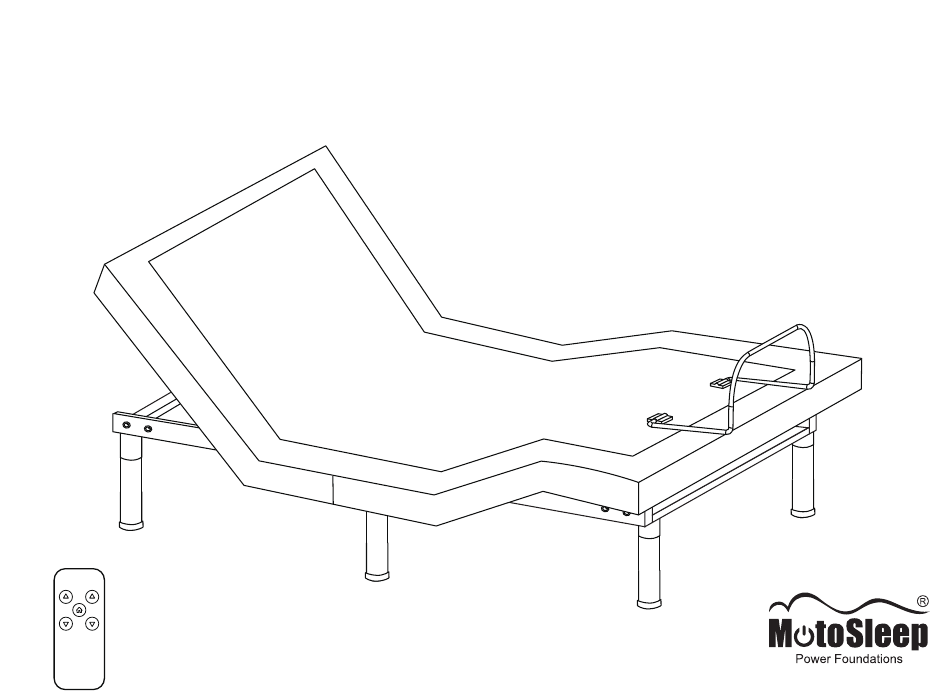

- Page 1 OWNER’S MANUAL XFB/XSF Low Prof ile Bed HEAD FOOT LPB5NM Rev 8.0 03/2022...
-
Page 2: Accessories Box
Setup the power foundation without the bed frame. Take out all the accessories from the packaging and put Mattress Retainer Bar Accessories Box them aside. All electronics and components that need to Open the box lid. be installed are located in boxes under the foundation or attached to the frame. - Page 3 Remove the bed from the box with a flipping Install 4 legs, make sure the motion, let the bed stand on the 4 legs. legs are tight. O A R O A R H E A H E A Install the remaining 2 legs on the foot end of the bed, make sure the legs are tight.
- Page 4 Make the bed completely flat. O A R H E A Uncoil the AC power cord, connect Insert the batteries into the DC power cord to the power the remote control. supply and then connect the power supply to the AC power source.
- Page 5 Setup the power foundation with the bed frame and slat base. Take the bed out of the box, put it on the slat base, do not install Make the bed completely flat with a flipping motion. any legs. Uncoil the DC power cord (connected to the control box)， pull the DC power cord towards the direction of the AC power source through either the bottom or the side of the bed frame.
-
Page 6: Control Box
Electronics Quick Reference Guide If simultaneous operation of two foundations is desired, please follow the steps listed below. Remote Control Sync cable is not required if both Sync Cord Model No.:****** adjustable bases are equipped with WIRELESS RECEIVER V2.0 ****** V2.0 or newer remote controls. -
Page 7: Remote Control Instructions
Pairing Remote Remote Control Instructions The original remote that comes in the box is already paired to the foundation. No further action is required. In the event when the remote is not paired with the foundation, follow the pairing instructions below. STEP 1：... - Page 8 Before you start. Switch on the pairing function on your mobile device. Make sure your MotoSleep Power Foundation is correctly connected and is power-on. MotoSleep Mobile APP is a mobile application to control the MotoSleep Power Foundation with The MotoSleep APP will automatically pair your MotoSleep Power Foundation once you start mobile devices.
- Page 9 Slat Pack Installation Guide (Optional) Headboard Bracket Installation Guide (Optional) Headboard brackets are optional and not included. A 1/2” (13 mm) SLAT/ PLATFORM Leg Configuration Table LEGS socket and 1/2” (13 mm) wrench are required to complete the installation. (2) T-Brackets (8) M8*16 (4) Nuts (4) Washers...
- Page 10 Spacing Connector for TXL/T/CKS (Optional) Install two spacing connectors to ensure the gap between the two adjustable bases is consistent. (2) SPACING CONNECTOR (TXL/T/CKS ONLY) Spacing Connector Lift the head and foot end of the bed by remote control. Install the spacing connector as shown. PRODUCT PROTECTED BY FOLLOWING PATENT: —...
Need help?
Do you have a question about the XFB and is the answer not in the manual?
Questions and answers
just bought bed used from my granddaughter; no manual. Where can I find the model # on bed? I've crawled under it for an hour already
The model number can be found in the owner's manual for the MotoSleep bed. For beds with part number XFB, example model numbers include XFB/XSF Low Profile Bed with SKUs such as SFAB200ETXL, SFAB200EQ, and SFAB200EK.
This answer is automatically generated
@Mr. Anderson , thank you for the rapid response. However, as stated, I do not have the owner's manual (bought from granddaughter who can't find it). Where will I find the model # under the bed? It is assembled with mattress already on top and linens in place. I can crawl under bed with flashlight, but WHERE should I look?
