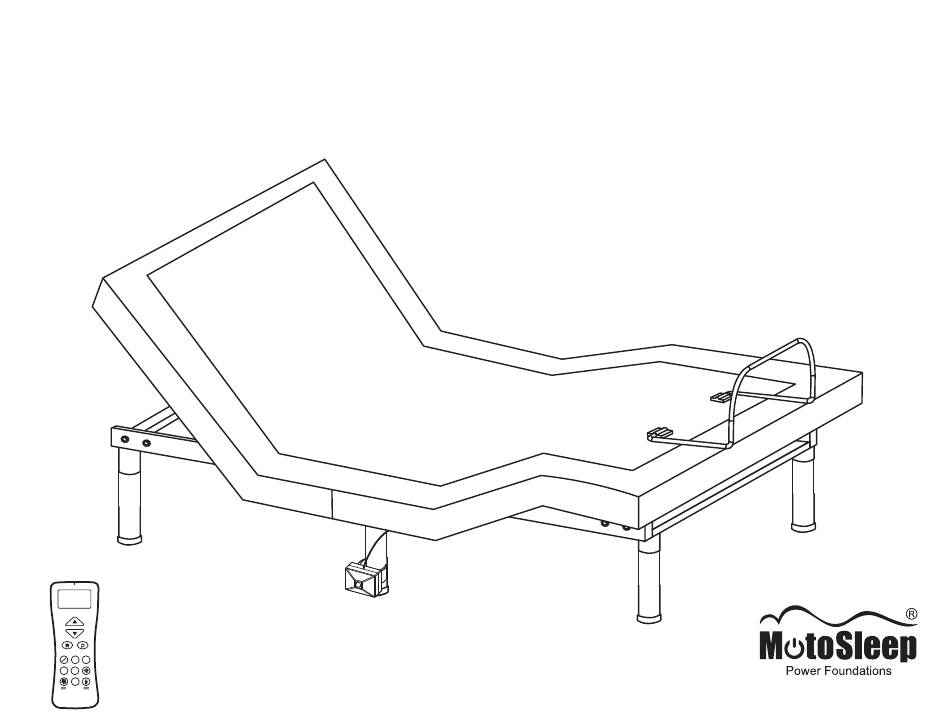

- Page 1 OWNER’S MANUAL XSF Low Prof ile Bed With Motion Sensor And Audio System SKU#: SFAB350MSATXL SFAB350MSAQ SFAB350MSAK HOME SELECT SNORE STOP LPB13W4MSA Rev 1.0 05/2021...
-
Page 2: Accessories Box
Setup the power foundation without the bed frame. Take out all the accessories from the packaging and put them aside. All electronics and components that need to be installed are located in boxes under the foundation or attached to the frame. Before Open the box lid. - Page 3 Remove the red plastic safety lock before unfolding your power foundation. Remove the red plastic Turn the locking pin 90° in Remove the folding locking safety clip. counter clockwise direction. pin by pulling upwards. Red Plastic Safety Clip Locking Pin Locking Pin Install 4 legs, make sure the Remove the bed from the box...
- Page 4 Install the remaining 2 legs on the foot end of the bed, make sure the legs are tight. Motion sensor installation Uncoil the DC power cord (connected to the control box) Motion Mounting and put it to the side of the bed. O A R Sensor Bracket...
- Page 5 Install the mattress retainer bar Make the bed completely flat. one side after another. O A R H E A Insert the batteries into Uncoil the AC power cord, connect the DC power cord to the the remote control. power supply and then connect the power supply to the AC power source.
- Page 6 Setup the power foundation with the bed frame and slat base. Take the bed out of the box, put it on the slat base, do not Turn over the bed. Uncoil the DC power cord. install any legs. O A R O A R motion sensor extension cord...
- Page 7 Pull the DC power cord towards the direction of the AC power source through either the bottom or the side of the bed frame. Install the mattress retainer bar one side after another. Pull the two motion sensors to the two sides of the bed frame. Make the bed completely flat with a flipping motion.
-
Page 8: Control Box
Electronics Quick Reference Guide If simultaneous operation of two foundations is desired, please Remote Control Head Massage Neck Motor Lumbar Motor follow the steps listed below. Motor(2 for King) Note the sync cord is needed to control two foundations with Foot Motor mobile APP, follow the "Synchronizing Two Foundations with Sync Cord"... -
Page 9: One Touch Button
Remote Control Instructions Pairing Remote The original remote that comes in the box is already paired to the foundation. No further action is required. In the event when the remote is not paired with the foundation, follow the pairing instructions below. HOME SELECT SNORE... -
Page 10: Headboard Bracket Installation Guide(Optional)
Slat Pack Installation Guide(Optional) Headboard Bracket Installation Guide(Optional) Headboard brackets are optional and not included. A 1/2” (13 mm) SLAT/ PLATFORM Leg Configuration Table LEGS socket and 1/2” (13 mm) wrench are required to complete the installation. (2) T-Brackets (8) M8*16 (4) Nuts (4) Washers (2) Headboard Brackets... -
Page 11: Device Pairing
MotoSleep Power Foundation is correctly connected and is power-on. The MotoSleep APP will automatically pair your MotoSleep Power Foundation once you start MotoSleep Mobile APP is a mobile application to control the MotoSleep Power Foundation with the APP and does not require additional settings. -
Page 12: Audio System
Spacing Connector for TXL/T/CKS (Optional) Audio System Install two spacing connectors to ensure the gap between the two Pairing Instruction adjustable bases is consistent. 1. Once power is supplied, the audio kit begins to search pairing device (2) SPACING CONNECTOR (TXL/T/CKS ONLY) automatically. - Page 13 TOOLS REQUIRED: NO TOOLS REQUIRED TOOLS REQUIRED: NO TOOLS REQUIRED PART LIST PART LIST Description Sketch Quantity Remark Description Sketch Quantity Remark PSFAB350FM PSFAB350LTXL For TXL PSFAB350HM PSFAB350LQ For Q 1 for TXL PSFAB350UA PSFAB350LK For K 2 for Q/K 1 for TXL PSFAB350MMR For TXL/Q...
