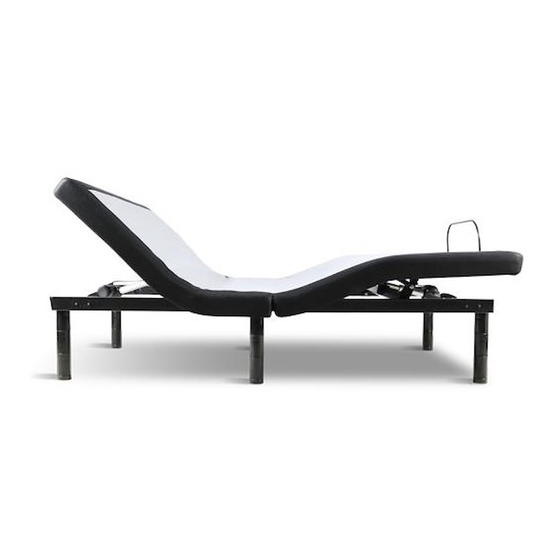

MotoSleep XSF Owner's Manual
Low profile bed with motion sensor and immersive audio system
Hide thumbs
Also See for XSF:
- Owner's manual (14 pages) ,
- Owner's manual (11 pages) ,
- Owner's manual (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for MotoSleep XSF
Summary of Contents for MotoSleep XSF

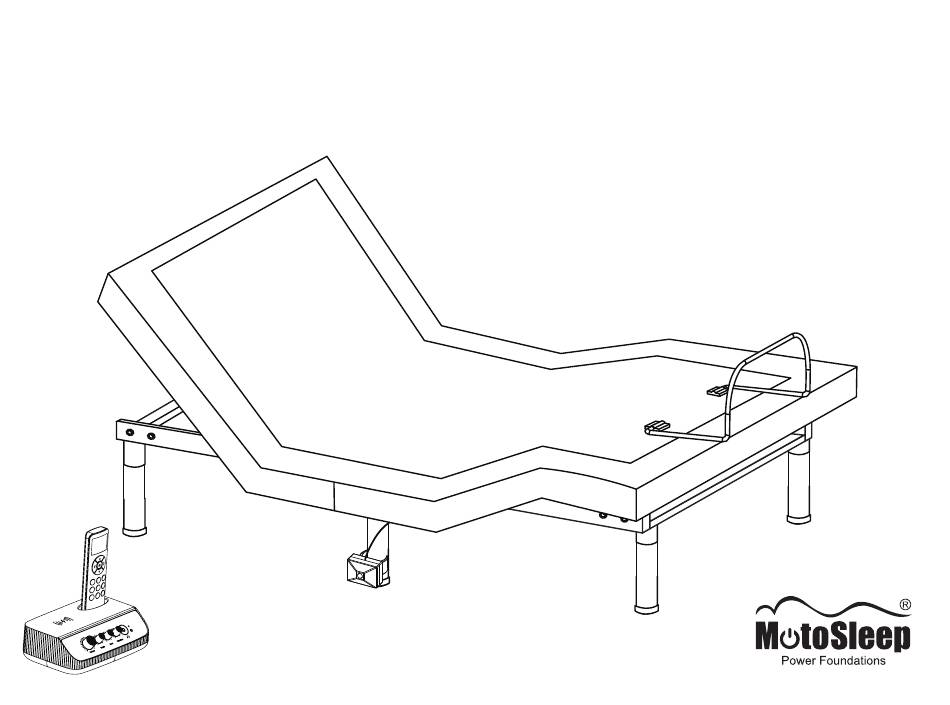

- Page 1 OWNER’S MANUAL XSF Low Prof ile Bed With Motion Sensor And Immersive Audio System LPB14W4MSC Rev 1.0 08/2022...
-
Page 2: Accessories Box
Setup the power foundation without the bed frame. Take out all the accessories from the packaging and put them aside. All electronics and components that need to be installed are located in boxes under the foundation or attached to the frame. Before Open the box lid. - Page 3 Remove the red plastic safety lock before unfolding your power foundation. Remove the red plastic Turn the locking pin 90° in Remove the folding locking safety clip. counter clockwise direction. pin by pulling upwards. Red Plastic Safety Clip Locking Pin Locking Pin Install 4 legs, make sure the Remove the bed from the box...
- Page 4 Install the remaining 2 legs on the foot end of the bed, make sure the legs are tight. Motion sensor installation Uncoil the DC power cord (connected to the control box) Motion Mounting and put it to the side of the bed. O A R Sensor Bracket...
- Page 5 Install the mattress retainer bar Make the bed completely flat. one side after another. O A R H E A Insert the batteries into Uncoil the AC power cord, connect the DC power cord to the the remote control. power supply and then connect the power supply to the AC power source.
- Page 6 Setup the power foundation with the bed frame and slat base. Take the bed out of the box, put it on the slat base, do not Turn over the bed. Uncoil the DC power cord. install any legs. O A R O A R motion sensor extension cord...
- Page 7 Pull the DC power cord towards the direction of the AC power source through either the bottom or the side of the bed frame. Install the mattress retainer bar one side after another. Pull the two motion sensors to the two sides of the bed frame. Make the bed completely flat with a flipping motion.
- Page 8 Immersive Audio System Installation Take out all the accessories from the immersive audio system box. Immersive Audio System Box IMMERSIVE AUDIO SYSTEM BOX: Audio Power Supply of AC Power Cord Controller Audio System ×1 ×1 ×1 ×1 STEP 1: STEP 2: Lift the head and foot end of the bed by remote control.
- Page 9 STEP 3: STEP 5: Plug the audio system cables into the audio controller. Put the audio controller on the bedstand, the remote control can be placed in the storage box of the audio controller. STEP 4: Uncoil the AC power cord, Connect the DC power cord to the power supply, and then connect the power supply to the AC power source.
-
Page 10: Control Box
Electronics Quick Reference Guide If simultaneous operation of two foundations is desired, please Remote Control follow the steps listed below. Note the sync cord is needed to control two foundations with mobile APP, follow the "Synchronizing Two Foundations with Sync Head Massage Cord"... -
Page 11: Battery Level
Remote Control Instructions Pairing Remote The original remote that comes in the box is already paired to the foundation. No further action is required. In the event when the remote is not paired with the foundation, follow the pairing instructions below. STEP 1：... - Page 12 Immersive Audio System Spacing Connector for TXL/T/CKS (Optional) Subwoofer Speaker Install two spacing connectors to ensure the gap between the two (4 for Q/F/K/CK) adjustable bases is consistent. Low Frequency Vibrator (2) SPACING CONNECTOR (TXL/T/CKS ONLY) (4 for Q/F/K/CK) DC Power Cord of Audio System Audio Control Box AC Power Cord...
-
Page 13: Headboard Bracket Installation Guide (Optional)
Slat Pack Installation Guide (Optional) Headboard Bracket Installation Guide (Optional) Headboard brackets are optional and not included. A 1/2” (13 mm) SLAT/ PLATFORM Leg Configuration Table LEGS socket and 1/2” (13 mm) wrench are required to complete the installation. (2) T-Brackets (8) M8*16 (4) Nuts (4) Washers... - Page 14 MotoSleep Power Foundation is correctly connected and is power-on. The MotoSleep APP will automatically pair your MotoSleep Power Foundation once you start MotoSleep Mobile APP is a mobile application to control the MotoSleep Power Foundation with the APP and does not require additional settings.
