- Page 1 OWNER’S MANUAL Installation & Operation H Series Serial No. 2016 MotoSleep. All Rights Reserved. Rev 5 09/2016...
-
Page 2: Table Of Contents
Table of Contents Safety & Warranty Warnings ……………………………………………… 01 Parts List ………………………………………………………………………… 02 H100/H100IR Electronics Quick Reference Guide …… 03 H200/H200M Electronics Quick Reference Guide …… 04 Installation Guide ……………………………………………………………… 05 H100/H100IR Remote Control Instructions …………………… 06 H200/H200M Remote Control Instructions ……………………… 07 Setting Programmable Positions and Pairing Remote…………... -
Page 3: Safety & Warranty Warnings
Safety & Warranty Warnings READ THE FOLLOWING INFORMATION CAREFULLY BEFORE USING THIS PRODUCT If unable to understand warnings, cautions, and/or instructions, contact the dealer or technical personnel if applicable, before attempting to use the equipment. Otherwise, injury or damage may result. SAFETY WARNINGS: Product Rating: The motors are not designed to operate continuously for more than... -
Page 4: Parts List
Parts List All electronics and components that need to be installed are located in boxes under the foundation or attached to the frame. Before discarding the packing materials, ensure that all the parts are accounted for. INCLUDED WITH WIRED (1) Power Supply with (1) Wired Remote (1) Power Cord (1) Sync Cord Only in TXL... -
Page 5: H100/H100Ir Electronics Quick Reference Guide

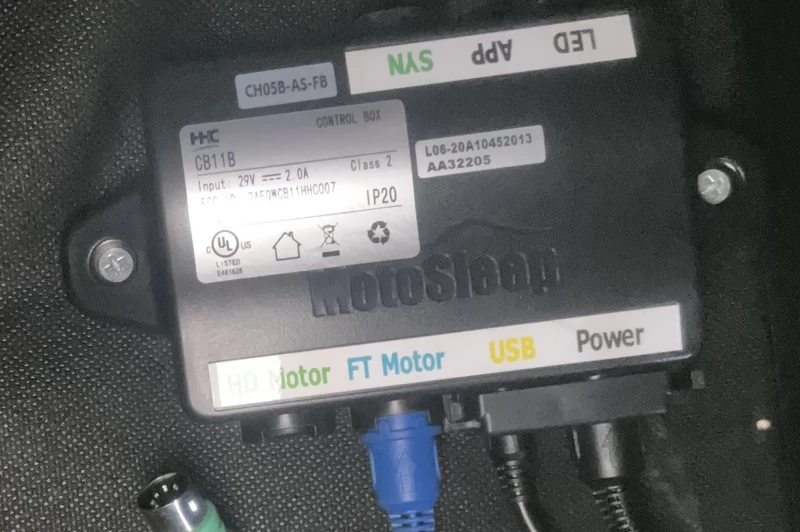

Electronics Quick Reference Guide H100 WIRED OVERVIEW Head Motor Port Foot Motor Port Head Motor Foot Motor Power Cord Wired Remote Port Sync Cord Connection Control Box Input Power Cord Power Input Cord Connection Supply Sync Cord Connection Remote H100IR WIRELESS OVERVIEW Power Cord Input Cord Connection Sync Cord Connection... -
Page 6: H200/H200M Electronics Quick Reference Guide
Electronics Quick Reference Guide H200 WIRELESS OVERVIEW Power Cord Input Cord Connection Sync Cord Connection Input Power Under USB Connection Cord Bed LED LED Connection Power USB Charging Supply Ports Charger Sync Cord Connection Foot Motor Port Head Motor Port Remote Foot Motor H200M PACKAGE OVERVIEW... -
Page 7: Installation Guide
Installation Guide Two people are required to set up the foundation. STEP 6 NOTE: To avoid damage to the foundation, always open the carton while the bed is in the flat Locate the power supply position. and install (2) 9-volt batteries (not included). -
Page 8: H100/H100Ir Remote Control Instructions
Remote Control Instructions H100 H100IR USB Port Flat Position Flat Position Lifts and Lifts and Lowers Foot Lowers Head Lifts and Lifts and Lowers Foot Lowers Head ADJUST ADJUST The HEAD arrows lift and lower the head section of the The HEAD arrows lift and lower the head section of the foundation. -
Page 9: H200/H200M Remote Control Instructions
Remote Control Instructions H200 H200M Flat Flat Position Position Lifts and Lowers Head Lifts and Lifts and Lifts and Lowers Head Lowers Foot Lowers Foot Programmable Positions Underneath Position Anti-Snore LED on/off Position Zero G Position Head Foot Massage on Massage on Underneath Programmable... -
Page 10: Setting Programmable Positions And Pairing Remote
Setting Programmable Positions and Pairing Remote SETTING PROGRAMMABLE POSITIONS PAIRING REMOTE The wireless power bed has a programmable feature that allows The original remote that comes in the box is already paired to the you to save two custom positions. foundation. -
Page 11: Synchronizing Two Foundations
Synchronizing Two Foundations If simultaneous operation of two foundations is desired, use the sync cord to connect the electronics of both foundations together. STEP 3 STEP 1 Plug foundations back into the power source. Unplug foundations from the power source. If 9V batteries were installed in the power supply, remove them. -
Page 12: Headboard Bracket Installation Guide
Headboard Bracket Installation Guide (Optional) Headboard brackets are an optional accessory and are not included. A 9/16'' (14 mm) socket and 1/2'' (13 mm) crescent wrench are necessary to complete installation. HEADBOARD BRACKET COMPONENTS (2) Headboard Brackets (2) T-Brackets (10) Short Bolts (10) Nuts STEP 1 STEP 2... -
Page 13: Troubleshooting
Troubleshooting In the event that the power foundation fails to operate, assess the symptoms and possible solutions provided in the chart below. SYMPTOMS SOLUTIONS Verify that the power cord is plugged into a working, grounded Remote control illuminates and appears to be operable, but will not electrical outlet. - Page 14 If the MotoSleep Power Foundation is installed over a bed frame, verify that the massage motors are not causing the bed frame (or bed frame components) to vibrate.
- Page 16 Thank you for purchasing a MottoSleep Power Foundation. Contact Customer Service Toll Free at 1-800-MY-MOTTO (1-800-248-5988) www.motosleep.com...
Need help?
Do you have a question about the H Series and is the answer not in the manual?
Questions and answers
Lost the remote for the bed
To replace the remote for the MotoSleep H Series bed, follow these steps:
1. Adjust the head and foot of the bed to your desired position.
2. Ensure the remote batteries are working. Replace them if needed.
3. Unplug the power cord from the power source. If 9V batteries are installed in the power supply, remove them.
4. Press and hold the LED on/off button, then press and hold one of the picture programmable buttons for 5 seconds until you hear a beep. This saves the position.
5. Plug the power cord back into the power source. You will hear a beep in 2 seconds, indicating the remote is paired.
This answer is automatically generated
How can I reset the bed if the remote does not work?
To reset the MotoSleep H Series bed if the remote does not work, unplug the power cord, wait 30 seconds, and then plug it back in. This resets the electronic components.
