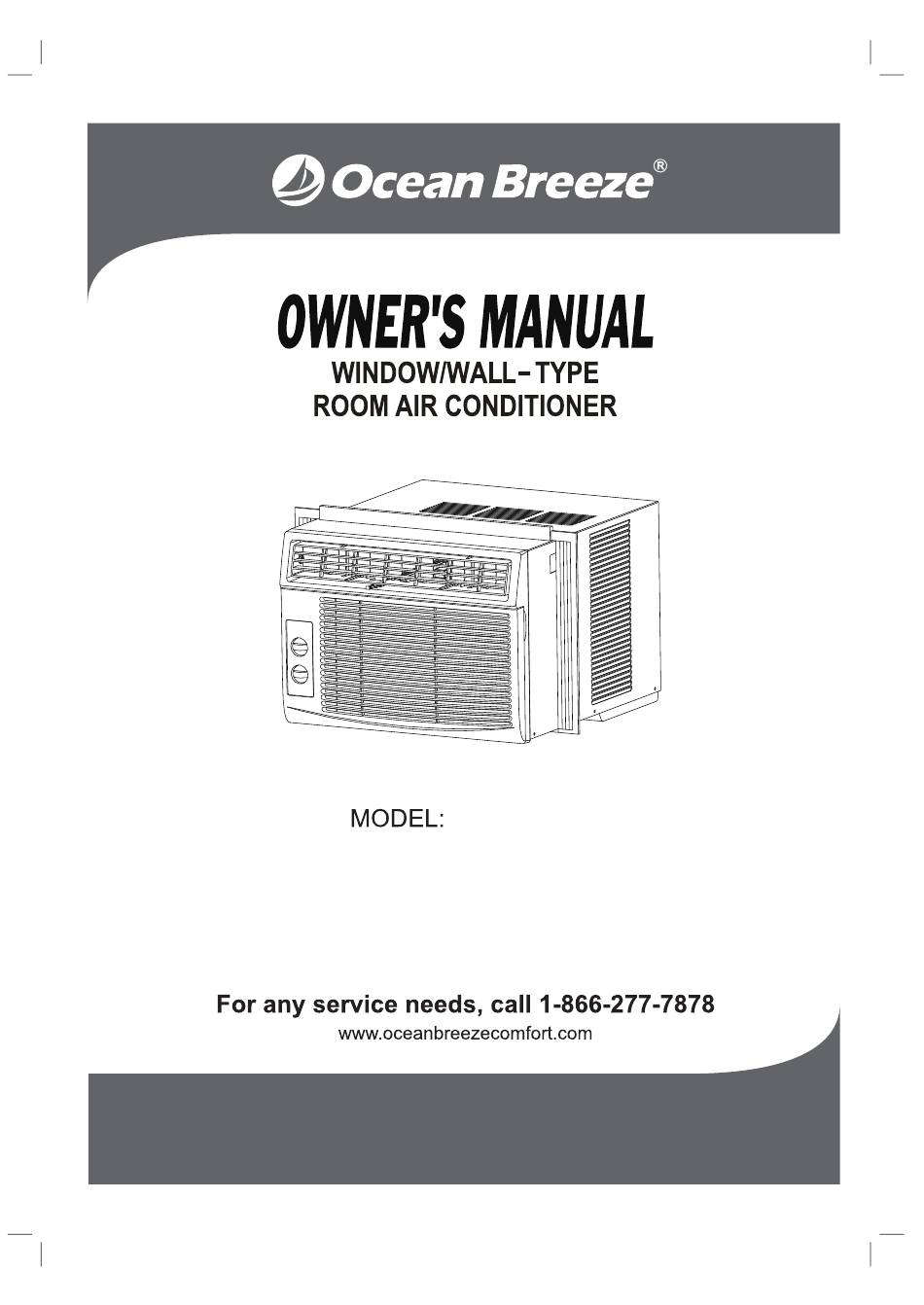

- Page 1 OBZ-05CMN3 Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times.
- Page 2 These instructions may not cover every possible condition of use, so common sense and attention to safety is required when installing, operating, and maintaining this product.
- Page 4 ・ Plug in power cord plug properly. Otherwise, it may cause electric shock or fire due to excess heat generation. ・ Do not modify power cord length or share the outlet with other appliances as it may cause electric shock or fire due to overheating. ・...
- Page 5 ・ Do not direct airflow straight onto people or pets to avoid possible health hazards. ・ Always install a circuit breaker and a dedicated power circuit. Incorrect installation may cause fire and electric shock. ・ Do not open the unit during operation. It may cause an electric shock.
- Page 6 ・ When used near a stove or other gas-burning device, be sure the room is properly ventilated. Otherwise, an oxygen shortage may occur. ・ Do not use for any purpose other than room comfort. Do not use this air conditioner to preserve precision devices, food, pets, plants, objects.
-
Page 7: Prevent Accidents
NOTE: The power supply cord with this air conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section ‘Operation of Current Device’ for details. In the event that the power supply cord is damaged and cannot be repaired, it must be replaced with a cord from the Product Manufacturer. -
Page 8: Operation Of Current Device
Operation of Current Device The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord, do the following: 1. Plug in the Air Conditioner. 2. The power supply cord will have TWO buttons on the plug head. Press the TEST button, you will notice a click as the RESET button pops out. - Page 9 - Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. - DO NOT modify the length of the power cord or use an extension cord to power the unit. DO NOT share a single outlet with other electrical appliances.
- Page 10 WARNINGS (for using R290/R32 refrigerant only) 1. Transport of equipment containing flammable refrigerants See transport regulations 2. Marking of equipment using signs See local regulations 3. Disposal of equipment using flammable refrigerants See national regulations. 4. Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions. 5.
- Page 11 WARNINGS (for using R290/R32 refrigerant only) 7) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out.
- Page 12 WARNINGS (for using R290/R32 refrigerant only) Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications. NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment.
- Page 13 WARNINGS (for using R290/R32 refrigerant only) Open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe. This process may need to be repeated several times.
- Page 14 WARNINGS (for using R290/R32 refrigerant only) j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
-
Page 15: Before You Begin
BEFORE YOU BEGIN Read these instructions completely and carefully. IMPORTANT - Save these instructions for the local inspector’s use. IMPORTANT - Observe all governing codes and ordinances. Note to Installer - Be sure to leave these 10000~12000Btu/h 5000~6000Btu/h 6000~8000Btu/h Model instructions with the Consumer. - Page 16 of the unit place it the top rail - 13 -...
- Page 17 - 14 -...
- Page 18 C. Once the panel has been installed on the side of the cabinet, make sure it sits securely inside the frame channel by making slight adjustments. Slide the top and bottom ends of the frame into the top and bottom rails of the cabinet (Fig.
- Page 19 Drive 1 / 2" (13mm) locking screws through frame holes into window sash (Fig. 9 and 10). To secure the lower sash in place, attach right angle sash lock with 3 / 4" (19mm) or 1 / 2" (13mm) screw as shown (Fig.
- Page 20 High Pitched Sound High-efficiency compressors may have a high pitched Vibration sound during the cooling cycle. The unit may vibrate and make noise because of poor wall or Sound of Rushing Air window construction or incorrect In front of the unit, you may installation.
- Page 21 Temperature Selector This temperature selector temperature selector counter-clockwise temperature a higher room Remove the filter by sliding out from the right-hand side. Wash the filter using liquid dishwashing detergent and warm water. Rinse filter thoroughly. Gently shake excess water from the filter. Be sure the filter is thoroughly dry before placing it back.
- Page 22 - The power cord may have been disconnected from the outlet. Push plug in firmly into the outlet. - The fuse or circuit breaker may have been tripped. In this case, replace fuse with a time delay type or reset circuit breaker. - The power button may be on OFF.
- Page 23 "CARE AND CLEANING" section - The noise ma y be due to window vibration. This can happen when the air conditioner is installed incorrectly. Refer to the "INSTALLATION INSTRUCTIONS" section or check with the person installed the unit initially. - The air conditioner may have been improperly installed. Tilt the air conditioner slightly outward to allow water to drain out.
