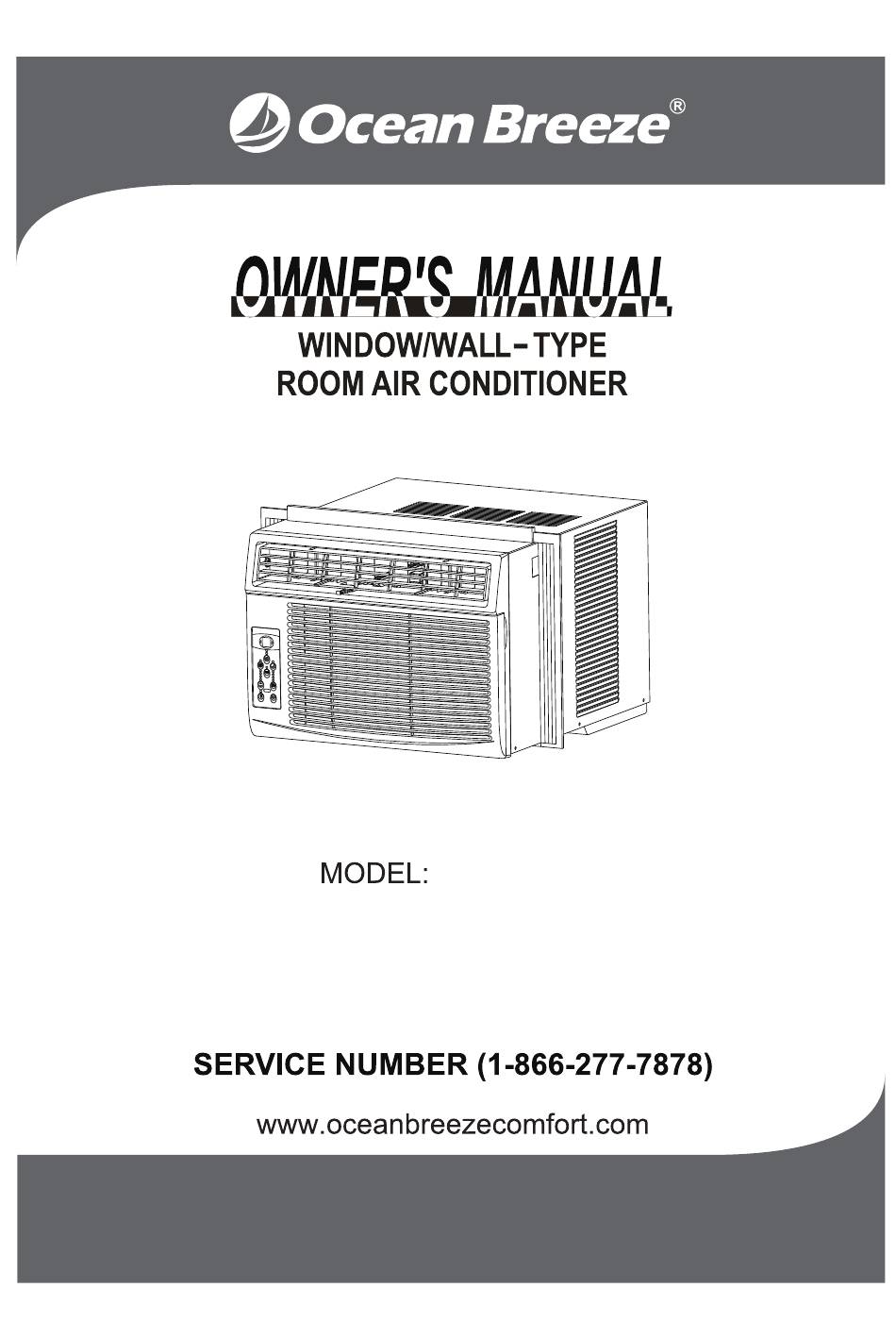

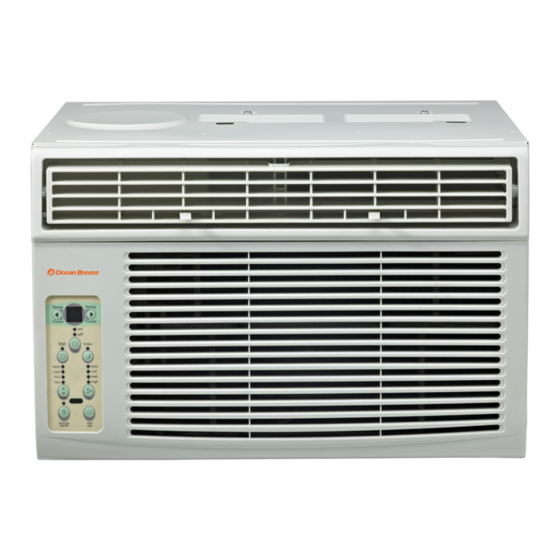

- Page 1 OBZ-05ESN3 OBZ-08ESN3 Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times.
- Page 2 HOW TO INSTALL Inside you will find many helpful tips on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the Troubleshooting Tips section.
- Page 3 • Plug in power cord plug properly. Otherwise, it may cause electric shock or fire due to excess heat generation. • Do not modify power cord length or share the outlet with other appliances as it may cause electric shock or fire due to overheating. •...
- Page 4 • Do not use the power cord near flammable gas or combustibles, such as gasoline, benzene, thinner, etc. It may cause an explosion or fire. • When the air filter is to be removed, do not touch the metal parts of the unit. It may cause injury.
-
Page 5: Prevent Accidents
NOTE: The power supply cord with this air conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section Operation of Current Device for details. In the event that the power supply cord is damaged, it cannot be repaired, it must be replaced with a cord from the Product Manufacturer. - Page 6 Operation of Current Device (Applicable to the unit adopts current detection device only) The power supply cord contains a current device that senses damage to the power cord. To test your power supply cord, do the following: 1. Plug in the Air Conditioner. 2.
- Page 7 - Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. - DO NOT modify the length of the power cord or use an extension cord to power the unit. DO NOT share a single outlet with other electrical appliances.
- Page 8 WARNINGS (for using R290/R32 refrigerant only) 1. Transport of equipment containing flammable refrigerants See transport regulations 2. Marking of equipment using signs See local regulations 3. Disposal of equipment using flammable refrigerants See national regulations. 4. Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions. 5.
- Page 9 WARNINGS (for using R290/R32 refrigerant only) 7) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out.
- Page 10 WARNINGS (for using R290/R32 refrigerant only) Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications. NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment.
- Page 11 WARNINGS (for using R290/R32 refrigerant only) Open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe. This process may need to be repeated several times.
- Page 12 WARNINGS (for using R290/R32 refrigerant only) j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
- Page 13 Before you begin, familiarize yourself with the control panel on the unit shown below and refer to the symbols for the functions you desire. The unit can be controlled by either the unit controls or with the remote control. ADJUSTS ADJUSTS TEMPERATURE TEMPERATURE OR TIME...
- Page 14 Press or hold either LEFT (<) or RIGHT (>) button until the desired temperature is shown on the display. This temperature will be automatically maintained anywhere between 62°F (17°C) and 86°F (30°C). If you want the display to read the actual room temperature, see "To Operate on Fan Only"...
- Page 15 ● Use this function only when cooling is not desired, such as for room air circulation or to exhaust stale air (only on some models). (Remember to open the vent during this function, but keep it closed during cooling for maximum cooling efficiency.) You can choose any fan speed you prefer.
- Page 16 - Press the TIMER button, and the TIMER ON indicator light will illuminate to indicate that the AUTO START program is initiated. - Press the TIMER button again to show the TIMER OFF indicator light which indicates that the AUTO STOP program is initiated.
- Page 17 Shows the set temperature in "°C" or "°F" and the AUTO-TIMER settings. While in Fan Only mode, it shows the room temperature. AS- Room temperature sensor error. - Unplug the unit and plug it back in. lf the error repeats, call for service. NOTE: In Fan Only mode, it will display "LO"...
-
Page 18: Before You Begin
BEFORE YOU BEGIN Read these instructions completely and carefully. IMPORTANT - Save these instructions for the local inspector’s use. IMPORTANT - Observe all governing codes and ordinances. Note to Installer - Be sure to leave these 10000~12000Btu/h 5000~6000Btu/h 6000~8000Btu/h Model instructions with the Consumer. - Page 19 of the unit place it the top rail...
-
Page 20: How To Install
HOW TO INSTALL NOTE: Top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of (5/16"). This is necessary for proper condensed water utilization and drainage. If you are not using the Side Panels for any reason, this pitch to the rear must be maintained by other means. - Page 21 HOW TO INSTALL C. Once the panel has been installed on the side of the cabinet, make sure it sits securely inside the frame channel by making slight adjustments. Slide the top and bottom ends of the frame into the top and bottom rails of the cabinet (Fig.
- Page 22 HOW TO INSTALL Cut foam seal and insert in the space between the upper and lower sashes (Fig. 12). INSTALL WEATHER STRIPPING (only applicable to Energy Star models) In order to minimize air leaks between the room air conditioner and the window opening, trim the weather stripping with a proper length, peel off the protective backing and plug any gaps if needed (Fig.
- Page 23 The air filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the filter can build up and cause an accumulation of frost on the cooling coils. ● Push the vent handle to the Vent Closed position (where applicable).
- Page 24 - The power cord may have been disconnected from the outlet. Push plug in firmly into the outlet. - The fuse or circuit breaker may have been tripped. In this case, replace fuse with a time delay type or reset circuit breaker. - The power button may be on OFF.
- Page 25 - The noise may be due to window vibration. This can happen when the air conditioner is installed incorrectly. Refer to the "HOW TO INSTALL" section on page 19 or check with the person who installed the unit initially. - The air conditioner may have been improperly installed. Tilt the air conditioner slightly outward to allow water to drain out.
- Page 26 High Pitched Sound High-efficiency compressors may have a high pitched Vibration sound during the cooling cycle. The unit may vibrate and make noise because of poor wall or Sound of Rushing Air window construction or incorrect In front of the unit, you may installation.
