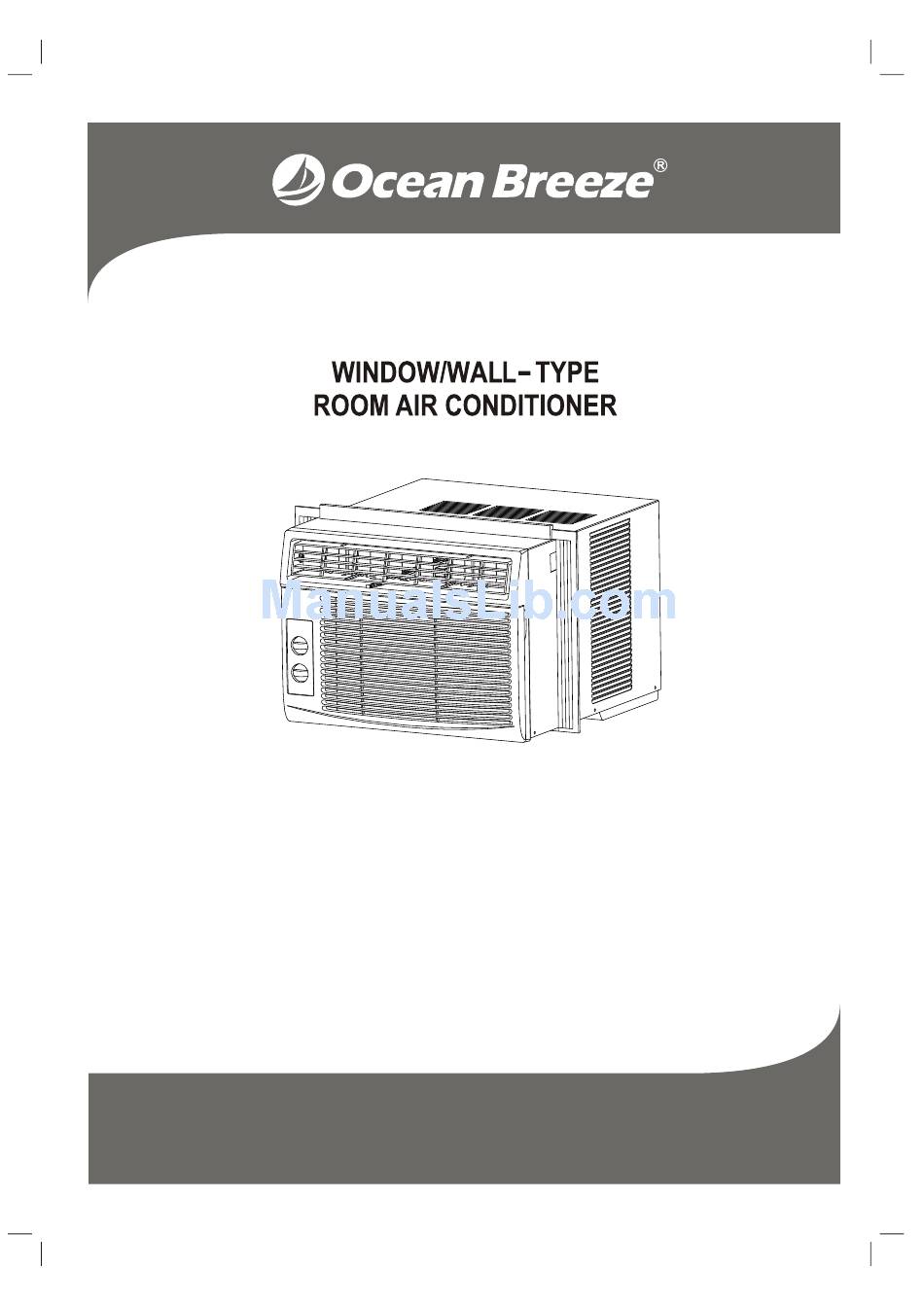

- Page 1 OWNER'S MANUAL MODEL: OBZ-05CM For any service needs, call 1-866-277-7878 www.oceanbreezecomfort.com Before using this product, please read the instructions carefully and keep for future reference.
- Page 2 Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the Troubleshooting Tips section (page 10 ).
-
Page 3: Table Of Contents
CONTENTS Important Safety Instructions ....................... 1-3 Installation Instructions ......................... 4-7 Normal Sounds ..........................8 Air Conditioner Features ....................... 8-9 Care and Cleaning ........................9 Troubleshooting Tips ........................10-11... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ THIS MANUAL To prevent injury to the user or others, the following instructions must be followed. Improper operation due to ignoring of instructions may cause harm or property damage. Below are definitions for symbols used throughout the manual. WARNING This symbol indicates the possibility of death or serious injury. - Page 5 IMPORTANT SAFETY INSTRUCTIONS CAUTION When the air filter is to be Do not put a pet or house plant Ventilate the room well when where it will be exposed to direct used together with a stove, etc. removed, do not touch the metal parts of the unit.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS WARNING NOTE: For Your Safety The power supply cord with this air Do not use gasoline or store any other flammable vapors and liquids in the vicinity conditioner contains a current detection of this or any other appliance. device designed to reduce the risk of fire.
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS CAUTION BEFORE YOU BEGIN Do not, under any circumstances, cut or Read these instructions completely remove the third (ground) prong from the and carefully. power cord. IMPORTANT- Save these Do not change the plug on the power cord instructions for local inspector s use. - Page 8 INSTALLATION INSTRUCTIONS 3. Align the hole in the top rail with those in the top PREPARE THE WINDOW front of the unit as shown in Fig.B Lower sash must open sufficiently to allow a clear Fig.B vertical opening (H) of following size (see Table 1). Side louvers and the rear of the AC must have clear air space to allow enough airflow through the condenser for heat removal.
- Page 9 INSTALLATION INSTRUCTIONS 2. Slide the free end " " section of the panel directly SECURE THE ACCORDION PANELS into the cabinet as shown in Fig. 2. Slide the panel 1. Keep a firm grip on the air conditioner, carefully down. Be sure to leave enough space to slip the top and bottom of the frame into the rails on the place the unit into the window opening so the bottom of the air conditioner frame is against the window...
-
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS 2. Drive 3/4" (19mm) or 1/2" (12.7mm) locking If AC is Blocked by Storm Window screws through frame holes into window sash (Fig.8). Add wood as shown in Fig.11, or remove storm window before air conditioner is installed. If Storm Window Frame must remain, be sure the drain holes or slots are not caulked or painted shut. -
Page 11: Normal Sounds
NORMAL SOUNDS High Pitched Chatter High efficiency compressors may have a high pitched chatter Vibration during the cooling cycle. Unit may vibrate and make noise because of poor wall or window construction or incorrect installation. Sound of Rushing Air At the front of the unit, you may hear the sound of rushing air being moved by the fan Pinging or Switching... -
Page 12: Care And Cleaning
AIR CONDITIONER FEATURES NOTE: TEMPERATURE The controls featured in this manual are representative of many available models. Your model may offer slightly different features. Cool Mode The desired cool setting is selected by rotating the knob to the right to the appropriate location. -
Page 13: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, review this list. It may save your time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance. Problem Solution Air conditioner Wall plug disconnected. Push plug firmly into wall outlet. does not start House fuse blown or circuit breaker tripped. - Page 14 TROUBLESHOOTING TIPS Problem Solution Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Water dripping Refer to installation instructions - check with installer. INSIDE when unit is cooling. Water dripping Unit removing large quantity of moisture from humid room. This is normal during OUTSIDE when excessively humid days.
- Page 15 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
