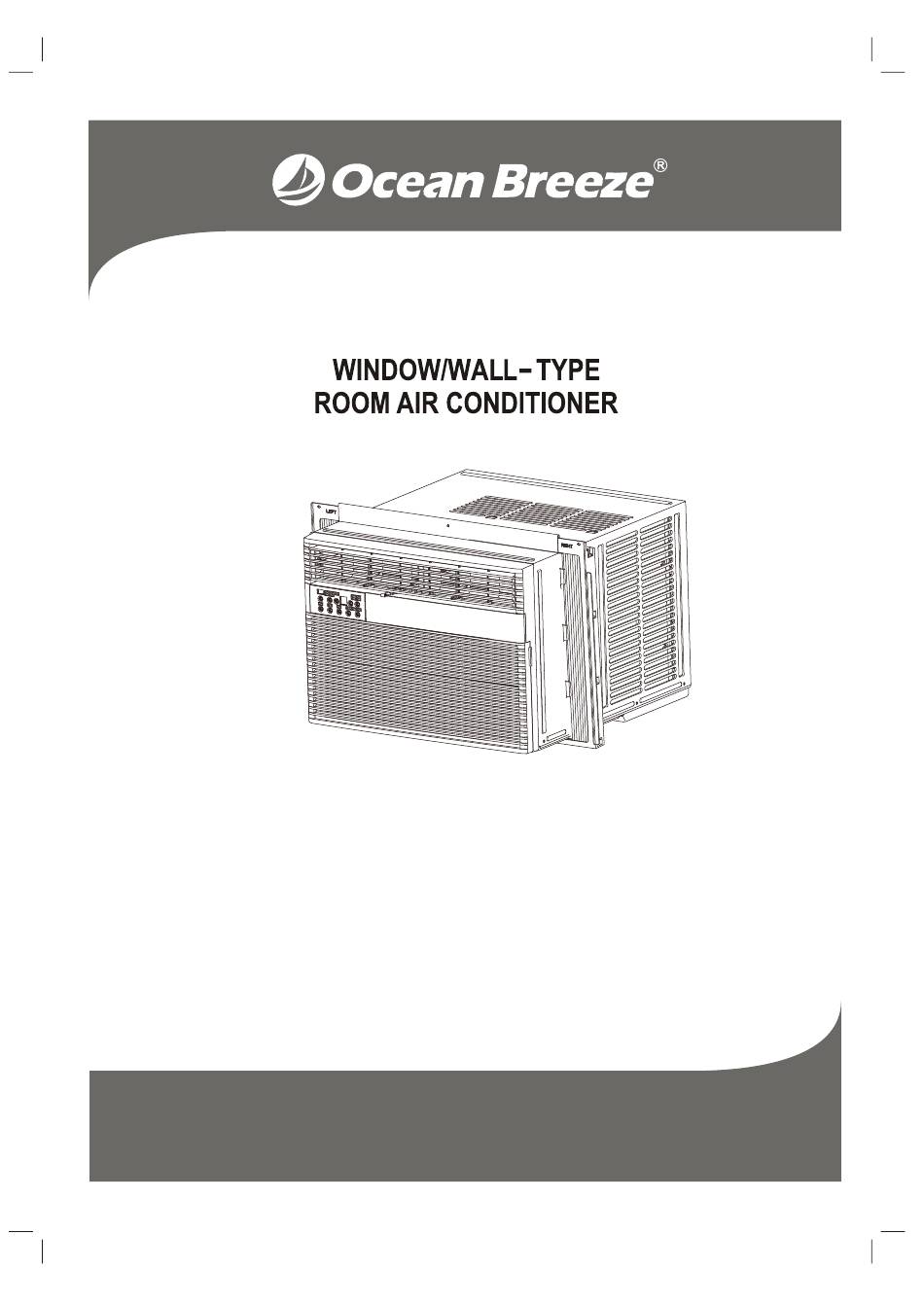

  • Page 1 ROOM AIR CONDITIONER ROOM AIR CONDITIONER ROOM AIR CONDITIONER ROOM AIR CONDITIONER ROOM AIR CONDITIONER ROOM AIR CONDITIONER MODEL: OBZ-12WESN For any service needs, call 1-866-277-7878 www.oceanbreezecomfort.com Before using this product, please read the instructions carefully and keep for future reference.

  • Page 2: Table Of Contents

    CONTENTS Important Safety lnstructions ............1-9 Installation lnstructions ..............10-13 Normal Sounds ..................14 Air Conditioner Features ..............14-16 Care and Cleaning .................17 Troubleshooting Tips ..............17-18...

  • Page 3: Important Safety Lnstructions

    IMPORTANT SAFETY INSTRUCTIONS READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of Troubleshooting Tips.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS CAUTION When the air filter is to be Do not put a pet or house plant Ventilate the room well when where it will be exposed to direct used together with a stove, etc. removed, do not touch the metal parts of the unit.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS WARNING NOTE: For Your Safety The power supply cord with this air Do not use gasoline or store any other flammable vapors and liquids in the vicinity conditioner contains a current detection of this or any other appliance. device designed to reduce the risk of fire.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS WARNING: ( for using R290/R32 refrigerant only) -Do not use means to accelerate the defrosting process to clean, other than those recommended by the manufacturer. -The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames or an operating gas appliance) and ignition (for example:an operating electric heater).
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS Explanation of symbols displayed on the Unit (For the unit adopts R32/R290 Refrigerant only): This symbol shows that this appliance uses a flammable refrigerant. If the WARNING refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. CAUTION This symbol shows that the operation manual should be read carefully.
  • Page 8 IMPORTANT SAFETY INSTRUCTIONS pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
  • Page 9 IMPORTANT SAFETY INSTRUCTIONS This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres.
  • Page 10 IMPORTANT SAFETY INSTRUCTIONS The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum.
  • Page 11 IMPORTANT SAFETY INSTRUCTIONS the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked. 15. Labelling Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant.

  • Page 12: Installation Lnstructions

    INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Read these instructions completely and carefully. IMPORTANT- Save these instructions for local inspector s use. IMPORTANT- Observe all governing codes and ordinances. Note to Installer Be sure to leave these 6000~8000Btu/h 10000~12000Btu/h 5000~6000Btu/h Model instructions with the Consumer. 14 (356mm) 15-1/2 (394mm) 13 (330mm) Note to Consumer...
  • Page 13 INSTALLATION INSTRUCTIONS C: Align the hole in the top rail with those in the top PREPARE THE WINDOW of the unit as shown in Fig.B Lower sash must open sufficiently to allow a clear Fig.B vertical opening of 13 inches (330mm). Side louvers and the rear of the AC must have clear air space to allow enough airflow through the condenser for heat removal.
  • Page 14 INSTALLATION INSTRUCTIONS B. Slide the free end " " section of the panel directly SECURE THE ACCORDION PANELS into the cabinet as shown in Fig. 2. Slide the panel A.Keep a firm grip on the air conditioner, carefully down. Be sure to leave enough space to slip the place the unit into the window opening so the bottom top and bottom of the frame into the rails on the of the air conditioner frame is against the window...
  • Page 15 INSTALLATION INSTRUCTIONS INSTALL WEATHER STRIPPING (only be applicable to Energy star models ) In order to minimize air leaks between the room air conditioner and the window opening, trim the weather Stripping with a proper length, peel off the protective backing and plug any gaps if needed (Fig.11).
  • Page 16 minutes after the compressor shuts off. The fan then cycles on for 2 minutes at 10 minute intervals until the room temperature is above the set temperature, at which time the compressor turns back on and cooling starts. ECO (ENERGY SAVER FEATURE): Press ECO button to initiate this function.

  • Page 18: Air Conditioner Features

    AIR CONDITIONER FEATURES DISPLAYS: Fresh Air Vent Control 10000~12000Btu/h models Displays DISPLAYS: hows the set temperature in C or F and the Auto-timer settings. While on Fan only mode, it shows the room temperature. Error codes: AS-Room temperature sensor error-Unplug the unit and plug it back in.

  • Page 19: Troubleshooting Tips

    CARE AND CLEANING Cabinet Cleaning Air Filter Cleaning Push the vent handle to the Vent Closed position Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may be dusted with an oil-free (where applicable).
  • Page 20 TROUBLESHOOTING TIPS Problem Solution Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section. Air conditioner cooling, but room Temperature is set too high, set temperature to a lower setting. is too warm- NO Air directional louvers positioned improperly. Position louvers for better air distribution. ice forming on cooling coil behind Front of unit is blocked by drapes, blinds, furniture, etc.
  • Page 24 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
