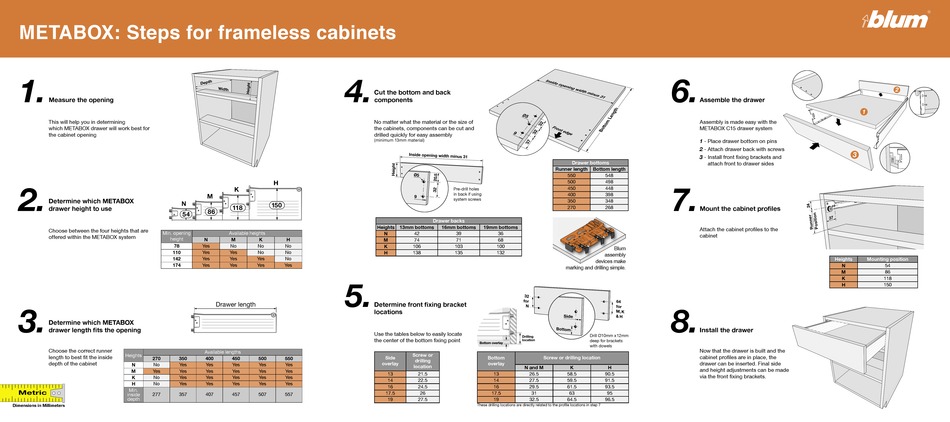

METABOX: Steps for frameless cabinets
1.
Measure the opening
This will help you in determining
which METABOX drawer will work best for
the cabinet opening
2.
Determine which METABOX
N
drawer height to use
��
Choose between the four heights that are
Min. opening
offered within the METABOX system
height
78
110
142
174
3.
Determine which METABOX
drawer length fits the opening
Choose the correct runner
Heights
length to best fit the inside
270 350
����
depth of the cabinet
N No Yes
M Yes Yes
K No Yes
H No Yes
Min.
������
277 357
inside
depth
Dimensions in Millimeters
4.
Cut the bottom and back
components
No matter what the material or the size of
the cabinets, components can be cut and
drilled quickly for easy assembly
(minimum 13mm material)
H
K
M
���
���
��
Heights 13mm bottoms
Available heights
N M K H
Yes No No No
Yes Yes No No
Yes Yes Yes No
Yes Yes Yes Yes
5.
������������� Determine front fixing bracket
locations
Use the tables below to easily locate
the center of the bottom fixing point
Available lengths
400 450 500 550
overlay
Yes Yes Yes Yes
Yes Yes Yes Yes
Yes Yes Yes Yes
Yes Yes Yes Yes
407 457 507 557
Runner length
Pre-drill holes
in back if using
system screws
Drawer backs
16mm bottoms 19mm bottoms
N 42 39 36
M 74 71 68
K 106 103 100
H 138 135 132
��������
��������
��������������
Screw or
Screw or drilling location
Side Bottom
drilling
overlay
location
N and M
13 21.5 13 26.5
14 22.5 14 27.5
16 24.5 16 29.5
17.5 26 17.5 31
19 27.5 19 32.5
These drilling locations are directly related to the profile locations in step 7
6.
Assemble the drawer
Assembly is made easy with the
METABOX C15 drawer system
1 - Place drawer bottom on pins
2 - Attach drawer back with screws
3 - Install front fixing brackets and
Drawer bottoms
attach front to drawer sides
Bottom length
550 548
500 498 7.
450 448
400 398
350 348
270 268 Mount the cabinet profiles
Attach the cabinet profiles to the
cabinet
Blum
assembly
devices make
marking and drilling simple.
Install the drawer
Drill Ø10mm x 12mm
deep for brackets
with dowels
Now that the drawer is built and the
cabinet profiles are in place, the
drawer can be inserted. Final side
K H
and height adjustments can be made
58.5 90.5
via the front fixing brackets.
59.5 91.5
61.5 93.5
63 95
64.5 96.5
2
1
3
Heights Mounting position
N 54
M 86
K 118
H 150
