USER MANUAL
Linear 50/72 Deep
50"/ 72"
AC 220-240V 50Hz 1400-1600W
WARNING
READ AND UNDERSTAND THIS ENTIRE OWNER'S MANUAL, INCLUDING ALL SAFETY
INFORMATION, BEFORE PLUGGING IN OR USING THIS PRODUCT. FAILURE TO DO
SO COULD RESULT IN FIRE, ELECTRIC SHOCK, OR SERIOUS PERSONAL INJURY.
25"
CAUTION
635mm
KEEP THIS OWNER'S MANUAL FOR FUTURE REFERENCE. IF YOU SELL OR GIVE
THIS PRODUCT AWAY, MAKE SURE THIS MANUAL ACCOMPANIES THIS PRODUCT.

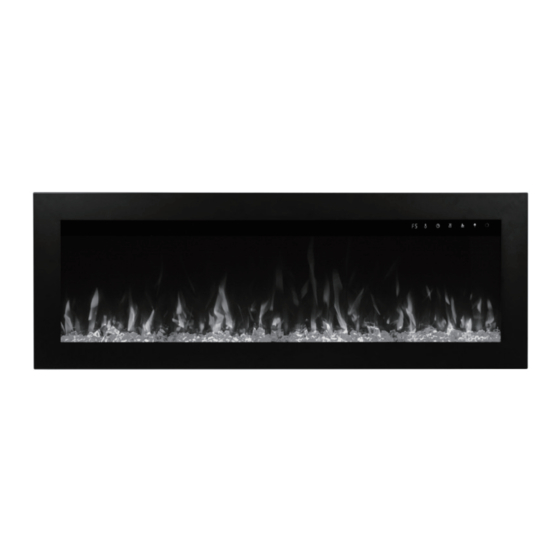

30" Built-in Electric Fireplace
ambefireplaces.com
630626_1
AC 120V 60Hz 1500W
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ambe Linear 50
Summary of Contents for ambe Linear 50
- Page 1 USER MANUAL Linear 50/72 Deep 50"/ 72" AC 220-240V 50Hz 1400-1600W WARNING READ AND UNDERSTAND THIS ENTIRE OWNER’S MANUAL, INCLUDING ALL SAFETY INFORMATION, BEFORE PLUGGING IN OR USING THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN FIRE, ELECTRIC SHOCK, OR SERIOUS PERSONAL INJURY.
-
Page 2: Important Safety Information
DO NOT use on soft surfaces, like a bed, bathrooms. where openings may become blocked. - Risk of electric shock- DO NOT OPEN! No user-serviceable parts inside. - DO NOT place clothing or other AMBE USER MANUAL - LINEAR 50/72 DEEP... - Page 3 - NEVER modify this fireplace. Doing - This fireplace is tested and listed for so could result in personal injury or use only with the accessories listed in property damage. Modification of this this manual. Use of other accessories fireplace completely voids all warranties. not specifically tested for this appliance could void the warranty and/or result in - ALWAYS turn this fireplace off before...
- Page 4 For support, inquiries and contact information visit ambehome.com Distributor Address: Escea Ltd 17 Carnforth Street, Green Island, Dunedin 9018, New Zealand...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Important Safety Information Dimensions Preparation dware Installation an A d ssembly Glass Fascia Installation Frameless Kit Installation Operation Car an d Maintenance Troubleshooting 630626_1... -
Page 6: Dimensions
DIMENSIONS Front View Side View 230mm 457mm 300mm 425mm Top View Linear 50 Linear 72 Model 1300mm 1808mm 1150mm 1660mm 1240mm 1748mm Fascia glass thickness: 6mm – – AMBE USER MANUAL - LINEAR 50/72 DEEP –... -
Page 7: Preparation
Front View Side View Front View 30 13/16” 13 ” 783mm 336mm 30 13/16” 783mm 13 1/4” Front View 336mm 13 1/4” PREPARATION 336mm 30 13/16” 783mm 13 1/4” 25” 24 1/4” THIS PRODUCT INCLUDES A GLASS PANEL! ALWAYS USE EXTREME 25 ”... -
Page 8: Installation An A D Ssembly
– – Keep packaging materials out of reach of children and Plastic bags are not toys, and should be kept away from children and infants. AMBE USER MANUAL - LINEAR 50/72 DEEP... -
Page 9: Glass Fascia Installation
GLASS FASCIA INSTALLATION Select a dry wall to open a hole for fireplace box. Size of cavity as shown in the table below: Model No. 1250mm 435mm 254mm Linear 50" 435mm 1758mm 254mm Linear 72" will not come in direct all local building codes Place the fireplace in a clean dry place. - Page 10 Have two people pull the glass fascia up, and then take them out of the fireplace box. Use the screw driver to take off the 8 screws as Below. AMBE USER MANUAL - LINEAR 50/72 DEEP...
- Page 11 Have two people take out the glass panel and move it to a clean area taking care to avoid scratching. Have two people lift the fireplace box and put it into the hole. Fix the FOUR wall screws in each side of the fireplace box.
- Page 12 Apply an even layer from side to side After placing the Decorative Crystals or Pebbles on the designed slot, fasten screws back on the glass panel and the metal trim. AMBE USER MANUAL - LINEAR 50/72 DEEP...
-
Page 13: Frameless Kit Installation
FRAMELESS KIT INSTALL ATION Remove the TWO screws as shown in the below picture. Take off the glass fascia 630626_1... - Page 14 Remove the four screws. Take off the two brackets. AMBE USER MANUAL - LINEAR 50/72 DEEP...
- Page 15 Place the left and right trims on the appliance and fix the part using the screws provided in the kit. Remove the relevant screws at the top and bottom of the appliance. – – – – – – – – –...
- Page 16 Place the top and bottom trims on the appliance and fix them using the screws removed in the previous step. Put the appliance into the wall opening and fix it with the screws provided. AMBE USER MANUAL - LINEAR 50/72 DEEP...
-
Page 17: Operation
OPERATION READ AND UNDERSTAND THIS ENTIRE OWNER’S MANUAL, INCLUDING ALL SAFETY INFORMATION, BEFORE PLUGGING IN OR USING THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN ELECTRIC SHOCK, FIRE, SERIOUS INJURY, OR DEATH. – – Power – Plug the power cord into an socket or hard wire the appliance. If you choose to hard wire the appliance, it MUST have a dedicated isolation switch accessible after installation. - Page 18 H2 - High heat LO - Heater button can be locked or unlocked by holding the Heater button for 5 seconds Controls the timer. Timer Settings: 00 30min 1h 2h 3h 4h 5h 6h 7h 8h AMBE USER MANUAL - LINEAR 50/72 DEEP...
- Page 19 BUTTON FUNCTION ACTION & INDICATION Controls the temperature. Temperature Settings: 640F [180C] 760F [240C] 660F [190C] 780F [250C] 680F [200C] 800F [260C] 700F [210C] 820F [270C] 720F [220C] and OFF 740F [230C] Note: To change temperature format from Fahrenheit to Celsius or vice versa, press and hold the temperature button for 5 seconds.
- Page 20 This remote control uses one CR2025 battery (included). NEVER DISPOSE OF BATTERIES IN FIRE. FAILURE TO OBSERVE THIS PRECAUTION MAY RESULT IN AN EXPLOSION. DISPOSE OF BATTERIES AT YOUR LOCAL HAZARDOUS MATERIAL PROCESSING CENTER. AMBE USER MANUAL - LINEAR 50/72 DEEP...
-
Page 21: Car An E D Maintenance
CARE AND MAINTENANCE Cleaning ALWAYS TURN THE FIREPLACE OFF AND UNPLUG THE POWER CORD FROM THE SOCKET BEFORE CLEANING, PERFORMING MAINTENANCE, OR MOVING THIS FIREPLACE. FAILURE TO DO SO COULD RESULT IN ELECTRIC SHOCK, FIRE, OR PERSONAL INJURY. NEVER IMMERSE IN WATER OR SPRAY WITH WATER. DOING SO COULD RESULT IN ELECTRIC SHOCK, FIRE, OR PERSONAL INJURY. - Page 22 When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge. AMBE USER MANUAL - LINEAR 50/72 DEEP...
-
Page 23: Troubleshooting
TROUBLESHOOTING WARNING DISCONNECT THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. PROBLEM POSSIBLE CAUSE SOLUTION 1. Fireplace turns 1. Fireplace has 1. Reset switch by turning main power off and will not overheated and safety switch off and waiting 10 minutes then... - Page 24 PLEASE REMEMBER TO ALWAYS HAVE THE UNIT DISCONNECTED PRIOR TO ANY WORK, ALWAYS LAY GLASS AS WELL AS THE UNIT ON A TOWEL OR OTHER MATERIAL NOT TO DAMAGE PARTS/FRAME. THIS ENTIRE PROCESS SHOULD NOT TAKE LONGER THAN 20-30 MINUTES AMBE USER MANUAL - LINEAR 50/72 DEEP...
- Page 28 ambefireplaces.com...
