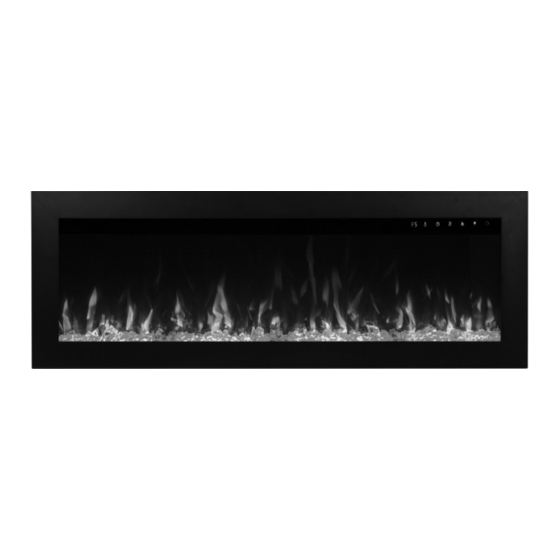

FULLY RECESSED ELECTRIC FIREPLACE
BEF-72BIF03 (Linear72)
BEF-50BIF03 (Linear 50)
Model#:
OWNER'S MANUAL
50"/ 72" - Built-in Electric Fireplace
AC 220-240V 50Hz 1400-1600W
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
WARNING
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.
Rev_1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ambe BEF-50BIF03
Summary of Contents for ambe BEF-50BIF03
- Page 1 FULLY RECESSED ELECTRIC FIREPLACE BEF-72BIF03 (Linear72) BEF-50BIF03 (Linear 50) Model#: OWNER’S MANUAL 50”/ 72” - Built-in Electric Fireplace AC 220-240V 50Hz 1400-1600W Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could WARNING result in fire, electric shock, or serious personal injury.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION! WARNING When using electrical appliances basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: Read all instructions before using this heater. This heater is hot when in use. To avoid burning, do not touch hot surface. If provided, use ... -
Page 3: Parts And Hardware
Preparation This product includes a GLASS panel! Always use extreme caution when handling glass. Failure to do so could result in personal injury or property damage. Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and assembly steps are grouped for free-standing or wall-hanging use. -
Page 4: Installation And Assembly
Installation and Assembly Front View of Fireplace Step 1. Find a safe location. Minimum clearance to flooring: 30 cm Choose a location near an outlet so an extension cord is not required. DO NOT position the unit directly below a power outlet. See Safety Information on pages 2 and 3 for warnings about safe placement, safe installation, and... -
Page 5: Installation
Installation STEP 1. Select a dry wall to open a hole for fireplace box. Size of cavity as below chart Model No. 1215mm 432mm 170mm BEF- 50BIF03 BEF- 72BIF03 1775mm 432mm 170mm Figure ( A ) - Page 6 Figure ( B ) STEP 2. Place the fireplace in a clean dry place. Use the screw driver to take off the TWO screws in both sides. Figure (B) Figure ( C )
- Page 7 STEP 3. Have two people pull the trim up, and then take them out of the fireplace box. Figure (C) Figure ( D ) STEP 4. Use the screw driver to take off the 8 screws as above Figure (D). Have two people take out the glass panel Figure (E) and move it to a clean area taking care to avoid scratching.
- Page 8 STEP 5. Have two people lift the fireplace box and put it into the hole. Fix the FOUR wall screws in each side of the fireplace box. Figure (F) Figure ( F ) STEP 6. Place the Decorative Crystals and Drift Log pieces on the designed slot and keep them even. Figure (G) Figure ( G ) STEP 7.
-
Page 9: Methods Of Operation
Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into an outlet or hard wire the appliance. If you choose to hard wire the appliance, it MUST have a dedicated isolation switch accessible after installation. - Page 10 Remote Control &Touch Panel Operation BUTTON FUNCTION ACTION & INDICATION ON: Enables control panel functions and 1. Press once. Indicator light turns on. remote control. Turns on flame effect. Power turns on. All functions enabled. OFF: Disables control panel functions and POWER remote control.
-
Page 11: Temperature Limiting Control
1. Press once: Touch panel indicator TEMPERATURE button: Turns heater on and off. becomes active. 2. Press again: until desired setting is NOTE: Press the button for 5 seconds, the ‘ Reached. Digital display shows temperature setting will switch from ℃ to setting circles as below: ℉. -
Page 12: Care And Maintenance
Care and Maintenance Cleaning ALWAYS turn the fireplace OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury. -
Page 13: Troubleshooting
Troubleshooting WARNING DISCONNECT THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. Problem Possible Cause Solution 1. Fireplace turns off 1. Fireplace has overheated 1. Reset switch by turning main and will not turn on. - Page 14 7. Heater does not 1. Thermal switch has been 1. Turn unit off and unplug unit provide heat when tripped. for 10 minutes. Plug back in and turned on. turn unit on. If plug cannot be reached, follow directions for tripped circuit breaker.
Need help?
Do you have a question about the BEF-50BIF03 and is the answer not in the manual?
Questions and answers
I have a flat panel fireplace model number BEF-50I. Recently it has been making sounds when switched on which sounds like a **** vibrating but im not sure what it is as i dont want start messing about with it. could you possibly give me an idea as to what it might be? thank you
A vibrating sound in the Ambe flat panel fireplace model BEF-50I when switched on could be caused by a loose flame rod due to rough transit or handling. The rod may be out of place and can be corrected by removing the glass, flipping the fireplace upside down, removing screws holding the bottom frame plate, and placing the flame rod back into position.
This answer is automatically generated
