24
23
22
25

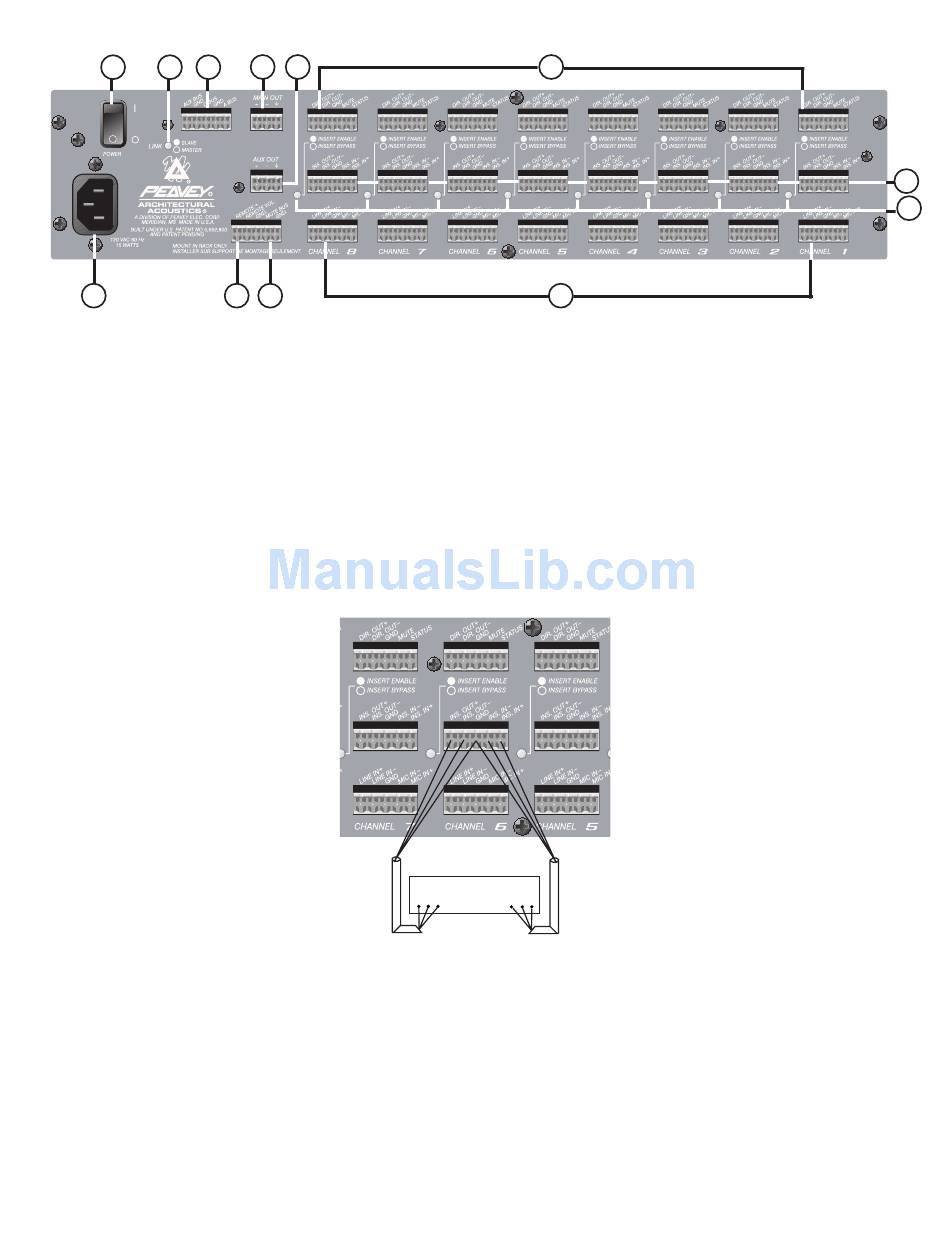

BACK PANEL FEATURES

14.
MIC INPUTS
For use with low impedance microphones or low level sources. This is a transformer balanced
input with an impedance of 2,000½. Input sensitivity for nominal output is -56dBu to -19dBu.

LINE INPUTS

These allow line level inputs to be used. This is a transformer balanced input through a 30dB
resistive pad. Input impedance is >20k½.
15.
INSERT IN/OUT
This is a signal loop that allows an external device such as an EQ to be inserted into the
signal path of individual channels (refer to diagram below).
16.
INSERT BYPASS SWITCH
When no signal processor is being used or bypassing the signal processor is desired, this
switch should be in the ÒinÓ position. If a signal processor is being used, then this switch
should be in the ÒoutÓ position.
17.

DIRECT OUTPUTS

Each channel has direct output terminals that can be used for recording or anytime the out-
put of an individual channel is required. This signal is independent of ÒAutomixÓ gain manipu-
lation. The nominal output level is 2.21dBu (1 Volt).
18
19
20
21
17
14
Insert In/Out
IN
OUT
G - +
+ - G
CEQ 280a
6
15
16
