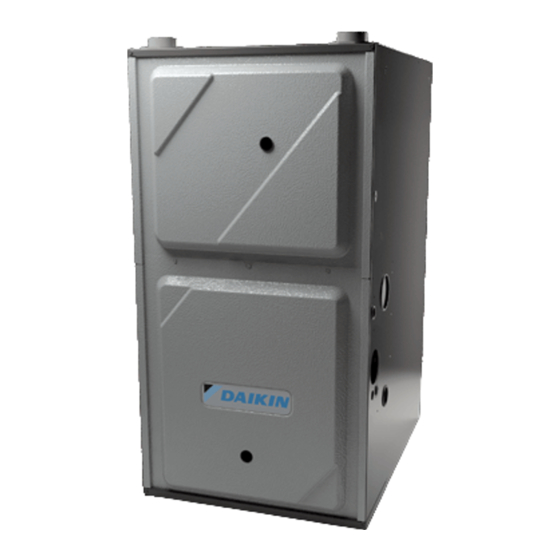

Daikin DC96SN Installation Instructions Manual

Single-stage gas furnace
Hide thumbs Also See for DC96SN:
Table of Contents

Advertisement

Quick Links

Installation Instructions for
DM92SN, DM96SN, & DC96SN
Single-Stage Gas Furnace
(Type FSP CATEGORY IV Direct
or Non Direct Vent Air Furnace)
(Type FSP CATÉGORIE IV Direct
ou four á air soufflé non direct)
These furnaces comply with requirements
embodied in the American National Standard
/ National Standard of Canada ANSI
Z21.47·CSA-2.3 Gas Fired Central Furnaces.
s a professional installer you have an obligation to know the
A
product better than the customer. This includes all safety
precautions and related items.
Prior to actual installation, thoroughly familiarize yourself
with this Instruction Manual. Pay special attention to all
safety warnings. Often during installation or repair it
is possible to place yourself in a position which is more
hazardous than when the unit is in operation.
Remember, it is your responsibility to install the product
safely and to know it well enough to be able to instruct a
customer in its safe use.
Safety is a matter of common sense...a matter of thinking
before acting. Most dealers have a list of specific good safety
practices...follow them.
The precautions listed in this Installation Manual are
intended as supplemental to existing practices. However,
if there is a direct conflict between existing practices and
the content of this manual, the precautions listed here take
precedence.
IOD-2029A
02/2022
Installer:
Affix all manuals
adjacent to the unit.
Our continuing commitment to quality products may mean a change in specifications without notice.
© 2021-2022
19001 Kermier Rd., Waller, TX 77484
NOTE: Please contact your distributor or our website
*
for the applicable Specification Sheet referred to in this
manual.
ONLY PERSONNEL THAT HAVE BEEN TRAINED TO INSTALL, ADJUST,
SERVICE OR REPAIR(HEREINAFTER, "SERVICE") THE EQUIPMENT
SPECIFIED IN THIS MANUAL SHOULD
SERVICE THE EQUIPMENT. THE MANUFACTURER WILL NOT BE
RESPONSIBLE FOR ANY INJURY OR PROPERTY DAMAGE ARISING
FROM IMPROPER SERVICE OR SERVICE PROCEDURES. IF YOU SERVICE
THIS UNIT, YOU ASSUME RESPONSIBILITY FOR ANY INJURY OR
PROPERTY
DAMAGE WHICH MAY RESULT. IN ADDITION, IN
JURISDICTIONS THAT REQUIRE ONE OR MORE LICENSES TO SERVICE
THE EQUIPMENT SPECIFIED IN THIS
MANUAL, ONLY LICENSED PERSONNEL SHOULD SERVICE THE
EQUIPMENT.
IMPROPER INSTALLATION, ADJUSTMENT, SERVICING OR REPAIR OF
THE EQUIPMENT SPECIFIED IN THIS MANUAL, OR ATTEMPTING TO
INSTALL, ADJUST, SERVICE OR REPAIR THE EQUIPMENT SPECIFIED IN
THIS MANUAL WITHOUT PROPER TRAINING MAY RESULT IN PRODUCT
DAMAGE, PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
DO NOT BYPASS SAFETY DEVICES.
90% HEX
www.daikincomfort.com
INSTALLATION INSTRUCTIONS
RECOGNIZE THIS SYMBOL
AS A SAFETY PRECAUTION.
WARNING
WARNING
HEAT EXCHANGER
DO NOT LIFT
PRODUCT USING
