Daikin DM96SE Series Manual

■
Standard Features
• Heavy-duty stainless-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Single-stage gas valve
• Durable Silicon Nitride igniter
• Multi-speed blower motor
• Self-diagnostic control board with constant
memory fault code history output to a LED
• California Low NO x emissions-compliant models available
• Can no longer be installed in California's South Coast Air
Quality Management District (SCAQMD) on or after
October 1, 2019.
• AHRI Certified; ETL Listed
SS-DM96SE
■
Cabinet Features
• Designed for multi-position installation:
DM96SE: upflow, horizontal left or right
DC96SE: downflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting
• Convenient left or right connection
for gas and electrical service
• Cabinet air leakage (Q
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with easy-cut tabs
for effortless removal in bottom air-inlet applications
* Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive the Lifetime Heat Exchanger Limited
Warranty (good for as long as you own your home), the 6-Year Unit Replacement Limited Warranty and the 12-Year Parts Limited Warranty,
online registration must be completed within 60 days of installation. Additional requirements for annual maintenance are required for the Unit
Replacement Limited Warranty. Online registration and some of the additional requirements are not required in California or Québec.
www.daikincomfort.com

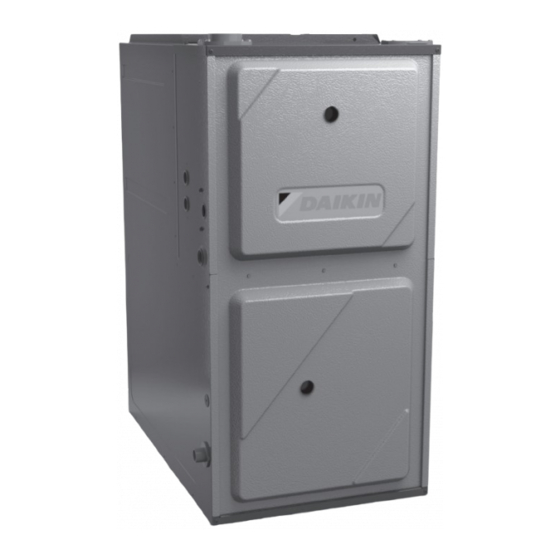

DM96SE / DC96SE
Single-Stage, Multi-Speed
ECM Gas Furnace
Up to 96% AFUE
Heating Input: 40,000 –120,000 BTU/h
■
Contents
Nomenclature ........................................ 2
Product Specifications ........................... 3
Dimensions ............................................ 5
Airflow Data ........................................... 7
− DM96SE .............................................. 7
− DC96SE ............................................. 10
Wiring Diagram .................................... 14
Accessories .......................................... 15
) ≤ 2%
Leak
12/21
Supersedes 03/20
