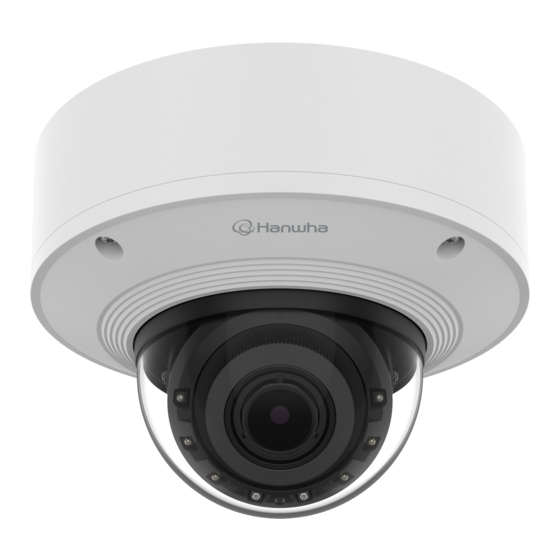

Hanwha Vision PNV-A6081R-E2T User Manual
Hide thumbs Also See for PNV-A6081R-E2T:

Advertisement

Quick Links

NETWORK CAMERA
User Manual
PNV-A6081R-E1T
PNV-A6081R-E2T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNV-A6081R-E2T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hanwha Vision PNV-A6081R-E2T

  • Page 1 NETWORK CAMERA User Manual PNV-A6081R-E1T PNV-A6081R-E2T...
  • Page 2 Network Camera User Manual Copyright ©2023 Co., Ltd. All rights reserved. Hanwha Vision Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 22. Although a rapid change in temperature could cause frost inside the dome, there will be no problem with the video. 23. This device has been verified using STP cable. The use of appropriate GND grounding and STP cable 1.
  • Page 4 When a new product box is opened (or during the initial use of the product), moisture might build up on the glass of the camera. The built-up moisture disappears naturally within a few PNV-A6081R-E1T/PNV-A6081R-E2T hours after powered on. Risk Group 1 Do not arbitrarily loosen or tighten the gore valve.
  • Page 5: Table Of Contents

    CONTENTS OVERVIEW WEB VIEWER Important Safety Instructions Connecting to the Camera Recommended PC Specifications Password setting Video output Login Optional Accessories for Installation Camera Web Viewer Setup What’s Included At a Glance APPENDIX Troubleshooting INSTALLATION & CONNECTION Installation Adjusting the monitoring direction for the camera Connecting with other Device NETWORK CONNECTION AND...
  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS VIDEO OUTPUT • CPU : Intel(R) Core(TM) i7 3.4 GHz or higher • The CVBS type of video output is initially set to NTSC. This may vary for different regions, so refer to the following directory to change the settings if necessary. •...
  • Page 7: Optional Accessories For Installation

    OPTIONAL ACCESSORIES FOR INSTALLATION You can purchase appropriate optional accessories available. Hanging Mount Backbox * This mount can be used after being attached to hanging mount SBP-156LMW (Parapet Mount) SBP-300CMW1 (Ceiling Mount) SBP-900CMW (Ceiling Mount) SBP-150CMI (Ceiling Mount) SBV-180WW SBP-300CMI (Ceiling Mount) SBP-156CMW (Ceiling Mount) SBP-300WMW (Wall Mount) SBP-300WMW1 (Wall Mount)
  • Page 8: What's Included

    overview WHAT’S INCLUDED AT A GLANCE As for each sales country, accessories are not the same. Mount-plate SSD cover Camera-case Camera-module Pipe-cover Dome-cover IR LED Power port (DC 12 V) Illumination Sensor Network Port Use installation screws of at least M4, L30 for the installation of this product. Reset button Separator strap Zoom/Focus...
  • Page 9: Installation & Connection

    installation & connection INSTALLATION 2. Take off the lens cover protecting the camera lens. This camera is waterproof and in compliance with the IP67 / IP6K9K spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. Precautions before installation Ensure you read out the following instructions before installing the camera: •...
  • Page 10 installation & connection Inserting a SSD 2. Insert the SSD into the SSD slot on the camera bottom in the direction of the arrow. SSD recommended specs • Recommended capacity : 1TB, 2TB • Recommended Manufacturers : Transcend Before installing the camera, the SSD should be inserted while the power source and the body are separated. Do not forcefully insert it in the reverse direction.
  • Page 11 Removing a SSD 3. Fasten the screw to secure the SSD. Remove in the reverse order of "Inserting a SSD". Before removing the SSD, in <Setup ( )>-<Event>-<Storage>, set the device to <Off> and press the [Apply] button and turn the camera off. If you turn off the camera or remove the SSD that contains data from the product, the data may be lost or damaged.
  • Page 12 installation & connection Installation (mount plate) [Installing using pipe] 2-1. Attach the installation template and drill holes for screws and cables. [Directly installing on wall/ceiling] 1-1. Attach the installation template on the desired surface and drill holes for screws and cables. 2-2.
  • Page 13 2-3. Place the pipe on the mount plate. 1-4. Mount the cable bushing to the camera case. 2-4. Fix the mount plate using appropriate screws. 2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe. Installation (camera case) [Installing the network cable] (IP66) Use a cable bushing compliant with the network cable to be connected.
  • Page 14 installation & connection 2-3. Mount the cable bushing to the camera case. 4. Join the mount plate with the camera case. TR20 [Installing audio/alarm cables] 3-1. Mount the cable bushing of the provided audio/alarm cables to the camera case. 14_ installation & connection...
  • Page 15 Installing the camera module Assembling the dome cover 1. Connect the network/power/audio/alarm cables to the camera module terminal. [Directly installing on wall/ceiling] 2. Attach the camera module to the case. 1. Assemble the dome cover. A magnet is embedded at the bottom of the module Make sure to firmly tighten the fastening screws so that there is no water damage issue.
  • Page 16 installation & connection Outdoor installation [Using Weather cap] 1. Remove the screws from the dome cover. When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside. 1.
  • Page 17: Adjusting The Monitoring Direction For The Camera

    ADJUSTING THE MONITORING DIRECTION FOR THE CAMERA Adjust the direction of IR LEDs not to hinder their view by an instrument. Tilt Lens rotation ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. At this time, rotating the main body of the camera in the left and right direction is called PAN, and adjusting the angle of the camera is called TILT.
  • Page 18: Connecting With Other Device

    Cable Length (Max.) Ethernet Power 14 m PNV-A6081R-E1T/ Monitor for installation DC 12V PNV-A6081R-E2T 23 m Network Cable Specification The Test Monitor Out port of the product is provided for easier installation, and is not recommended for monitoring purposes. Item Contents Remark...
  • Page 19 Connecting to Audio Input/Output • Audio Codec - Audio In : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz), G.726 ADPCM (Bit Rate: 16Kbps, 24Kbps, 32Kbps, 40Kbps / Sampling Frequency: 8kHz), AAC (Bit Rate: 48Kbps / Sampling Frequency: 16kHz) - Audio Out : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz) •...
  • Page 20 installation & connection Connecting to the I/O port box To connect to an external sensor Connect the Alarm I/O cable to the corresponding port of the port box. Connect one strand of each signal line (2-strand) of the sensors to the [ALARM IN] port, and connect the other strand to the [GND] port.
  • Page 21: Network Connection And Setup

    network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.
  • Page 22: Using Device Manager

    If using a Broadband Router • IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Support>-<Online Tools> menu at Hanwha Vision website ex) 192.168.1.2~254, 192.168.0.2~254, (https://www.HanwhaVision.com).
  • Page 23: Manually Registering Camera

    AUTOMATICALLY CONFIGURING IP Configuring Dynamic IP Receive IP address from DHCP 1. Click the camera from the list that you want to automatically • Example of the Dynamic IP environment configure the IP. PNO-A6081R-E1T - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2.
  • Page 24: Port Range Forward (Port Mapping) Setup

    network connection and setup PORT RANGE FORWARD (PORT MAPPING) SETUP Setting up Port Range Forward for several network cameras • You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page. If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the •...
  • Page 25: Connecting To The Camera From A Shared Local Pc

    CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run device manager. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. Access to the camera can also be gained by typing the camera’s IP address in the address bar of the Internet browser.
  • Page 26: Connecting To The Camera

    web viewer web viewer CONNECTING TO THE CAMERA Connecting via Bonjour 1. Run the client or operating system in support of the Bonjour protocol. Normally, you would 2. Click the camera name for search. 1. Launch the Internet browser. In the Mac operating system, click the camera name searched from the Bonjour tab of Safari. - The login window is displayed.
  • Page 27: Password Setting

    PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 digits, you must use at least 3 of system over the network.
  • Page 28: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION Voice is not recorded even though When an Windows 10 user accesses y You must enable the <Audio In> check box in <Basic> - <Video Profile>. y This is what happens when microphone driver has been set to Realtek driver. audio input settings are configured.
  • Page 29 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Hanwha Vision cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.
