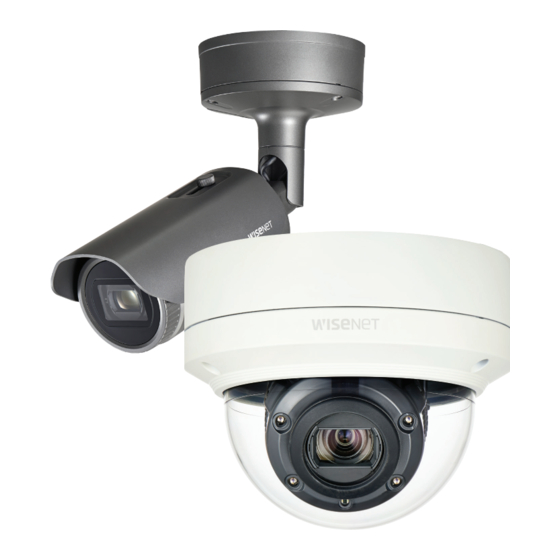

- Page 1 P AI series WiseAI application – Vehicle Counting USER GUIDE DESCRIPTION OF VEHICLE COUNTING WISEAI APPLICATION SETTINGS CAMERA INSTALLATION GUIDE SENSING PERFORMANCE LIMITATIONS...
- Page 2 CONTENTS DESCRIPTION OF VEHICLE COUNTING WISEAI APPLICATION SETTINGS 1.1 Vehicle Counting Scenario CAMERA INSTALLATION GUIDE 3.1 Recommended Camera Installation Conditions SENSING PERFORMANCE LIMITATIONS...
- Page 3 Description of Vehicle Counting Vehicle counting is a function for estimating the number of vehicles that cross the lines set by the user on the monitoring screen. 1.1 Vehicle Counting Scenario • After the center of the vehicle moves from a distance that is as far away from the set line as the size of the vehicle and crosses the line, the vehicle is counted when it moves further away than a distance the size of the vehicle.
- Page 4 WiseAI application settings In WiseAI, the vehicle counting function can operate in the following way. Run [WiseAI App]. Click [Statistics] on the top tab. Click [Vehicle counting]. Installation Guide 4 | WiseAI Application– Vehicle Counting...
- Page 5 Click the On button ( ) at the top to enable the vehicle counting function. Set the lines and direction of movement where you need to count vehicles. You can set up to two lines, and you can add, edit, and delete them. You can change the direction of vehicle movement by clicking After selecting the set line, you can reset the line.
- Page 6 Camera installation guide The vehicle counting function provides optimal performance when installed and operated according to this installation guide. Since the AI video statistics function built into the camera can be affected by the surrounding lighting or the camera angle, please refer to the following information and install it carefully for optimal performance.
- Page 7 3.1 Recommended Camera Installation Conditions These are the recommended installation conditions for ensuring stable vehicle counting performance. The recommended minimum installation conditions for the camera are a height of 3 m or more, angle of 45° or more. Objects can be detected from at least 5 m from the camera installation location. For stable detection, it is recommended to install the camera at a side-view angle.
- Page 8 Sensing performance limitations The vehicle counting function may experience degradation in detection performance depending on the installation location and status of the camera. The following is a guide for situations in which detection performance is degraded. The vehicle counting function does not work in areas set to [Exclude area]. If a vehicle is loitering near the line (e.g.
- Page 9 For more information, visit us at www.HanwhaVision.com 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do • A/S and technical inquiries TEL 1588.5772 • Website: www.HanwhaVision.com • Head Office Sales TEL 070.7147.8771-8 FAX 031.8018.3715 © 2023 Hanwha Vision Co., Ltd. All rights reserved.
