Summary of Contents for ONE Limosa

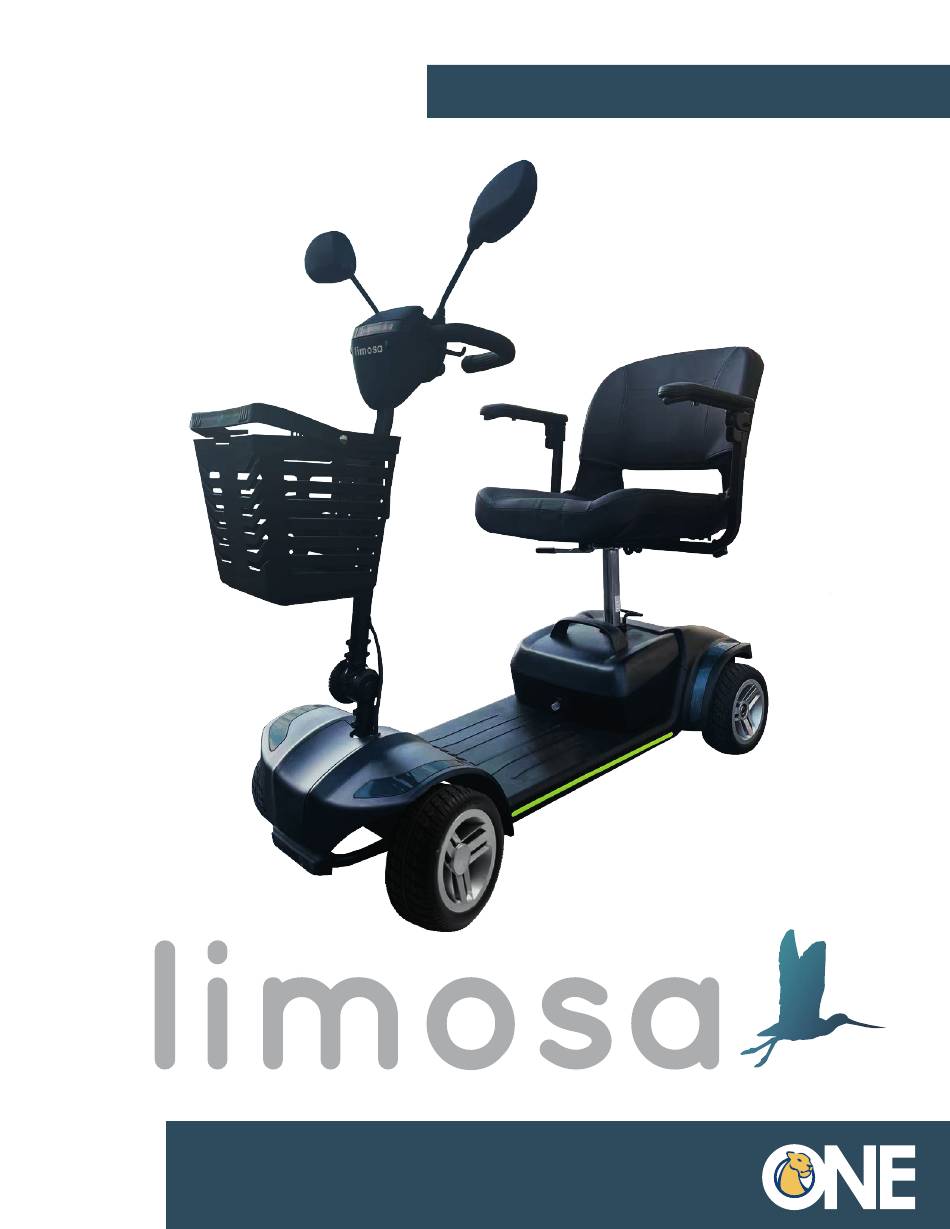

- Page 1 Mobility Scooter OWNER’S MANUAL ver 2023.01.03E...
-
Page 2: Table Of Contents
Mobility Scooter OWNER’S MANUAL Contents 1. Preface ......................2. Safety Notice ....................3. Safety Guidelines ..................3.1 General ....................3.2 Product Safety Symbols ..............3.3 Modi cation ..................3.4 Safety Check ..................3.5 Weight Capacity ................. 3.6 Transporting Your Scooter .............. 3.7 Incline Guidelines ................ - Page 3 10.16 Disposal of Your Mobility scooter ..........11. Speci cations ....................12. Warranty ......................12.1 Two (2) Year Limited Warranty ............12.2 One (1) Year Limited Warranty ............12.3 Not Covered Under Warranty ............12.4 Batteries ....................12.5 Service Checks and Warranty Service .........
-
Page 4: Preface
Mobility Scooter OWNER’S MANUAL 1. Preface Congratulations! You are now the owner of a new Mobility Scooter from Loh Medical! Thank you for choosing us to help improve your mobility and independence. This scooter is made by quali ed and committed personnel. It is designed and produced according to high-quality standards guarded. -
Page 5: Safety Notice
Mobility Scooter OWNER’S MANUAL 2. Safety Notice • Be aware the device is a small Mobility Scooter and is designed mainly for indoor use. Extreme care should be taken when cornering and negotiating drops, obstacles, and gradients. • Always ensure the Mobility Scooter is fully folded out before sitting on the scooter. - Page 6 Mobility Scooter OWNER’S MANUAL • Keep metal objects away from the battery terminals. Electric shock may occur. • Always reduce your speed and maintain a stable center of gravity when cornering. Do not corner sharply when driving scooters at higher speeds, and reduce speed before cornering.
- Page 7 Mobility Scooter OWNER’S MANUAL • Do not take your Mobility Scooter on roads or highways. • Do not use your Mobility Scooter if you are under the in uence of alcohol, medicines, or other substances that may in uence your driving abilities. •...
-
Page 8: Safety Guidelines
Mobility Scooter OWNER’S MANUAL 3. Safety Guidelines 3.1 General Before operating your Mobility Scooter, fully read and understand this Owner’s Manual. Users may encounter di cult maneuvering situations such as narrow doorways, traveling up and down ramps, cornering, and traveling on uneven terrain. - Page 9 Mobility Scooter OWNER’S MANUAL Manufactured. Contact your local recycling center or authorized provider for information on proper recycling of product components. Indicates component is for indoor use only. Contains Lead. Your product must be disposed of according to applicable local and national statutory regulations. Contact your local recycling center or authorized provider for information on proper disposal of product components.
- Page 10 Mobility Scooter OWNER’S MANUAL Indicates that explosive conditions exist. Corrosive chemicals contained in batteries. Pinch/Crush points exist. Indicates a mandatory action that should be performed as speci ed in order to avoid a hazardous condition/situation. Failure to perform mandatory actions can lead to personal injury and/or equipment damage.
- Page 11 Mobility Scooter OWNER’S MANUAL D = Drive (Brakes engaged; unit in Drive Mode) Indicates a prohibited action that should not be performed at any time or in any circumstances. Performing a prohibited action can cause personal injury and/or equipment damage. Do not use batteries with di erent amp-hour (Ah) capacities.
- Page 12 Mobility Scooter OWNER’S MANUAL Indicates ammable material. Do not expose to heat sources such as open ame or sparks. Do not transport batteries with ammable or combustible items. Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Maintain and store in a clean and dry condition.
-
Page 13: Modi Cation
Provider for assistance. 3.5 Weight Capacity This Mobility Scooter is designed and produced solely to transport one person with a maximum weight of 136kg. It is not designed to transport goods or objects or use other than the transport previously described. -
Page 14: Incline Guidelines
Mobility Scooter OWNER’S MANUAL In order to ensure the safety of the user and to ensure that the Mobility Scooter is not damaged during handling, only the following positions should be lifted: a. The handle of the rear shell. b. Steering column. c. Front bumper truck, or car boot. -
Page 15: Physical Limitations
3.9 Physical Limitations This Mobility Scooter is designed and produced solely to transport one person with a maximum weight of 136kg, and the user must have good eyesight, Lucid consciousness . You must exercise awareness, caution, care, and common sense when operating your scooter. -
Page 16: Fireproof Performance
Mobility Scooter OWNER’S MANUAL The EMI waves can cause unintentional movement of the scooter or damage to the controller. Every electrically-powered mobility device has a resistance to EMI. The higher the resistance level, the greater the protection. The intensity of the interference can be measured in volts per meter, V/m. At this time, current technology is capable of achieving an immunity level of 20 V/m, which provides protection from more common sources of EMI. -
Page 17: Your Product
Mobility Scooter Mobility Scooter OWNER’S MANUAL 4. Your Product The scooter is easy to operate and is primarily intended for indoor use. It is foldable, which makes it very compact to store or transport. The following picture shows all parts that are relevant for the user/driver. In the operation and maintenance section, these parts are described if applicable. -
Page 18: Manual Freewheel Lever
Mobility Scooter Mobility Scooter OWNER’S MANUAL 4.1 Manual Freewheel Lever Whenever you need or want to push your Travel Scooter for short distances, you can put it in freewheel mode. 1. Locate the manual freewheel lever at the top right of the rear frame. 2. -
Page 19: Battery Condition Meter
Mobility Scooter OWNER’S MANUAL Figure 2. Operating console 1. Battery condition meter 4. Speed adjusment dial 2. Throttle control lever 5. Horn 3. Key switch 4.2 Battery Condition Meter When the key is fully inserted into the key switch to power up your scooter, this meter indicates approximate battery strength. -
Page 20: Key Switch
Mobility Scooter OWNER’S MANUAL 4.4 Key Switch • Insert the key into the key switch to power up (turn on) your Travel Scooter. • Pull the key out of the key switch to power down (turn o ) your Travel Scooter. -
Page 21: Operation
Mobility Scooter OWNER’S MANUAL 5. Operation 5.1 Before getting onto your Travel Scooter • Have you fully charged the batteries? See 9. “Batteries and Charging. ” • Is the manual freewheel lever in the drive (rearward) position? Never leave the manual freewheel lever in the forward position unless you are manually pushing your Travel Scooter. -
Page 22: Operating Your Travel Scooter
Mobility Scooter OWNER’S MANUAL 5.4 Operating your Travel Scooter WARNING – The following can adversely a ect steering and stability while operating your Travel Scooter: • Holding onto or attaching a leash to walk your pet. • Carrying passengers (including pets). •... -
Page 23: Getting O Of Your Travel Scooter
Mobility Scooter OWNER’S MANUAL 5.5 Getting o of your Travel Scooter 1. Bring your Travel Scooter to a complete stop. WARNING – Never attempt to get onto or o of your Travel Scooter without rst removing the key from the key switch. This will prevent the Travel Scooter from moving if accidental throttle control lever contact is made. -
Page 24: Comfort Adjustment
Mobility Scooter OWNER’S MANUAL 6. Comfort Adjusment 6.1 Delta tiller And Rear View Mirrors Adjustment (Optional) Figure 3. Delta tiller And Rear View Mirrows It is possible to adjust the rear view mirrors: 1. Move the cap ③ upwards. 2. Loosen the mirror screw. 3. -
Page 25: Tillers Angle Adjustment (Optional)
Mobility Scooter OWNER’S MANUAL 6.2 Tillers Angle Adjustment (Optional) Option 1 Option 2 Figure 4. Tiller Adjusment Knobs Tiller option 1: The Tiller is held in place by a knob. It supports only two states, includes vertically locked and unlocked. It has no angle adjustment function. •... -
Page 26: Seat Rotation Adjustment
Mobility Scooter OWNER’S MANUAL 6.3 Seat Rotation Adjusment The seat rotation lever, located on the right side of the seat base, secures the seat into several positions. See gure 5. 1. Pull up on the seat rotation lever to disengage the seat. 2. -
Page 27: Seat Height Adjustment
Mobility Scooter OWNER’S MANUAL 6.5 Seat Height Adjusment The seat can be repositioned to di erent heights. See gure 6. 1. Remove the seat and battery pack from your Travel Scooter. 2. Use the attached ring to pull and remove the detent pin from the lower seat post. -
Page 28: Disassembly And Assembly
Mobility Scooter OWNER’S MANUAL 7. Disassembly And Assembly 7.1 Disassembly You can disassemble the Travel Scooter into several pieces: ① the seat, ② the rear frame, ③ the front frame, ④ the basket, ⑤ the battery pack. No tools are required to disassemble or assemble your Travel Scooter. -
Page 29: Frame Separation
Mobility Scooter OWNER’S MANUAL 7.3 Frame Separation ATTENTION – Before attempting assembly, tilt the rear half of the Travel Scooter slightly back on the anti-tip wheels as shown in gure 8. Identi cation key 1. Frame Hook 2. Lower Frame Tube Figure 8. -
Page 30: Basic Troubleshooting
Mobility Scooter OWNER’S MANUAL 8. Basic Troubleshooting WARNING – If the battery symbol light is ashing on the battery gauge then the scooter has detected a fault. In this happens, follow the procedure below: Release the drive control lever, then switch the scooter o and on. - Page 31 Mobility Scooter OWNER’S MANUAL Flash Description Meaning Current Limit Time-out The motor has been exceeding its or Controller too hot maximum current rating for too long. • The scooter may have stalled. Turn the controller o , leave for a few minutes and turn back on again.
-
Page 32: Batteries And Charging
Mobility Scooter OWNER’S MANUAL 9. Batteries And Charging Read the battery charging instructions in this manual before charging the batteries. The battery condition meter on the tiller console indicates the approximate strength of your batteries using a color code. From right to left on the meter, green indicates fully charged batteries, yellow a draining charge, and red indicates that an immediate recharge is necessary. -
Page 33: Battery Operation And Charging
Mobility Scooter OWNER’S MANUAL Your Mobility Scooter is designed to operate ideally between -10ºC ~ 50ºC (-14ºF to 122ºF). In extremely cold conditions, your batteries may freeze depending on the battery charge, usage, and composition of the batteries. In extremely hot conditions, your Mobility Scooter may operate at a slower speed. - Page 34 Mobility Scooter OWNER’S MANUAL WARNING – Removal of grounding prongs can create an electrical hazard. If necessary, properly install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug access. WARNING – Never use an extension cord to plug in your battery charger.
-
Page 35: Care And Maintenance
Mobility Scooter OWNER’S MANUAL 10. Care And Maintenance Your mobility scooter requires a minimal amount of care and maintenance. If you do not feel con dent in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorized provider. -
Page 36: Battery Terminal Connections
Mobility Scooter OWNER’S MANUAL 10.5 Battery Terminal Connections Make certain that the terminal connections remain tight and are not corroded. 10.6 Wiring Harnesses • Regularly check all wiring connections. • Regularly check all wiring insulation, including the charger power cord, for wear or damage. -
Page 37: Yearly Checks
Mobility Scooter OWNER’S MANUAL • Check for extreme wear on the anti-tip wheels. Replace them as necessary. • Check for tire wear. See your authorized provider for repair. • Keep your Mobility Scooter clean and free of foreign material, such as mud, dirt, hair, food, drink, etc. -
Page 38: Storing Your Travel Scooter
Mobility Scooter OWNER’S MANUAL 10.15 Storing Your Travel Scooter If you plan on not using your Mobility Scooter for an extended period of time, it is best to: • Fully charge its batteries prior to storage. • Remove the battery pack from the Mobility Scooter. •... -
Page 39: Disposal Of Your Mobility Scooter
Mobility Scooter OWNER’S MANUAL Batteries that are regularly and deeply discharged, infrequently charged, stored in extreme temperatures, or stored without a full charge may be permanently damaged, causing unreliable performance and limited service life. It is recommended that you charge the Mobility Scooter batteries periodically throughout periods of prolonged storage to ensure proper performance. -
Page 40: Speci Cations
Mobility Scooter OWNER’S MANUAL 11. Specifications Model Limosa Type Scooter, rear wheel drive, Class A 136kg Max. weight of user 8 km/h Max. speed (driving forward) 8 km/h: 1500mm Min. braking distance at max. speed Endurance mileage 24V12Ah AGM Battery: 15km... - Page 41 Mobility Scooter OWNER’S MANUAL We reserve the right to introduce technical changes. Measurement tolerance ± 15 mm /1,5 kg / 1,5° . * The theoretical action radius reduces if the scooter is frequently used on slopes, rough surfaces or to climb kerbs. The maximum driving distance is tested in ideal circumstances according to ISO7176-4.
- Page 42 Mobility Scooter OWNER’S MANUAL Disclosure information (ISO) min. max. min. max. Overall length with Seat plane angle 1045mm 1045mm 9° 9° legrest Overall width 485mm 485mm E ective seat depth 410mm 410mm 1045mm 1045mm 435mm 435mm Folded length E ective seat width Seat surface height 485mm 485mm...
-
Page 43: Warranty
Mobility Scooter OWNER’S MANUAL 12. Warranty Warranty conditions 1. The repair or replacement will be carried out by an authorized Dealer/Service Agent. 2. To apply the warranty conditions, should your scooter require attention under these arrangements, notify the designated Service Agent, immediately giving full information about the nature of the di culty. -
Page 44: Service Checks And Warranty Service
Mobility Scooter OWNER’S MANUAL (i) The scooter or part not having been maintained in accordance with the manufacturer’s recommendations, where such exist. Or failing to use only the speci ed original equipment parts. (ii) The scooter or part having been damaged due to neglect, accident, or improper use. -
Page 45: Appendix I : Emc Compliance Information
Mobility Scooter OWNER’S MANUAL Appendix I : EMC compliance information Guidance and Manufacturer’s Declaration Below cables information are provided for EMC reference. Max. cable length, Cable Number Shielded/unshielded 170cm Unshielded AC Power AC Power Line 1 Set CC Power Line 170cm Unshielded 1 Set... - Page 46 Mobility Scooter OWNER’S MANUAL EMI Compliance Table (Table 1) Table 1 - Emission Compliance Electromagnetic environment Issue CISPR 11 RF emissions Home healthcare environment Group 1, Class B IEC 61000-3-2 Harmonic distortion Home healthcare environment Class A IEC 61000-3-3 tuations Home healthcare environment Compliance EMS Compliance Table (Table 2-5)
- Page 47 Mobility Scooter OWNER’S MANUAL Table 3 – Proximity elds from RF wireless communications equipment Immunity test levels Test frecuency Band (MHz) (MHz) Home healthcare environment 380-390 Pulse modulation 18Hz, 27V/m 430-470 FM, ±5kHz deviation, 1kHz sine, 28V/m 704-787 Pulse modulation 217Hz, 9V/m 800-960 Pulse modulation 18Hz, 28V/m 1720...
- Page 48 Mobility Scooter OWNER’S MANUAL Table 5 - Signal input/output parts Port Immunity test levels Basic EMC Issue standard Home healthcare environment 3V, 0.15MHz-80MHz Conducted 6V in ISM bands and amateur radio bands disturbances IEC 61000-4-6 between 0.15MHz and 80MHz induced b 80%AM at 1kHz ver 2023.01.03E...
