Summary of Contents for Boundaryline SLEEKWALL Solid

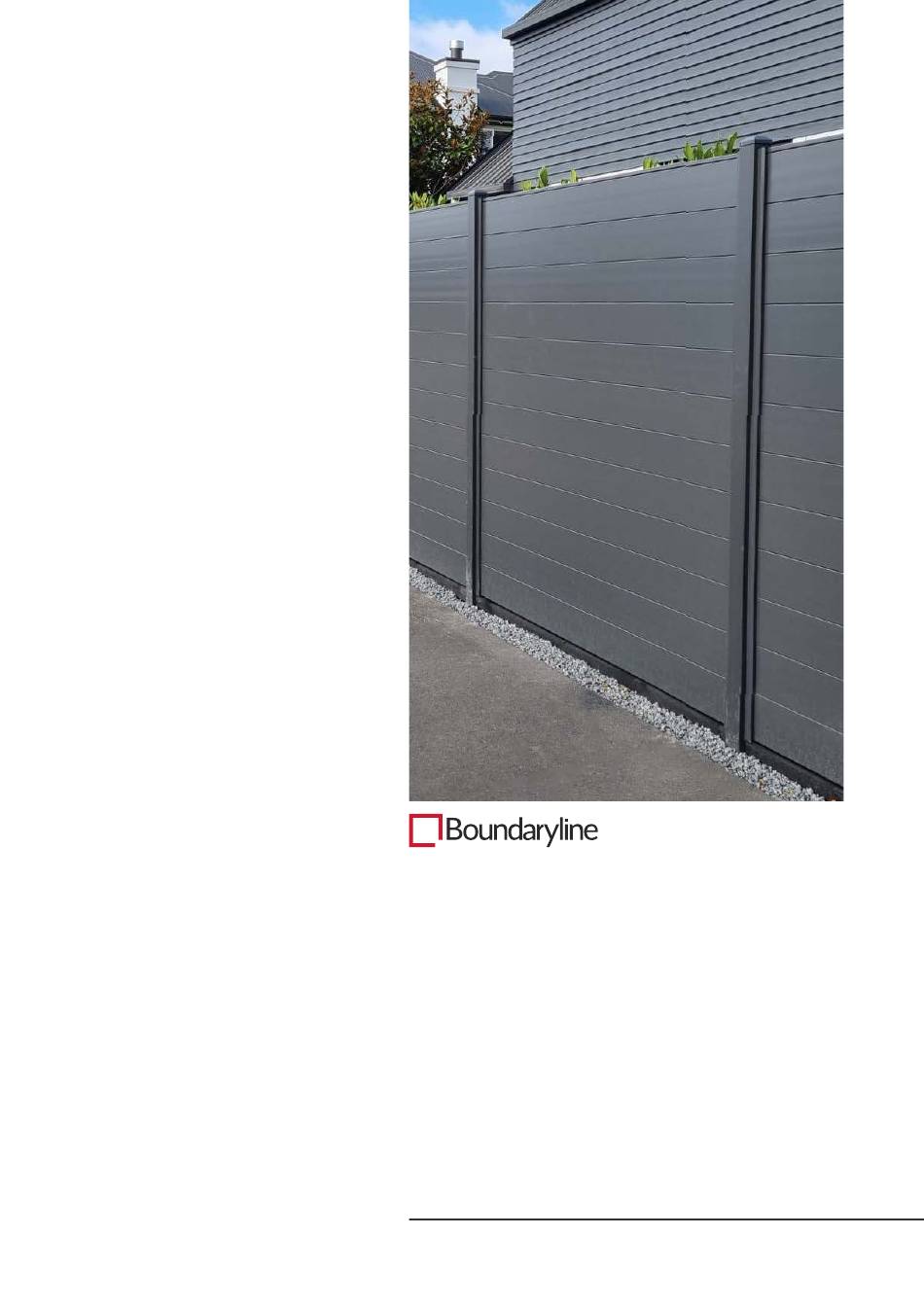

- Page 1 Install Guide SLEEKWALL Solid A step-by-step guide to installing your new fence Version 1.0...
- Page 2 Boundaryline SleekWall Solid Install Guide Introduction Thank you for choosing Boundaryline SleekWall The recommendations detailed in this guide Solid Fencing. This product will provide you with are formulated along the lines of good building many years of trouble free protection if installed practice.
-
Page 3: Components List
Boundaryline SleekWall Solid Install Guide Components List Required for this product These items below are not included but one type of post and cap are required for installation. 145x16x1780mm TGV Paling 65x65 in-ground post 30x30 paling channel Tek screws 65x65 flanged post... - Page 4 Boundaryline SleekWall Solid Install Guide Step 1 | Lay out your fence line Accurately determine & mark any legal boundaries and/or underground services (a surveyor may be required) b. Measure out each fence line & mark the post positions Determine post centres as follows...
- Page 5 Boundaryline SleekWall Solid Install Guide For in-ground posts Step 3a | Installing the posts - In-ground Place the post into the hole and set the height carefully using a tape measure or, preferably, a laser level Caution: Ensure you allow enough height on the post to allow for panel height + ground clearance (suggest 50-100mm) + additional 25mm for bracket &...
- Page 6 Boundaryline SleekWall Solid Install Guide Paling channel installation Step 4 | Fitting paling channels If your channels are not the desired length then these will need to be cut, ideally, with a dropsaw to obtain a clean cut without heating the aluminium to a point that it burns the powdercoating.
- Page 7 Boundaryline SleekWall Solid Install Guide Paling installation Step 5 | Fitting palings Post to be 10mm higher for the post cap See vertical conversion guide on pg 9 to change the orientation of your fence. The palings have a groove one side and a tongue on the other, so they interlock when stacked on each other.
- Page 8 Boundaryline Vertical Conversion Guide Vertical conversion guide How to convert the orientation of your SleekWall Solid fence. Fitting bottom paling Post Depending on the total width of the bay, the maximum post width face to face is 1800mm. Lay the additional slat horizontal and screw fix on either end.
-
Page 9: Frequently Asked Questions
Boundaryline SleekWall Solid Install Guide Frequently asked questions Can this product be used as a balustrade over 1m What is the best method to cut aluminium? high? For the best results, use a drop saw with an No, as we do not have PS1 F4 Building aluminium cutting blade.
