Summary of Contents for Boundaryline ELITEWALL ALUMINIUM SLAT

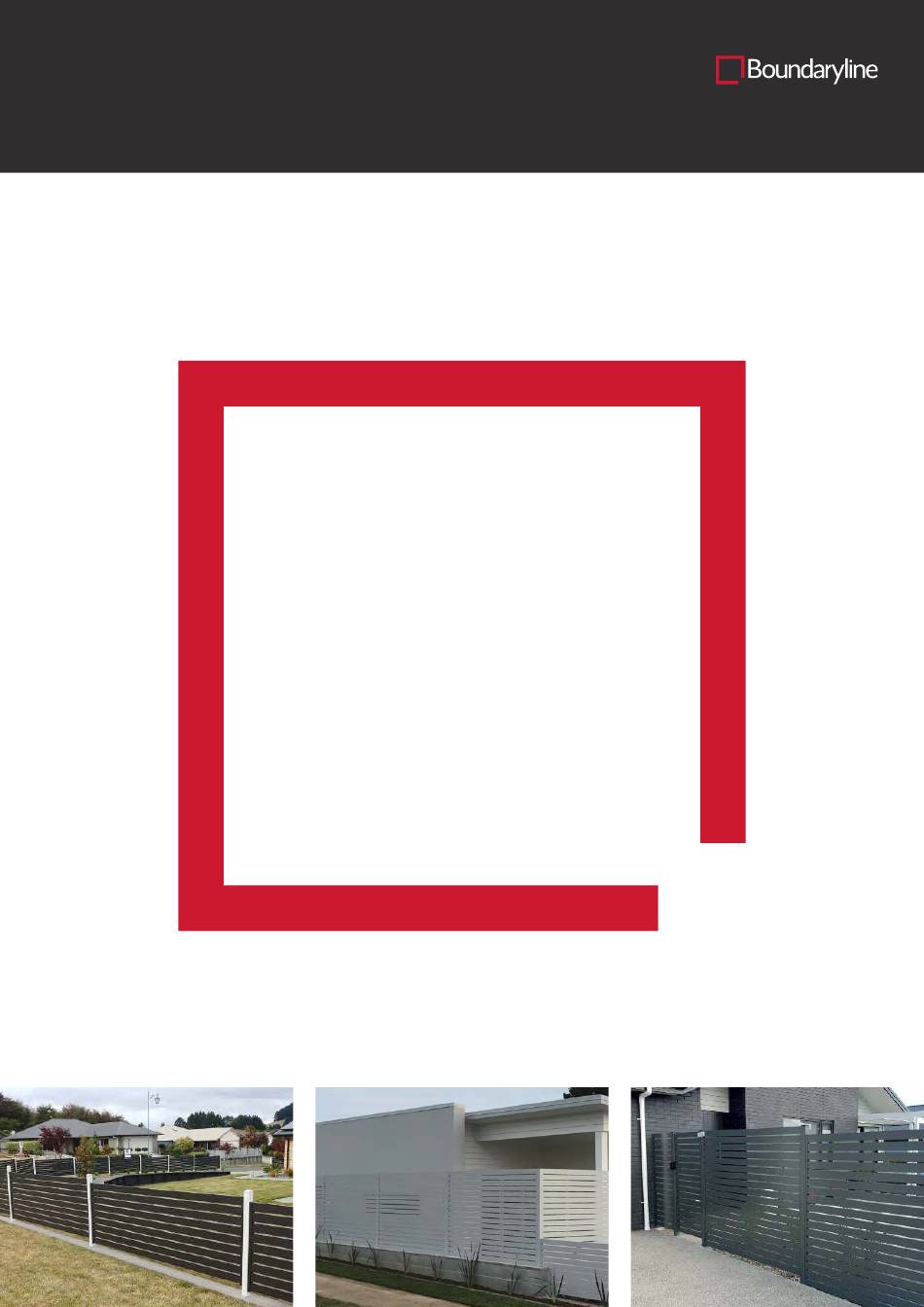

- Page 1 ELITEWALL STEP-BY-STEP GUIDE A STEP-BY-STEP GUIDE TO INSTALLING YOUR FENCE ALUMINIUM SLAT INSTALL GUIDE...
-
Page 2: Tools List
If your fence is greater fencing. that 1.8m, please seek further Make sure you are aware of Check the delivered material advice from Boundaryline. underground services before for the correct number of Describe your site details you start digging! These could... -
Page 3: Components List
85 x 85 x 1.2mm 60 x 25 x 1.2mm ALUMINIUM POST SLAT SLAT Special Order Only CHANNEL ENDS CAPS, SLAT END PLASTIC KNOCK IN LEFT AND RIGHT 100mm 130mm TEC SCREWS CONCRETE FIXINGS TIMBER FIXINGS 0800 003 006 boundaryline.co.nz... -
Page 4: Post Installation
Cyclonic wind area, on the top of a hill, adjacent to an escarpment, on a ridge, or in terrain category 1, you will need engineering advice beyond the scope of this publication. 0800 003 006 boundaryline.co.nz... - Page 5 Please contact IMPORTANT BelAire directly for The Diameter of your holes 1800mm 600mm this information. should be larger enough to have a minimum of 75mm 2100mm 600mm 100 x 100 post required clearance around the post. 0800 003 006 boundaryline.co.nz...
- Page 6 If you have your string line always touching the post you can risk pushing it slightly every time and the Set String Line approx. 5mm of post result will be an ‘arc’ in the line of the wall. 0800 003 006 boundaryline.co.nz...
- Page 7 Masonry block wall is not recommended. This can cause the 65 x 65mm flanged 100 x 100mm welded face of a block to fixing (post slides flanged post ‘blow-out’ onto fixing) 0800 003 006 boundaryline.co.nz...
- Page 8 Slat Channel Profile IMPORTANT The slat channel is asymmetrical, to ensure your fence aesthetically looks correct, make sure the “screw port side” is all facing the same direction (Generally on the inside our your property looks best) 0800 003 006 boundaryline.co.nz...
- Page 9 We do Not One screw per slat is recommend the all that’s required. slats are to be fitted with less than 5mm gaps between each slat. This may cause capillary action and cause corrosion to the slat system. 0800 003 006 boundaryline.co.nz...
- Page 10 IMPORTANT It is important that the object you use to tap the cover clip in with won’t damage the powder coating. Do not use the metal part of your hammer, this will cause scratches or dents. 0800 003 006 boundaryline.co.nz...
- Page 11 We have two options available: - Powder-coated Aluminium that fit externally (Apply a small DOB of glue/silicone to hold in place.) - Plastic Knock in caps that fit Internally. (Friction Fit) powdercoated plastic knock Aluminium post cap in post cap 0800 003 006 boundaryline.co.nz...
- Page 12 Once the two slats have been cut to length they can be fully inserted into the side channels and screwed in at the bottom and also up the side. This will securely hold it in place. 0800 003 006 boundaryline.co.nz...
- Page 13 “out side slat” then divide this space up with the amount of slats you would like to have. (As shown below in the image) Total length divided by 8 Slats 800mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 85 x 25 slats Bottom Support Slat 0800 003 006 boundaryline.co.nz...
-
Page 14: Frequently Asked Questions
10mm gaps between each slat. purposes. https:/ /www.building.govt.nz/buildingcode- We have a range of fences that are suitable for compliance/f-safety-of-users/poolsafety/ balustrade applications for further information - contact enquires@boundaryline.co.nz WHAT THE BEST METHOD TO CUT HOW DO I SET UP MY POSTS AROUND ALUMINIUM? AN ANGLE? - Page 15 INSTALLED IMAGES FINISHED PROJECTS IMAGES 0800 003 006 boundaryline.co.nz...
- Page 16 0800 003 006...
