Boundaryline SLEEKWALL SOLID Install Manual

Hide thumbs Also See for SLEEKWALL SOLID:

Advertisement

Quick Links

Download this manual
SLEEKWALL SOLID
A STEP-BY-STEP GUIDE TO INSTALLING YOUR FENCE
INSTALL
GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLEEKWALL SOLID and is the answer not in the manual?

Questions and answers

Related Manuals for Boundaryline SLEEKWALL SOLID

Summary of Contents for Boundaryline SLEEKWALL SOLID

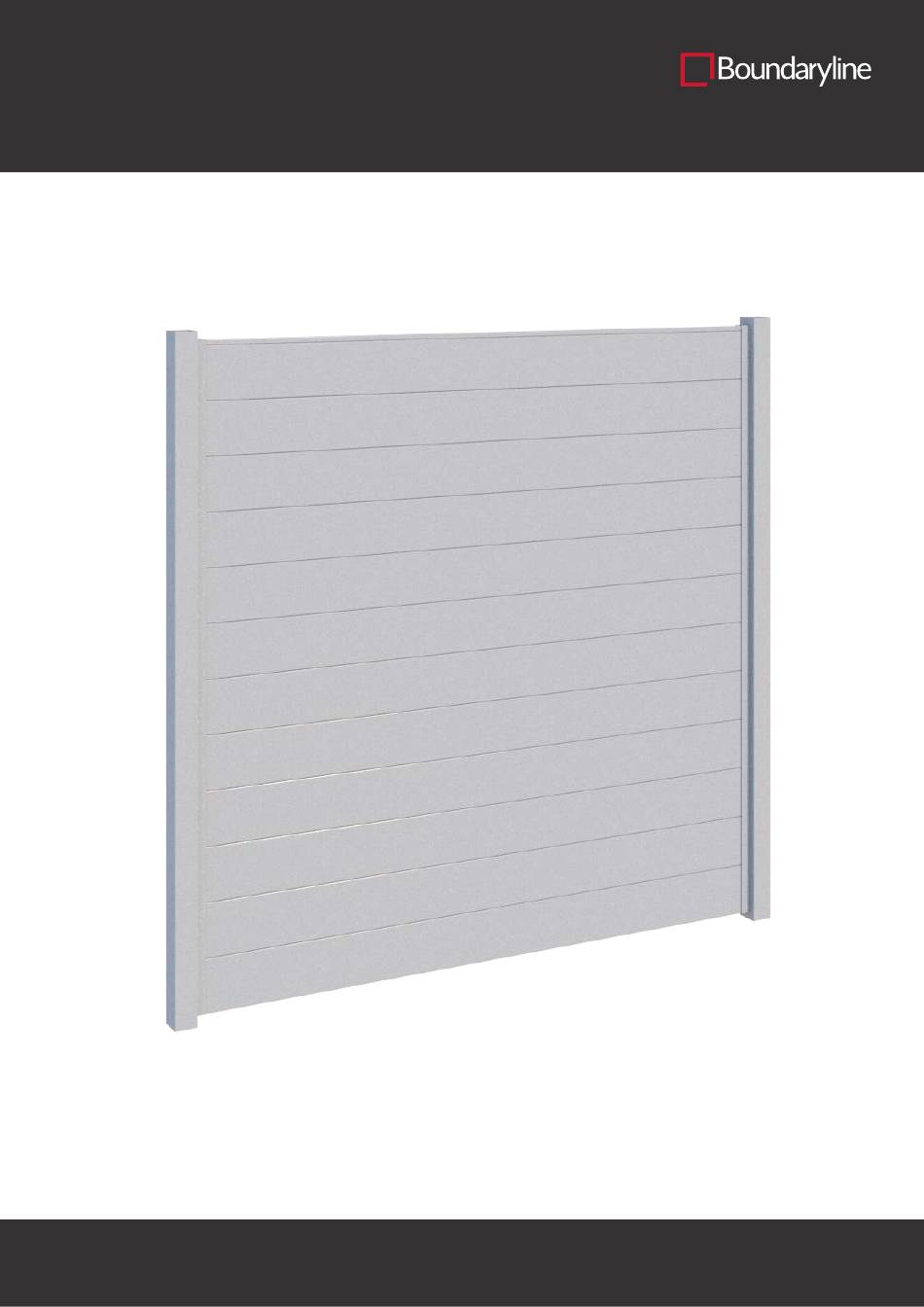

  • Page 1 SLEEKWALL SOLID A STEP-BY-STEP GUIDE TO INSTALLING YOUR FENCE INSTALL GUIDE...

  • Page 2: Tools List

    INTRODUCTION The recommendations detailed If you have any questions, Thank you for choosing Boundaryline SleekWall Solid in this guide are formulated please contact our Technical Fencing. This product will along the lines of good Team on 0800 003 006. We building practice.

  • Page 3: Components List

    COMPONENTS KITSET COMPONENTS LIST Required for this product 145 x 16 x 1780mm 30 x 30 PALING CHANNEL CHANNEL COVER CLIP TGV PALING CHANNEL ENDS CAPS, LEFT TONGUE COVER TEK SCREWS & RIGHT These items are not included but one type of post and 65 x 65 IN-GROUND POST 65 x 65 FLANGED POST...

  • Page 4: Post Installation

    GUIDE GUIDE STEP-BY-STEP STEP-BY-STEP POST INSTALLATION STEP 1 DETERMINE THE FENCE LINE, POSTHOLE DEPTH AND CENTRES We recommend you plan your fence set out/post Determine your posthole centres using the table position on a piece of paper to save unnecessary below as a guide and mark out your posthole digging.
  • Page 5 GUIDE STEP-BY-STEP POST INSTALLATION STANDARD ‘POST CENTRE TO POST CENTRE’ GUIDE The table below allows you to work out what This also shows the in-between measurements, your post centres will be. If you have 1780mm should you be fitting your paling between posts paling [allowing for 10mm either side for the other than a 65 x 65 profile, i .e.
  • Page 6 GUIDE STEP-BY-STEP IN-GROUND POST INSTALLATION STEP 2 (A) POST SETUP AND ALIGNMENT Working to a string line on the face of the post, insert the first post into the hole and gradually pour in the concrete. Continually check the post alignment with a spirit level as the concrete is being poured. Avoid using quick setting concrete as it Allow 75mm min from...
  • Page 7 GUIDE GUIDE STEP-BY-STEP STEP-BY-STEP FLANGED POST INSTALLATION STEP 2 (B) POST SETUP AND ALIGNMENT Ensure that you have marked out the placement of your posts thoroughly. Failure to do so will cause unnecessary holes in the surface of your concrete or timber. The same principal of the gap between a string line and the posts works for both in-ground and flanged posts, this will ensure a straight line of posts.
  • Page 8 GUIDE STEP-BY-STEP PALING CHANNEL INSTALLATION FITTING PALING CHANNELS STEP 3 If your channels are not the desired length then these will need to be cut, ideally with a drop saw to obtain a nice clean cut with out heating the aluminium to a point that it burns the powder coating. With the use of a tape measure, string line/chalk line or if you have access to a laser level you can mark the heights of the top of your slat channel on your posts.
  • Page 9 GUIDE STEP-BY-STEP PALING INSTALLATION FITTING PALINGS STEP 3 The palings have a groove one side and a tongue the other so that they interlock when stacked on each other. Starting at the bottom, slide and screw the first paling into the channel with the tongue up. Then slide the next paling in with its groove locking over the tongue, and repeat until they are all stacked.
  • Page 10 GUIDE STEP-BY-STEP COVER CLIP INSTALLATION INSERT CHANNEL COVER CLIP STEP 5 Once all your palings have been assembled you can now install the “Cover Clip”to the channel to hide all visible fixings. Make sure the cover clip is the same length as your “Paling Channel” then you are ready to go. The easiest way to do this is to use either a rubber mallet or the rubber handle of your hammer.
  • Page 11 GUIDE STEP-BY-STEP CAPPING INSTALLATION FITTING CHANNEL CAPS STEP 6 Once all the palings have been installed, we have an optional cap to cover the profile of the slat channel system. These consist of a left and right hand cap. Left & Right Channel Caps Channel Cap Install Guide - SleekWall...

  • Page 12: Frequently Asked Questions

    FAQS FREQUENTLY ASKED QUESTIONS CAN THIS BE USED FOR POOL HOW DO I SET UP MY POSTS AROUND FENCING? ANGLES? Yes, however, the wall needs to be a minimum of You will need to use two posts for this, the 1200mm high.
  • Page 13 0800 003 006 boundaryline.co.nz...
