Summary of Contents for BK Precision 9200B Series

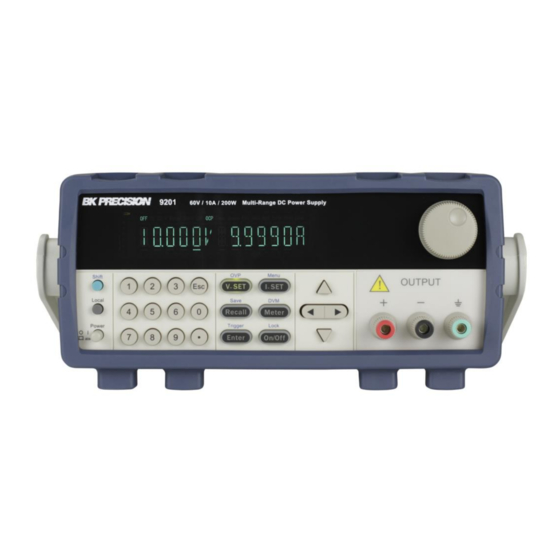

- Page 1 9200B Series Multi-Range DC Power Supply Models: 9201B, 9202B, 9205B, 9206B USER MANUAL 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 2: Safety Summary
Safety Summary The following safety precautions apply to both operating and maintenance personnel and must be followed during all phases of operation, service, and repair of this instrument. Before applying power to this instrument: • Read and understand the safety and operational information in this manual. •... - Page 3 You must ensure that each accessory you use with this instrument has a category rating equal to or higher than the instrument's category rating to maintain the instrument's category rating. Failure to do so will lower the category rating of the measuring system. Electrical Power This instrument is intended to be powered from a CATEGORY II mains power environment.
- Page 4 • In air temperatures exceeding the specified operating temperatures. • In atmospheric pressures outside the specified altitude limits or where the surrounding gas is not air. • In environments with restricted cooling air flow, even if the air temperatures are within specifications.
- Page 5 Under certain conditions, even with the power cord removed, dangerous voltages may exist when the covers are removed. To avoid injuries, always disconnect the power cord from the instrument, disconnect all other connections (for example, test leads, computer interface cables, etc.), discharge all circuits, and verify there are no hazardous voltages present on any conductors by measurements with a properly-operating voltage-sensing device before touching any internal parts.
- Page 6 Use correctly sized wires To connect a load to the power supply, use a wire diameter large enough to handle the maximum continuous output short-circuit current of the power supply without the wire overheating. For continued safe use of the instrument •...
-
Page 7: Compliance Statements
Compliance Statements Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This product is subject to Directive 2002/96/EC of the European Parliament and the Council of the European Union on waste electrical and electronic equipment (WEEE), and in jurisdictions adopting that Directive, is marked as being put on the market after August 13, 2005, and should not be disposed of as unsorted... - Page 8 CE Declaration of Conformity This instrument meets the requirements of 2006/95/EC Low Voltage Directive and 2004/108/EC Electromagnetic Compatibility Directive with the following standards. Low Voltage Directive EN61010-1: 2001 EMC Directive EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 EN 61000-4-2 / -3 / -4 / -5 / -6 / -11 EN 61326-1: 2006 viii 1.888.610.7664...
-
Page 9: Safety Symbols
Safety Symbols Refer to the user manual for warning information to avoid hazard or personal injury and prevent damage to instrument. Electric Shock hazard On (Supply). This is the AC mains connect/disconnect switch on the front of the instrument. Off (Supply). This is the AC mains connect/disconnect switch on the front of the instrument. -
Page 10: Table Of Contents
Table of Contents Safety Summary ....................ii Compliance Statements ......................vii Safety Symbols ..........................ix General Information ..................1 Product Overview ......................1 Package Contents ......................1 Product Dimensions ......................2 Rackmount Installation..................... 2 Front Panel Overview ....................... 4 Front Panel Description ......................4 Keypad Overview ...................... - Page 11 Configure Voltage and Current Output ................15 Setting Voltage ........................15 Setting Current ........................16 Remote Sense ........................16 Voltage/Current Measurement ..................18 SYSTEM Menu ........................ 18 Voltage Limit Setting ......................18 Configure Overcurrent Protection (OCP) ................19 Configure Power-On State ..................... 19 Remote Communication Configuration ................
- Page 12 SYSTEM Subsystem ......................36 TRIGGER Subsystem ....................... 38 SOURCE Subsystem ......................38 MEASUREMENT Commands ................... 42 LIST Commands ......................44 Troubleshooting Guide ................46 General ..........................46 Remote Control ........................46 Specifications ..................... 47 Calibration ....................48 SERVICE INFORMATION ..................49 LIMITED THREE-YEAR WARRANTY ..............
-
Page 13: General Information
Volt/Amp combination within the rated voltage and current limits. Each model in the 9200B Series comes standard with USB and RS-232 communication interfaces for remote control. -
Page 14: Product Dimensions
The instrument can be installed in a standard 19-inch rack using the optional IT-E151 rackmount kit. Below is an image of a 9200B Series model installed with the IT-E151 rackmount kit. Note: Remove the carrying handle and the two plastic ears before mounting the instrument. To remove the handle, grasp the handle by its sides, pull outwards, and rotate it until the arrow on the handle and the arrow on the plastic ears are in opposite directions. - Page 15 To rackmount a single instrument, order rackmount kit IT-E151 Side view of rackmounting a single instrument To rackmount two instruments side-by-side, order rackmount kit IT-E151, the front cover panel is not needed. 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 16: Front Panel Overview
1.5 Front Panel Overview Figure 1 Front Panel View Front Panel Description VFD display Shift key Local key Power key Numeric keys Function keys Cursor keys Output terminal Rotary knob 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 17: Keypad Overview
1.6 Keypad Overview Figure 2 Keypad View Keypad Description Shift key Enables access to secondary functions (Labeled in blue) Local key Sets the instrument back to local mode. Power key Power on the instrument. Numeric keypad Enters numeric values for various parameters. Vset / OVP button Configures output voltage or sets the overvoltage protection point for the power supply. -
Page 18: Rear Panel Overview
Up/Down arrow keys Used to select menu items or increase/decrease output voltage or output current values. Esc key Cancel and return to previous menu. 1.7 Rear Panel Overview Rear Panel Description Cooling fan RS-232 interface USB interface AC power input receptacle Fuse box DVM input terminal Remote sense terminal... -
Page 19: Display Overview
1.8 Display Overview Display Description Indicates output is off The power supply is in constant voltage mode The power supply is in constant current mode Not used Timer Indicates output on timer function is ON Sense Indicates remote sense Not used Adrs Indicates remote communication activity Meter... -
Page 20: Getting Started
2 Getting Started Before connecting and powering up the instrument, please review and go through the instructions in this chapter. 2.1 Input Power and Fuse Requirements Input Power The supply has a selectable AC input that accepts line voltage input within: Voltage: 110 V (+/- 10 %) or 220 V (+/- 10 %) Frequency: 47 Hz –... -
Page 21: Fuse Requirements
Fuse Requirements An AC input fuse is necessary when powering the instrument. Below is a table of the fuse required for all models operating with either 110 VAC or 220 VAC input. Table 1 - Fuse Requirements Model Fuse Specification (110 VAC) Fuse Specification (220 VAC) 9201B T6.3A 250V T3.15A 250V 9202B T10A... - Page 22 Fuse box slit Fuse box Check/Remove Fuse Figure 3 - Fuse replacement Step 2 - Check and/or Change Line Voltage Switch Locate the Line Voltage Switch, which has markings that indicate “110” for 110V or “220” for 220V line operation. Depending on the model, the Line Voltage Switch will be located either on the rear or bottom of the instrument.
-
Page 23: Output Connections
Do not connect power to the instrument until the line voltage selection is setup correctly. Applying an incorrect line voltage or configuring the line voltage selection improperly may damage the instrument and void all warranty. Any disassembling of the case or changing the fuse not performed by an authorized service technician will void the warranty of the instrument. -
Page 24: Preliminary Check
rated output greater than 40V. To protect personnel against accidental contact with hazardous voltages, ensure that the load and its connections have no accessible live parts. Ensure that the load wiring insulation rating is greater than to the maximum output voltage of the power supply. 2.4 Preliminary Check Complete the following steps to verify that the power supply is ready for use. -
Page 25: Check Model And Firmware Version
2. Enable the output by pressing , and the button will be lit. The OFF annunciator will change to CV. 3. Using the numeric keypad or the voltage adjust knob and enter a voltage value. The voltage display will now show the value you entered. If entering with numeric keypad, press first, then enter the value and press 4. -
Page 26: Front Panel Operation
can also be found from within the menu system by following these steps: 1. Press to enter the menu system. 2. Use the keys to select Power Info and press 3. Press keys to cycle through power supply information. 4. Press twice to exit the menu and return to the normal display. -
Page 27: Configure Voltage And Current Output
1. From the normal display, press to enter the menu. 2. The selected item will be blinking. Use the keys to move through the menu selections. 3. When the desired menu section is shown, press to access its menu settings. 4. -
Page 28: Setting Current
Setting Current Follow the steps below to set the output current: 1. From the normal front panel display, users can use either the current adjust knob, numeric keypad, or the keys to enter the setting current. 2. If entering using numeric keypad, press first so that the cursor selects the current display. - Page 29 output is connected to the positive end (+) of the load and the negative lead (-) of the DC output is connected to the negative end (-) of the load. When this sensing mode is selected, the wires connecting between DC outputs to the load must be as short as possible. The local sense is the default configuration with shorting bars connected between (S+) to (+) and (S-) to (-).
-
Page 30: Voltage/Current Measurement
4. Do not connect any wires to + and - terminals. 5. Power ON the power supply, and then configure and enable the output. The setup should look like the figure above. DO NOT at any time disconnect the wires from the S+ and S- terminals to the DUT while output is enabled (ON). -
Page 31: Configure Overcurrent Protection (Ocp)
Configure Overcurrent Protection (OCP) The 9200B Series power supply provides an overcurrent protection (OCP) function to protect the power supply when the current presented at the output terminal exceeds the OCP current setting. Follow the steps below to set the OCP limit. -
Page 32: Enable/Disable Key Sound
Enable/Disable Key Sound The instrument initially has key sound enabled from factory. To disable or re-enable the key sound, follow the steps below: 1. From the SYST SET menu, select BEEP and press . Select between the two options using the rotary knob or keys: ON –... -
Page 33: Save/Recall Instrument Settings
Save/Recall Instrument Settings The instrument can save up to 72 sets of voltage/current values for quick recall access. Memory is allocated in 8 different storage groups (group 1 to 8) and each group has 9 memory locations to store settings (1 to 9). The memory group must first be selected from the menu before settings can be saved within the group. -
Page 34: Timer Function
Timer Function The timer function allows the user to set up how long the output will be enabled when it is initially turned ON. When enabled, the Timer indicator will be shown on the display. To activate the timer function, follow the steps below. 1. -
Page 35: List Menu
Item Parameter 9201B 9202B 9205B 9206B Voltage 0.0 V 0.0 V 0.0 V 0.0 V Output Current 10.1 A 15.1 A 25.1 A 10.1 A OVP, OVP OFF, 66 V OFF, 66 V OFF, 66 V OFF, 156 V Voltage Protection OCP, OCP OFF, 11.1 A... -
Page 36: Load List File
1. From the LIST SET menu, select LIST STATE and press 2. There are two options that can be selected using the rotary knob: OFF – Disable List mode ON – Enable List mode 3. Select the desired option and press to save the change. -
Page 37: Overvoltage Protection (Ovp)
3.6 Overvoltage Protection (OVP) The 9200B Series power supply provides an overvoltage protection (OVP) function to protect the power supply when the voltage presented at the output terminal exceeds the OVP voltage setting. Follow the steps below to set the OVP limit. -
Page 38: Digital Voltmeter (Dvm)
1. Press . A Lock indicator will light up on the display, indicating that the front panel keys are locked. At this point, all keys are disabled except for 2. To unlock the keys, press again. The Lock indicator will disappear and all keys will be enabled. -
Page 39: Remote Operation
4 Remote Operation There are several interfaces available for remote communication: USB and RS-232. With all these interfaces, this power supply is very flexible to be controlled remotely. Users can program the power supply by using the SCPI (Standard Commands for Programmable Instruments) commands over any one of the remote interfaces. -
Page 40: Usb
A straight pin-to-pin DB9 female to DB9 male serial cable is required for using the RS-232 interface. Do not use a null modem or crossover DB9 serial cable. Follow the steps below to configure the power supply for RS-232 operation: 1. -
Page 41: Remote Commands
5.2 SCPI Status Register The 9200B Series power supply records the different states of the instrument through four status registers. The four status register groups are status byte register, standard event register, query status register, and operation status register. The status byte register records the information of the other registers. - Page 42 For the Operate Event register, you send STAT:OPER? For the query. Below are the definitions: CAL (bit 0) – Calibration. This is only active when unlocking in calibration mode. This is for factory use only. On/Off (bit 1) – output state. When output turns ON, this will flag to indicate output ON upon querying.
- Page 43 Standard event status register Decimal Definition Value Operation Complete. All commands prior to and including an *OPC command have been executed. Not used Always set to 0. Query Error. The power supply tried to read the output buffer but it was empty. Or, new command line was received before a previous query had been read.
-
Page 44: Ieee488.2 Common Commands
Status byte register Decimal Definition Value Not used Always set to 0. QUES One or more bits are set in the questionable status register (bits must be “enabled” in the enable register). Data is available in the power supply output buffer. One or more bits are set in the standard event register (bits must be “enabled”... - Page 45 Position Bit Name used used Bit Weight PON Power-on CME Command error EXE Execution error DDE Device-dependent error QYE Query error OPC Operation complete *ESR? This command can read the value of standard event status register. After executing this command, standard event status register is reset. Bit definition of standard event status register is the same as the standard event status enable register.
- Page 46 supply is reset. Command syntax: *PSC <bool> Parameter: 0|1|ON|OFF Query syntax: *PSC？ Returned parameter: <NR1> *RST This command resets the power supply to default settings. Command syntax: *RST Parameter: None *SRE This command can set the parameter of state byte enable register. Setting parameter can determine which byte value of state byte register is 1 and the byte will set RQS of state byte register to 1.
-
Page 47: Status Subsystem
Parameter: 1~72 5.4 STATUS Subsystem STATus:QUEStionable[:EVENt]? This command can be used to read the value in query event register. After executing this command, the query event register will be cleared. Query syntax: STATus:QUEStionable[:EVENt]? Parameter: None Returned parameter: <NRf> Relative command: STATus:QUEStionable:ENABle The bit definition of query event enable register: Position Bit Name... -
Page 48: System Subsystem
5.5 SYSTEM Subsystem SYSTem:ERRor? This command is used to query the error information of the power supply. When the error LED lights on the front panel, it tells us that there is one or more hardware or command syntax error happened. - Page 49 (-221) Settings conflict (-222) Data out of range (-223) Too much data (-224) Illegal parameter value (-225) Out of memory (-230) Data Corrupt or Stale (-310) System error (-350) Too many errors (-400) Query error (-410) Query INTERRUPTED (-420) Query UNTERMINATED (-430) Query DEADLOCKED (223) Front panel buffer overrun (224) Front panel timeout...
-
Page 50: Trigger Subsystem
button as well. When this command is executed, the “Local” button will be disabled. Command syntax: SYSTem:RWLock Parameter: None SYSTem:INTerface This command is used to select the communication interfaces. Command syntax：SYSTem:INTerface <USB|RS232> 5.6 TRIGGER Subsystem TRIGger[:IMMediate] This command is used to create a trigger signal. It will give a trigger signal in BUS trigger source mode. - Page 51 Query syntax: OUTPut:TIMer? OUTPut:TIMer:DATA This command is used to set the output timer’s time. Command syntax：OUTPut:TIMer:DATA <NRf> Parameter: 0-99999.9 Unit：S Query syntax: OUTPut:TIMer:DATA? Return parameter: <NRf> [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude] This command is used to set the output current value. MIN represents 0 A and MAX represents the max value of the current range.
- Page 52 Query syntax: [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude]? Return parameter: <NRf> [SOURce:]CURRent:PROTection[:LEVel] This command is used to set the software-current protection value. Command syntax: [SOURce:]CURRent:PROTection[:LEVel] <NRf> Parameter: MIN to MAX|MIN|MAX|DEF Unit: A |mA| uA Query syntax: [SOURce:]CURRent:PROTection[:LEVel]? Parameter: None Return parameter: <NRf> [SOURce:]CURRent:PROTection:STATe This command is used to set the software-current protection state. Command syntax: [SOURce:]CURRent:PROTection:STATe<bool>...
- Page 53 VOLT:STEP? DEF command can query the step resolution of current for this unit. For example, a step value of 0.01 represents 10 mV. Command syntax: [SOURce:]VOLTage[:LEVel][:IMMediate]:STEP[:INCRement] <NRf> Parameter: MIN to MAX Query command: VOLTage:STEP? Return parameter: <NRf> Example: VOLT:STEP 0.01 //set the step value to be 0.01 V VOLT UP //increments output current by 0.01 V...
-
Page 54: Measurement Commands
VOLT:PROTection:CLEar This command is used to clear the OVP state. Before sending this command, please increase the upper limit of OVP or reduce the output voltage. Note: Please remove the device that tripped this protection and then send the command again. Command syntax: [SOURce:]VOLTage:PROTection:CLEar [SOURce:]VOLTage:LIMIt[:LEVel]<voltage>... - Page 55 Return parameter: <NRf> Return parameter unit: V MEASure[:SCALar]:CURRent[:DC]? This command is used to read the actual current. Command syntax: MEASure[:SCALar]:CURRent[:DC]? Parameter: None Return parameter: <NRf> Return parameter unit: A Example: MEAS:CURR? FETCh:CURRent? This command is used to read the current which is in the sample cache. After sending the command, the readings will be sent to the computer.
-
Page 56: List Commands
Command syntax: FETCh:DVM[:DC]? Return parameter: <NRf> MEASure:STATus? This command is used to switch the display of VFD board between actual output state and DVM state. Command syntax: MEASure[:SCALar]:STATus <DVM|NORMAL> 5.9 LIST Commands LIST:FUNCtion This command is used to set the state of list mode. Command syntax: [SOURce:]LIST:FUNCtion <0|1>... - Page 57 Command syntax: [SOURce:]LIST:TIMEr Parameters: MIN to MAX|MIN|MAX Unit: S Query syntax: LIST:TIMEr? <NR1> Return parameters: <NRf> Example: LIST:TIME 1,3 //set the first step’s time to be 3 S LIST:TIME? 1 //query the first step’s delay time LIST:LOAD This command can recall the list file saved before from specified memory region. Sending query commands can inquire which group file you have recalled.
-
Page 58: Troubleshooting Guide
6 Troubleshooting Guide Below are some frequently asked questions and answers. Please check if any apply to your power supply before contacting B&K Precision. General Q: I cannot power up the power supply. Check that the power cord is securely connected to the AC input and there is live power from your electrical AC outlet. -
Page 59: Specifications
7 Specifications Note: All specifications apply to the unit after a temperature stabilization time of 15 minutes over an ambient temperature range of 23 °C ± 5 °C. Specifications are subject to change without notice. Environmental Conditions: This power supply is designed for indoor use and operated with maximum relative humidity of 80%. -
Page 60: Calibration
General Remote Sense Compensation DVM Range 0-60 V DVM Accuracy 0.02%+10 mV DVM Resolution 1 mV Standard USB (USBTMC-compliant), RS-232 Interface AC Input 110/220 VAC (+/- 10 %), 47 Hz - 63 Hz Operating 32 °F to 104 °F (0 °C to 40 °C) Temperature Storage -4 °F to 158 °F (-20 °C to 70 °C)
