True RC900 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

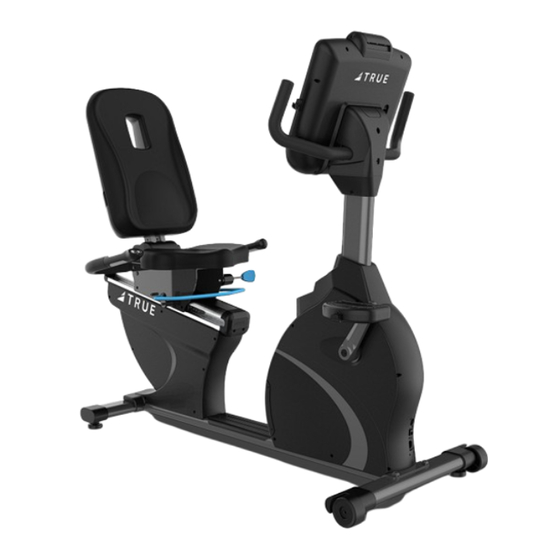

RC900
RECUMBENT BIKE
MODEL RC900-20
(MAN-RC900-20 REV00)
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True RC900

Summary of Contents for True RC900

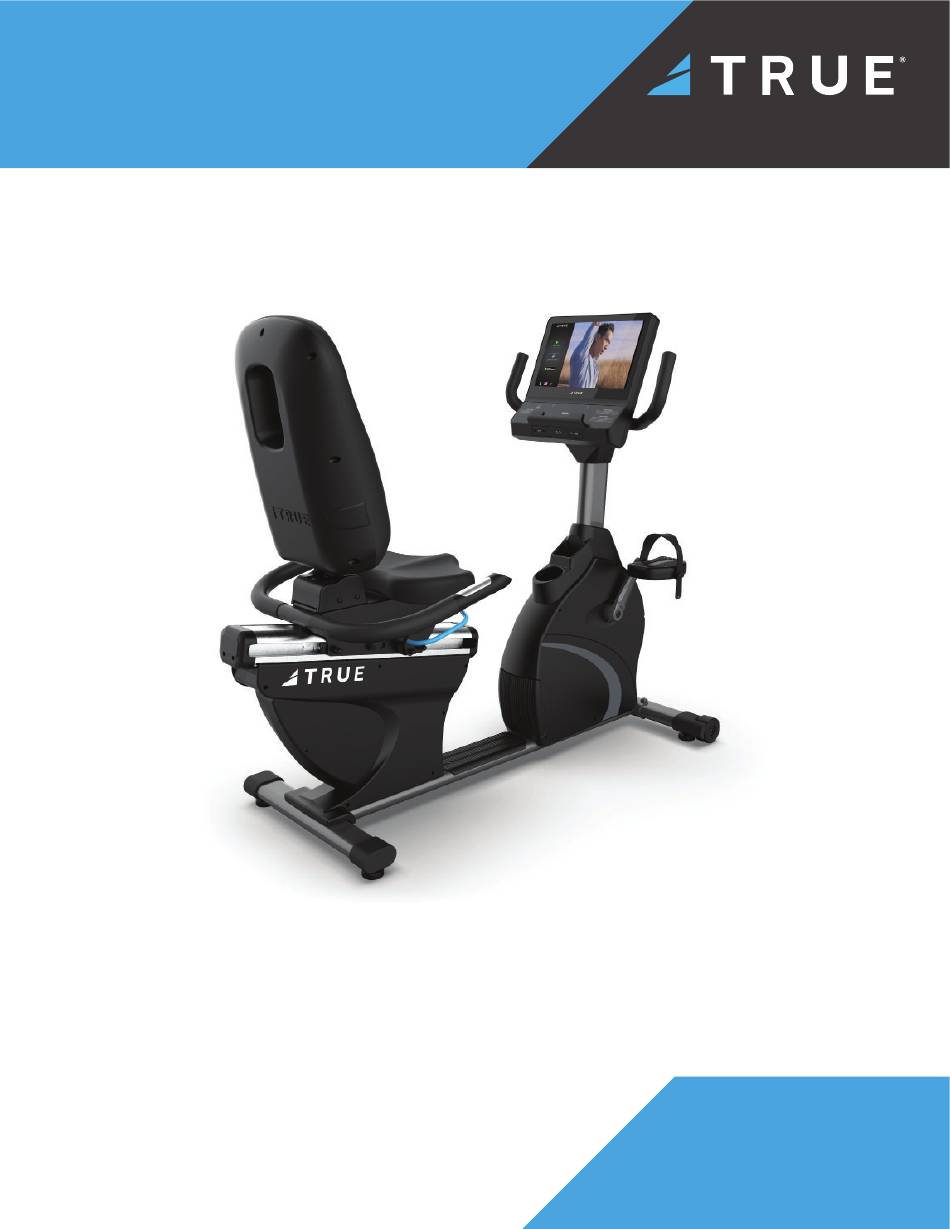

  • Page 1 RC900 RECUMBENT BIKE OWNER’S MODEL RC900-20 MANUAL (MAN-RC900-20 REV00)
  • Page 3 Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren. Produkt- Spezifi kationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern. In den meisten Fällen bis zu Bedienungsanleitung Bisher besuchen und für Dokumente in weiteren Sprachen fi nden Sie unter https://truefi tness.com/ support/user-manuals/ BELANGRIJK! Alle getoonde producten zijn prototype.
  • Page 4 You can count on TRUE Fitness for the best service in the industry, provided by a team focused on optimizing the life of your equipment.
  • Page 5 You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages. Please notify the carrier immediately. TRUE will not be able to fi le a claim if the carrier is not notifi ed in a timely manner.

  • Page 6: Table Of Contents

    LEVELING THE MACHINE..............................35 PREVENTATIVE MAINTENANCE............................36 LONG TERM STORAGE..............................36 ADDITIONAL INFORMATION TROUBLESHOOTING................................37 RC900 WIRING DIAGRAM (OPTIONAL AUXILIARY POWER SUPPLY) ................40 RC900 WIRING DIAGRAM (SELF-GENERATING POWER) ................... 41 WARRANTY INFORMATION RC900 BIKE COMMERCIAL LIMITED WARRANTY......................42 RC900 BIKE RESIDENTIAL LIMITED WARRANTY......................43 *Power warnings, grounding instructions, and power requirements are only applicable when this product is being used with the optional power supply.*...

  • Page 7: Safety Instructions

    • Replace warning labels that may be worn, damaged, • TRUE STRONGLY recommends seeing a physician or missing. for a complete medical exam before undertaking an exercise program, particularly if the user has a family •...
  • Page 8 • Do not reach into or underneath the unit, or tip it on • Never operate a TRUE product if it has a damaged its side during operation. power cord or electrical plug, or if it has been •...

  • Page 9: Power Requirements

    *POWER REQUIREMENTS* Read and understand all instructions before plugging any TRUE power cord into an electrical outlet. *Power warnings, grounding instructions, and power requirements are only applicable when this product is being used with the optional power supply.* NOTE: The Envision II 16” and ShowRunner II consoles require the optional power supply.

  • Page 10: Proper Training Position

    SPACE REQUIREMENTS TRUE recommends leaving a minimum of 24” (61cm) on each side of the equipment and a 39” (99 cm) safety zone at the rear of the equipment.

  • Page 11: Specifications

    181 lbs / 82 kg WARNING DECALS WARNING: Replace warning labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com // 800.883.8783). console serial number location Model No. RC900 Serial No./Date Code...

  • Page 12: Assembly Instructions

    Unpacking and assembling of this product is a two person task. VERIFY BOX CONTENTS IMPORTANT! Please verify box contents. If you have questions, or if there are any missing parts, contact product support (service@truefi tness.com // 800.883.8783). INCLUDED TOOLS NEEDED FOR ASSEMBLY...
  • Page 13 BOX CONTENTS ITEM DESCRIPTION Base Seat Handlebar Seat Back Frame Cover Seat Back Frame Bottom Console Cover Front Mast Rear Console Cover Pedal Set Rear Stabilizer Front Stabilizer Rear Seat Pivot Cover Hardware Bag(s) Manual...
  • Page 14 HARDWARE CONTENTS Front and Rear Stabilizer Hardware Handlebar Hardware ITEM DESCRIPTION ITEM DESCRIPTION SOCKET HD CAP SCREW, M10 SOCKET HEX HD BOLT, M8 X P1.25 X 20 RCS0368 FE0179 WASHER, SPRING, M10 SPB8 SPRING WASHER, M8 FE0090 PS0099 FLAT WASHER, 10MM X 20MM, FLAT WASHER, 8MM X 19MM T=2MM X 2MM...
  • Page 15 HARDWARE CONTENTS Console Covers Hardware ITEM DESCRIPTION SCREW, M5 X P0.85 X 15 TCS4029 Tools ITEM DESCRIPTION 5MM ALLEN WRENCH 6MM ALLEN WRENCH 8MM ALLEN WRENCH 15MM WRENCH...

  • Page 16: Assembly Steps

    ASSEMBLY STEPS STEP 1—ATTACH REAR STABILIZER Parts Used in this Step Tools Used in this Step PART DESCRIPTION 8mm Allen Wrench RCS0368 SOCKET HD CAP SCREW, M10 FE0090 WASHER, SPRING, M10 RCS0369 FLAT WASHER, 10MM X 20MM, T=2MM RB0002BK SUBASSEMBLY, REAR STABILIZER 1.
  • Page 17 STEP 2—ATTACH FRONT STABILIZER Tools Used in this Step Parts Used in this Step 8mm Allen Wrench PART DESCRIPTION RCS0368 SOCKET HD CAP SCREW, M10 FE0090 WASHER, SPRING, M10 RCS0369 FLAT WASHER, 10MM X 20MM, T=2MM RB0001BK SUBASSEMBLY, FRONT STABILIZER 1.
  • Page 18 STEP 3—ROUTE AND CONNECT SEAT HANDLEBAR CABLES After making sure the handlebar is in the correct position, connect the thumbswitch cables and route the contact heart rate cables through the seat frame. NOTE: At least one person should hold the handlebar in place while the other makes the cable connections. Thumbswitch Thumbswitch Cable...
  • Page 19 STEP 4—ATTACH SEAT HANDLEBAR Parts Used in this Step Tools Used in this Step PART DESCRIPTION 5mm Allen Wrench FE0179 SOCKET HEX HD BOLT, M8 X P1.25 X 20 PS0099 SPB8 SPRING WASHER, M8 CM8-19FW FLAT WASHER, 8MM X 19MM X 2MM 6mm Allen Wrench CM8-125-20FH FHCS M8 X 1.25 BZ...
  • Page 20 STEP 5—ATTACH SEAT BACK FRAME AND CONNECT CABLES Tools Used in this Step Parts Used in this Step 5mm Allen Wrench PART DESCRIPTION PS8054 SOCKET HEX HD BOLT, M8 X P1.25 X 20 FE0130 SPB8 SPRING WASHER, M8 FE0094 FLAT WASHER, 8MM X 19MM X 2MM RCS0350BK SUBASSEMBLY, SEAT BACK W/ FRAME 1.
  • Page 21 STEP 6—ATTACH REAR SEAT PIVOT COVER Parts Used in this Step Tools Used in this Step PART DESCRIPTION #2 Phillips Screwdriver FE0187 SCREW, M5 X P0.85 X 15 RCS0382 FLAT WASHER, 5.5MM X 15MM, T=1MM RCS0036RBK SUBASSEMBLY, REAR SEAT PIVOT COVER 1.
  • Page 22 STEP 7—ATTACH SEAT BACK FRAME COVER Tools Used in this Step Parts Used in this Step #2 Phillips Screwdriver PART DESCRIPTION FE0187 SCREW, M5 X P0.85 X 15 RCS0024BK SUBASSEMBLY, SEAT BACK FRAME COVER Using a #2 Phillips screwdriver, attach the seat back frame cover to the seat back frame using 7 screws. RCS0024BK FE0187...
  • Page 23 STEP 8—ATTACH PEDALS Tools Used in this Step Parts Used in this Step 15mm Wrench PART DESCRIPTION RB0076BK SUBASSEMBLY, PEDAL KIT W/ STRAP Torque Wrench WIth 15mm Head 1. Using a 15mm wrench, attach each pedal to its corresponding crank. 2.
  • Page 24 STEP 9—ROUTE CABLES UP FRONT MAST 1. Remove the storage dock from the bike frame. 2. Slide the bottom console cover and the storage dock up the console mast. 3. Pull the cables coming from the front of the bike through the front mast using the provided pull tie. IMPORTANT! Do NOT pinch the cables.
  • Page 25 STEP 10—ATTACH FRONT MAST Tools Used in this Step Parts Used in this Step 6mm Allen Wrench PART DESCRIPTION RCS0404 BOLT BHCS M10x1.5-16 BZ FE0090 WASHER, SPRING, M10 RCS0369 FLAT WASHER, 10MM X 20MM, T=2MM RCS0014BK SUBASSEMBLY, FRONT MAST 1. Using a 6mm allen wrench, secure the front mast to the bike frame using 5 bolts, 5 spring washers, and 5 fl at washers.
  • Page 26 STEP 11—ATTACH CONSOLE TO FRONT MAST Tools Used in this Step Parts Used in this Step #2 Phillips Screwdriver PART DESCRIPTION CONSOLE RCS0014BK SUBASSEMBLY, FRONT MAST 1. Using a #2 Phillips screwdriver, secure the console to the console mast using the hardware pre-assembled to the console (00567800 // SCREW, M5-.8X12 COMBO PHILLIPS/COMMON TRUSS HEAD - ACG BLACK // QTY 4).
  • Page 27 STEP 12—ATTACH BOTTOM AND REAR CONSOLE COVERS Tools Used in this Step Parts Used in this Step #2 Phillips Screwdriver PART DESCRIPTION TCS4029 SCREW, M5 X P0.85 X 15 RCS0022BK SUBASSEMBLY, REAR CONSOLE COVER RCS0031BK BOTTOM CONSOLE PLASTIC, RCS900 1. Using a #2 Phillips screwdriver, attach the rear console cover to the front mast using 2 screws. 2.
  • Page 28 OPTIONAL STEP 13—INSTALL AUXILIARY POWER SUPPLY Parts Used in this Step Tools Used in this Step PART DESCRIPTION #2 Phillips Screwdriver RB0077 SCREW, RIGHT REAR SHROUD RB0049ABK RIGHT REAR SHROUD ASSEMBLY W/ DECALS, BLACK Wire cutters 00560402 POWER CORD, FUYANG 00595500 POWER SUPPLY, FUYANG 12V 6A ZIP TIE...
  • Page 29 OPTIONAL STEP 13—INSTALL AUXILIARY POWER SUPPLY CONTINUED 00595500 Zip Tie DC Power Cable 00560402 00595500 00560402 DC Power Cable...
  • Page 30 OPTIONAL STEP 13—INSTALL AUXILIARY POWER SUPPLY CONTINUED RB0049ABK RB0077...
  • Page 31 STEP 14—LEVEL THE MACHINE Tools Used in this Step 19mm Wrench 1. Using a 19mm wrench, adjust all four leveling feet until they contact the fl oor. IMPORTANT! Do not adjust the leveling feet to such a height that they detach or unscrew from the machine. 2.
  • Page 32 OPTIONAL STEP 15—ATTACH POWER CORD Parts Used in this Step PART DESCRIPTION RCS0019 SUBASSEMBLY, INLET, POWER SUPPLY 00560402 POWER CORD, 110V 00687000 POWER CORD, 220V IMPORTANT! This step is only required if this unit is paired with the Envision II 16” or ShowRunner II consoles. Insert the appropriate power cord into the corresponding power inlet.

  • Page 33: Product Overview

    PRODUCT OVERVIEW PRODUCT FEATURES Console Quick Access Keys Seat Contact Heart Rate Pads L EV EL Seat Pedal Handlebar Bottle Seat Holder Coaxial Port, Ethernet Adjustment Port, and Handle Power Supply Inlet Leveling Feet Console Pedals Allows the user to set up a workout program and control Moving part of the bike that provides resistance to the the bike during a workout.

  • Page 34: Care And Maintenance

    It is important to perform the minor maintenance tasks described in this section. Failure to maintain the bike as described here could void the TRUE Fitness Warranty. *To reduce the risk of electrical shock, always unplug the unit from its power source before cleaning or performing any maintenance tasks.*...

  • Page 35: Leveling The Machine

    LEVELING THE MACHINE CAUTION: Prevent potential damage to the machine and injury to the user. This unit is equipped with four leveling feet. Make sure that the bike is level at all times. If the bike is placed on a uneven surface, adjusting the leveling feet can help, but may not completely compensate for extremely uneven surfaces.

  • Page 36: Preventative Maintenance

    PREVENTATIVE MAINTENANCE TRUE recommends that quarterly scheduled maintenance be performed by a qualifi ed service technician. Please contact your dealer or visit www.truefi tness.com to contact a local TRUE authorized service technician. IMPORTANT! Use only TRUE Fitness certifi ed service providers.

  • Page 37: Additional Information

    This troubleshooting guide is intended to assist in diagnostics only and is not all inclusive. Technical specifi cations, error codes and programming are subject to change without notice. TRUE accepts no liability for any damage or loss suff ered by persons whom rely wholly or in part on any description or statement contained within this manual. Please visit www.truefi...
  • Page 38 (ATCS), digital cable (QAM) Channels or format type not correct Rescan TV channels Tuner Invalid Contact TRUE Product Support Transmitter belt contacts are not making good contact Re-adjust the transmitter belt so that it is in full contact with with the skin...
  • Page 39 Corrupted brainboard confi guration Console Console Confi guration - fails integrity check Re-install software/fi rmware Firmware and software versions are not compatible Contact TRUE Product Support Power cycle Console Confi gure Incorrectly Re-confi gure console Fault CN01: Internal Fault Console Math error - software Re-install software/fi...

  • Page 40: Rc900 Wiring Diagram (Optional Auxiliary Power Supply)

    RC900 WIRING DIAGRAM (OPTIONAL AUXILIARY POWER SUPPLY) CONSOLE HANDLEBAR RCS0413BK USB RCS0109 Heart Rate Left RCS0112 BATTERY Thumbswitches RCS0113 00588800 Heart Rate Right RCS0112 CHARGING PORT RCS0375 COMBO RCS0120 HEART RATE BOARD LOWER CONTROL BOARD NUCLEUS BOARD 00614200 00591500 RCS0008...

  • Page 41: Rc900 Wiring Diagram (Self-Generating Power)

    RC900 WIRING DIAGRAM (SELF-GENERATING POWER) CONSOLE HANDLEBAR RCS0413BK USB RCS0109 Heart Rate Left RCS0112 BATTERY Thumbswitches RCS0113 00588800 Heart Rate Right RCS0112 CHARGING PORT RCS0375 COMBO RCS0120 HEART RATE BOARD LOWER CONTROL BOARD NUCLEUS BOARD 00614200 00591500 RCS0008 00612700 BRAKE GENERATOR...

  • Page 42: Warranty Information

    *This limited warranty on the structural frame does not purchaser and the parts of the TRUE product (the include paint or coatings. The frame is defi ned as the “Product”) listed below, under normal use and service,...

  • Page 43: Rc900 Bike Residential Limited Warranty

    *This limited warranty on the structural frame does not purchaser and the parts of the TRUE product (the include paint or coatings. The frame is defi ned as the “Product”) listed below, under normal use and service,...
  • Page 44 RC900 BIKE LIMITED WARRANTY Save Time and Register Online! Activate Multiple Warranties at truefi tness.com THE TRUE LIMITED WARRANTY IS SUBJECT TO AND WILL BE IN ACCORDANCE WITH THE CONDITIONS SET FORTH BELOW: This limited warranty is valid for the United States and 14.
  • Page 45 RC900 BIKE LIMITED WARRANTY Save Time and Register Online! Activate Multiple Warranties at truefi tness.com KEEP THIS PAGE FOR YOUR RECORDS SERIAL NUMBERS: The product comes with two serial numbers; one on the base and one on the console. The serial number on the base is on the bottom of the frame.
  • Page 46 Activate Multiple Warranties at truefi tness.com Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way, please go on- line now to truefi tness.com and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose.
  • Page 48 T R U E F I T N E S S . C O M I N T E G R I T Y M A T T E R S TRUE Fitness Technology, Inc | 865 Hoff Road, St. Louis, MO 63366 © 2023 TRUE. All Rights Reserved.
