Summary of Contents for Atal ATD-12

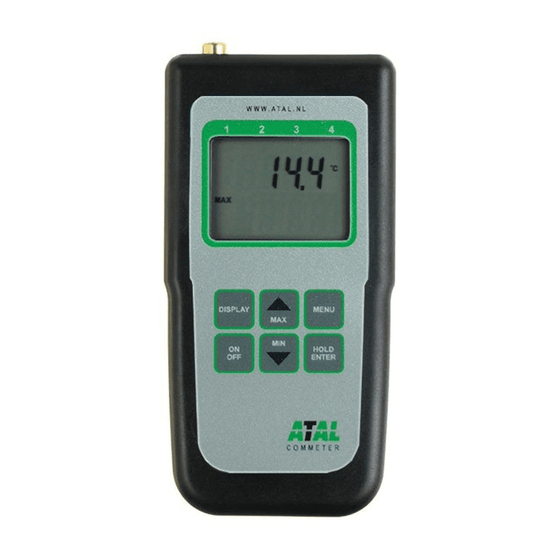

- Page 1 ATAL ATD-12 Single channel thermometer and datalogger for RTD Pt1000 and Ni1000/6180ppm probes Instruction Manual...
- Page 2 Instruction manual for use thermometer and datalogger ATAL ATD12 Instrument is designed for measurement and logging of temperature from one RTD Pt1000 or Ni1000/6180ppm external probe. Measured values are displayed on a dual line LCD display and it is possible to store values into the non volatile memory. Then it is possible to transfer data to a personal computer.
- Page 3 Dimensions: 141 x 71 x 27 mm Weight including battery: approximately 150 g Material of the case: ABS Forsan Battery life depends on selected display refresh mode (see below). In FAST mode display is refreshed in shortest possible interval with highest current consumption. In dynamic mode display is refreshed in interval up to 5 s in case measured values remain stable.
- Page 4 Display of actual measured temperature In this mode is instrument anytime after switching ON. It is possible to enter this mode from other modes by pressing or by repeating pressing of MENU key. If the external probe is not connected properly or probe is out of measuring range, reading -- is displayed on the upper LCD line.
- Page 5 Clearing of minimum and maximum memory of temperature. Memory is cleared after pressing ENTER key. Clearing is confirmed by reading YES on the LCD lower display. Press ENTER key to display value stored in the HOLD memory. Press MENU key to leave this mode. Time (hour and minute) in internal real time clock of the instrument.
- Page 6 Alarm indication and setting It is possible to set lower and upper limit for measured temperature. Breaking of the limit is indicated by blinking of the value on the display. Alarm activation can be disabled by setting lower alarm limit up to its maximum.
- Page 7 Logging start from instrument keyboard Start logging by confirmation of the menu item START (symbol Strt) by pressing ENTER key. Notice: it is not possible to start logging if low battery voltage is indicated. Instrument offers the possibility to clearing the instrument memory (ERAS). If you do not wish to clear the memory before new logging start, confirm selection ERAS NO by pressing the ENTER key Now instrument displays adjusted storing interval.
- Page 8 After memory is cleared it is possible to select one of three logging modes (MODE) by using arrow keys (non cyclic logging is indicated by symbol n.CYC, cyclic logging by symbol CYCL and manual logging by symbol Man). If manual logging mode is selected, after confirmation by ENTER key logging is active.
- Page 9 During installation you will be invited to insert second diskette. In the end message of successful installation will occur. Quit the Installer by button Cancel. Now it is possible to run software from menu Start - Program Files - ATAL - ATD. Communication with the instrument First connect communication cable to computer serial port.
- Page 10 Curve setting color modification, vertical axis assignment Graph setting setting of graph parameters - axis, description etc. ATAL instruments passed the following electromagnetic compatibility (EMC) tests: radiation: EN 55022 class B immunity: EN 61000-4-2 (levels 4/8 kV, class A)
