Connections
6

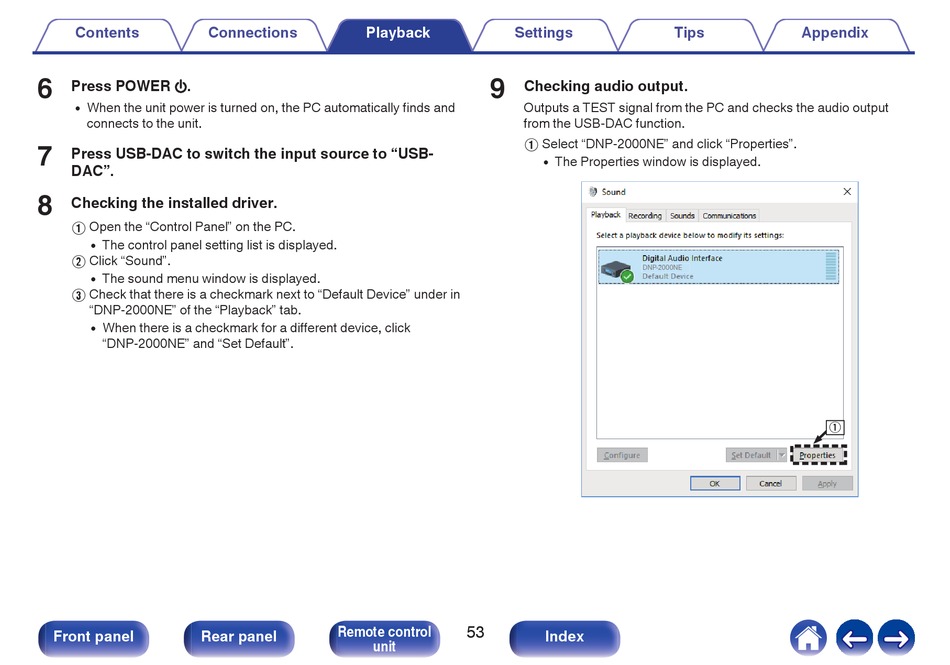

Press POWER X.
When the unit power is turned on, the PC automatically finds and
0
connects to the unit.
7
Press USB-DAC to switch the input source to "USB-
DAC".
8
Checking the installed driver.
A Open the "Control Panel" on the PC.
The control panel setting list is displayed.
0
B Click "Sound".
The sound menu window is displayed.
0
C Check that there is a checkmark next to "Default Device" under in
"DNP-2000NE" of the "Playback" tab.
When there is a checkmark for a different device, click
0
"DNP-2000NE" and "Set Default".
Front panel
Rear panel
Playback
Settings
9
53
Remote control
unit
Tips
Checking audio output.
Outputs a TEST signal from the PC and checks the audio output
from the USB-DAC function.
A Select "DNP-2000NE" and click "Properties".
The Properties window is displayed.
0
DNP-2000NE
Index
Appendix
