BRAKE ADJUSTMENT

Your Rollator brake system will
require periodic adjustment. The brake
adjust-ment is similar to bicycle brakes;

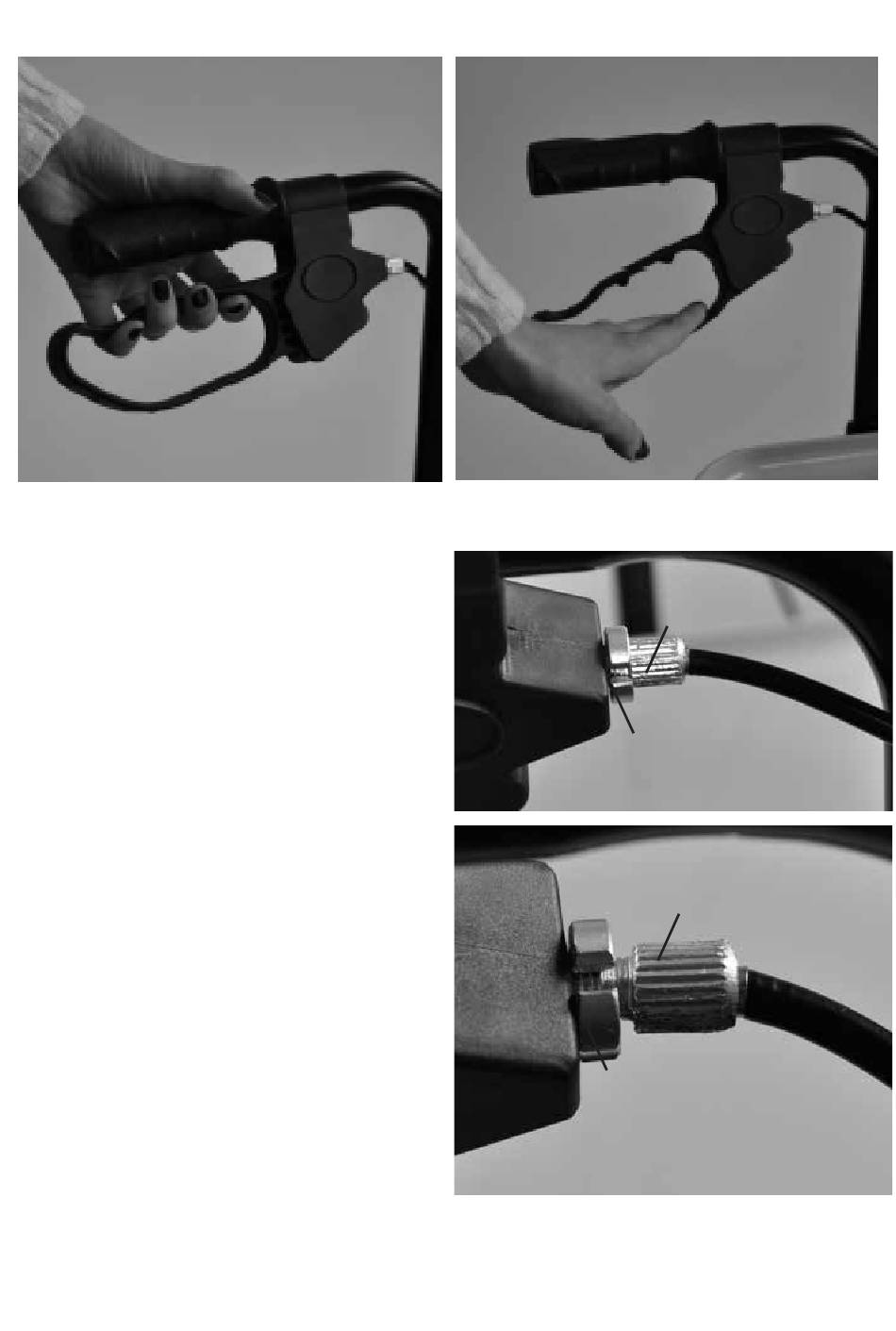

1. Fig. 8 shows the brake handle in its
default delivered position. Should the brakes
need adjusting they can be tightened by
unlocking nut A and then un-screwing (anti-
clockwise) nut B.
2. When adjusted the brakes should work in
both normal and in parking mode. If needed
then nut B (see fig. 10 and fig. 11) can be
turned further anti-clockwise, which will
tighten the brake cable more. When you are
happy with the brake adjustment
re-tighten nut A.
Usage and Maintenance Instructions
Fig. 8
fig. 11
7
NUT B
DEFAULT
NUT A
POSITION
NUT B
NUT A
ADJUSTED
Fig. 9
fig. 10
USER
