aidapt VP174SS User Manual With Fixing And Maintenance Instructions

Tri-wheeled walkers
Hide thumbs Also See for VP174SS:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

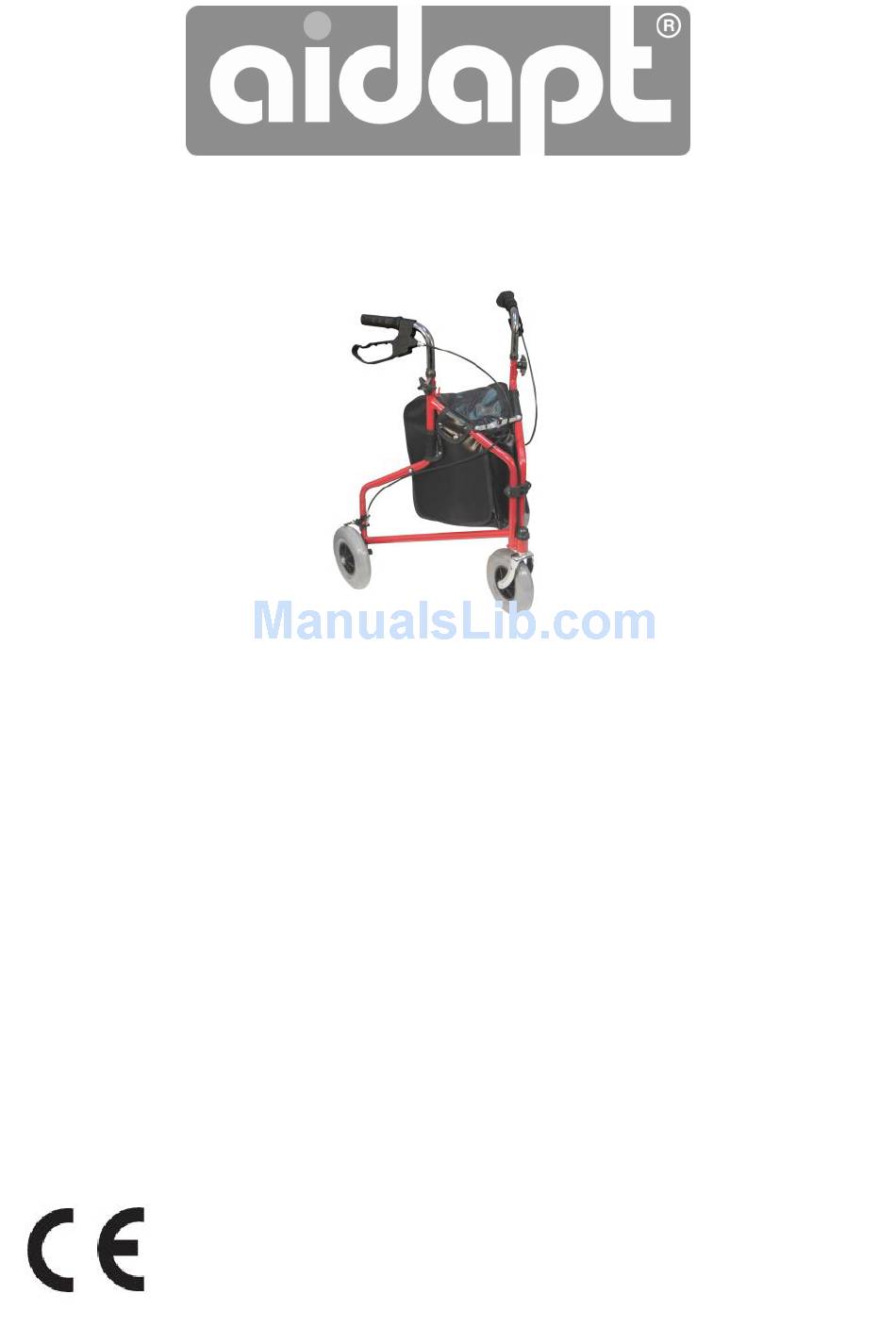

Tri-Wheeled Walkers

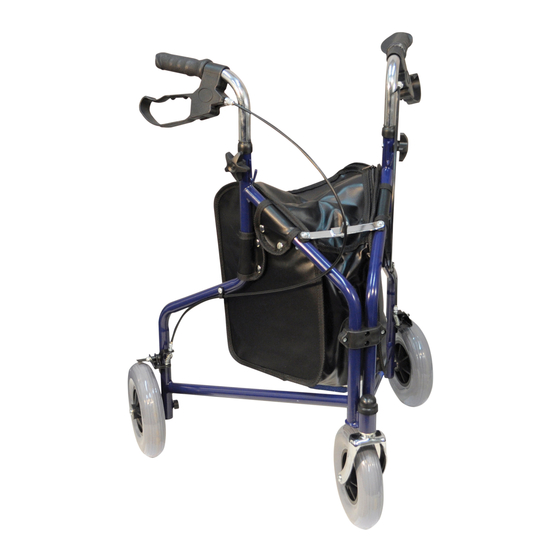

VP174SS – Blue Steel Tri Walker with Bag
VP174RS – Red Steel Tri Walker with Bag
VP174SS/N – Blue Steel Tri Walker No Bag
VP174RS/N – Red Steel Tri Walker No Bag
Basket available to buy separately – VP103
VP172AA – Red Aluminium Tri Walker with Bag, Basket and Tray
VP172AB – Blue Aluminium Tri Walker with Bag, Basket and Tray
VP172AC -Silver Aluminium Tri Walker with Bag, Basket and Tray
User Guide with Fixing and Maintenance
Instructions
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP174SS and is the answer not in the manual?

Questions and answers

Related Manuals for aidapt VP174SS

Summary of Contents for aidapt VP174SS

  • Page 1 Tri-Wheeled Walkers VP174SS – Blue Steel Tri Walker with Bag VP174RS – Red Steel Tri Walker with Bag VP174SS/N – Blue Steel Tri Walker No Bag VP174RS/N – Red Steel Tri Walker No Bag Basket available to buy separately – VP103 VP172AA –...
  • Page 2 115 kg (18 St.) weight limit VP174RS Red Steel Tri Walker with Bag 115 kg (18 St.) weight limit VP174SS/N Blue Steel Tri Walker No Bag 115 kg (18 St.) weight limit VP174RS/N Red Tri Walker No Bag 115 kg (18 St.) weight limit VP172AA Red Aluminium Tri Walker with Bag,Basket&Tray 133kg (21 St.) weight limit...
  • Page 3  Ergonomic handgrips to reduce pressure  Optional bag or basket attachment ASSEMBLY INSTRUCTIONS Carefully remove all packaging. Check the product thoroughly for damage or obvious faults. If you suspect the unit to be faulty, please do not use, but contact your supplier immediately for service.

  • Page 4: Locking Mechanism

    Fig. 4a Fig. 4b LOCKING MECHANISM Central Locking Bracket Open out the tri-walker frame by pulling the grip handles outwards in opposite directions forming a ‘V’ shape. Once this is completed pull/push the central locking bracket so the plates are parallel. Ensure the frame is locked before using it and never use a semi-closed position as this may lead to the frame collapsing.
  • Page 5 FITTING THE CARRY BAG (Should be already fitted) The Tri-walker bag should be fitted when the walker is set in the open position. Take the strap situated upon the upper side of the tri-walker bag, and wrap this around the diagonal bar of the frame (fig. 7) and push the stud fasteners together.
  • Page 6 Fig. 8 Fig. 8a Fig. 8b NB. Wheel design may vary. CARE AND MAINTENANCE & YOUR OBLIGATION Only use your Tri-walker for the purpose for which it is intended, which is an aid to walking. It is intended that your Tri-walker is only used on standard pavements or at home and should not be used on rough terrain or pot holed surfaces.

  • Page 7: Warranty

    Servicing should be carried out at an approved service station or directly by Aidapt. REISSUE If you reissue or are about to reissue this product, please thoroughly check all components for their safety.

  • Page 8: Technical Specifications

    Open: 570x650 Net Weight (kg) 5.24 Aidapt Bathrooms Ltd, Lancots Lane, Sutton Oak, St Helens, Telephone: +44 (0) 1744 745 020 • Fax: +44 (0) 1744 745 001 • Web: www.aidapt.com Email: sales@aidapt.co.uk Fixing and Maintenance Instructions Ver.1 12/2012 (2758)
