Domestia DMD-004-002 User Manual

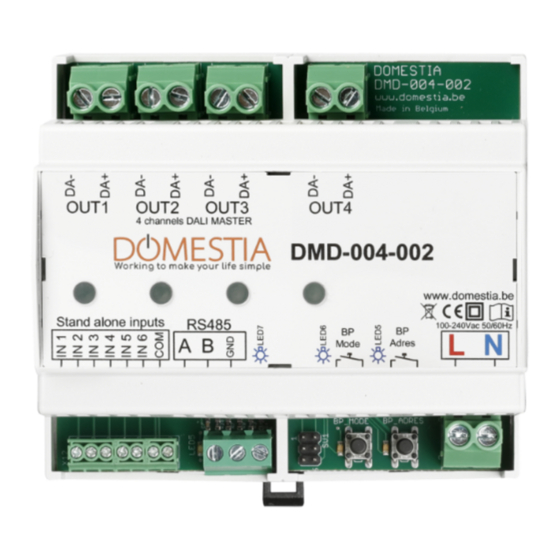

USERS MANUAL extension module 4 outputs DALI Broadcast:

1 DESCRIPTION

With the module DMD-004-002 it's possible to control DALI compatible lamps.
The DMD-004-002 works as 4 DALI (lines) controllers but only send broadcast
commands to the buses.
 All the lamps connected on to a same bus will receive the same commands.
 The lamps don't have to be addressed.
 Each bus DALI is programmed as a single home automation output.
The DALI buses don't need a supplementary DALI power supply, this DALI bus power
supply is controlled by the module itself.

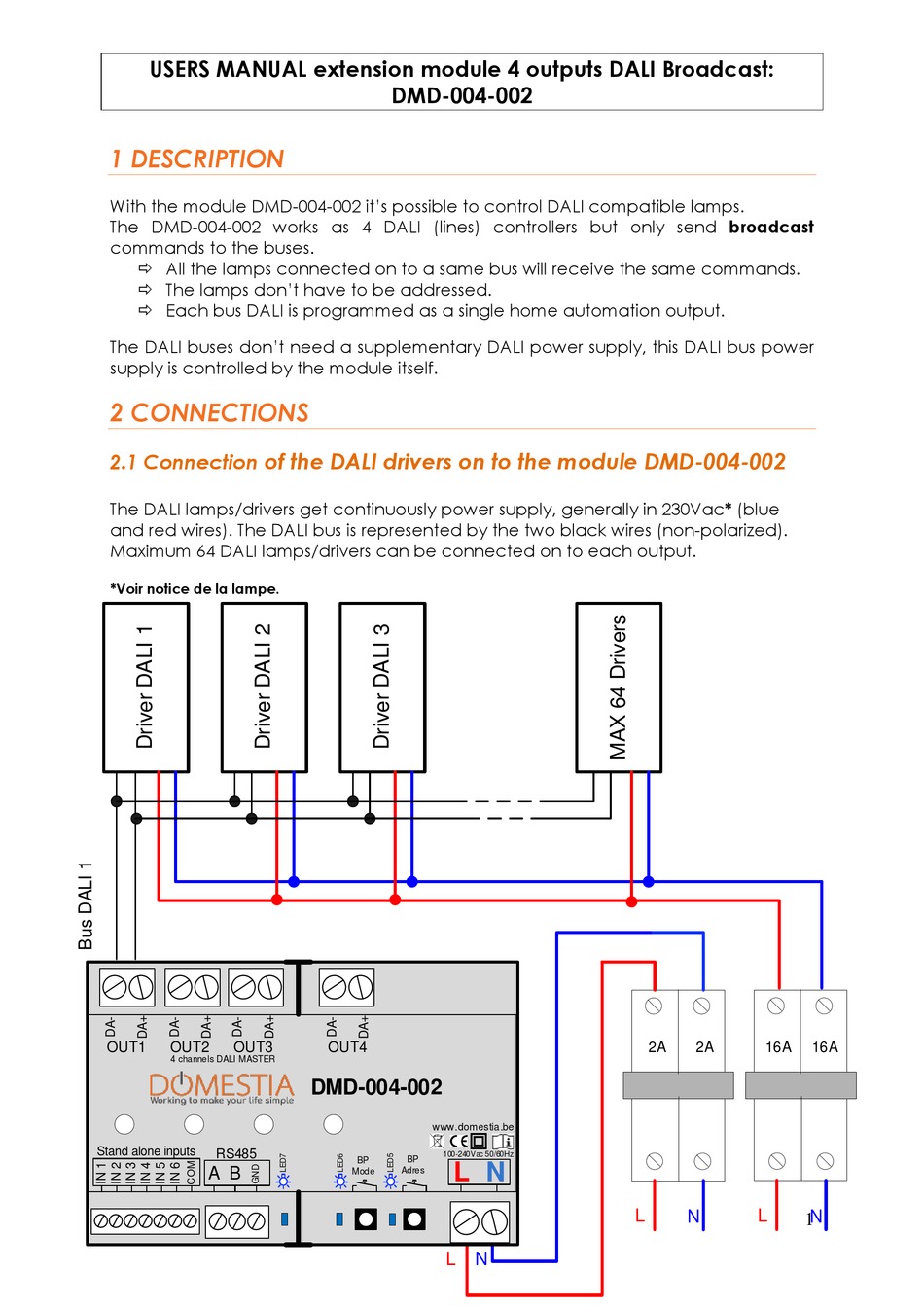

2 CONNECTIONS

of the DALI drivers on to the module DMD-004-002
2.1 Connection
The DALI lamps/drivers get continuously power supply, generally in 230Vac* (blue
and red wires). The DALI bus is represented by the two black wires (non-polarized).
Maximum 64 DALI lamps/drivers can be connected on to each output.
*Voir notice de la lampe.
