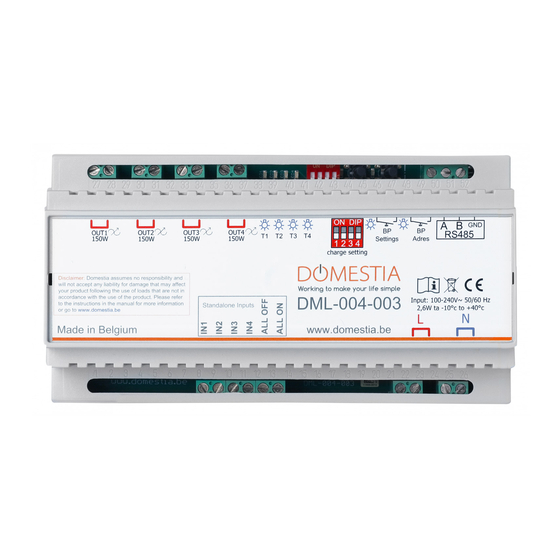

  • Page 2 DESCRIPTION Module DML-004-003 allows you to dim the luminosity on the followings loads  Dimmable LED lights 230V: 3W à 150W  Incandescent lights and halogens 230V : 5W à 250W  LV Halogen (230V) : 5W à 250W ...
  • Page 3 CONNECTION DML-004-003 extension module 4 dimmable outputs can function in “stand-alone” mode or in slave mode behind:  A relay output module DMC/DKS-012-00x  A relay output module DMC/DKS-008-001  A master control module DME-LAN Wiring example: Note: The output terminals are doubled. The two terminals correspond to the output signal of the phase. The...
  • Page 4 41-44 and « down ». 45-48 2) Half-automatical addressing: click on “Add half-automatically» then 49-52 press the addressing button of the module(s) DML-004-003 to add. 53-56 Click again on «Add half-automatically» to end the process of 57-60 adding modules. 61-64...
  • Page 5 3.4.1 Configuration from the application “Domestia Home Manager” When this module is connected to a master module of the type DMC-008-001 (from the firmware V1.28), DMC-012-003 or DME-LAN-002 (from the firmware V3.0) module DML-004-003 can be configured from our programmation app. « Domestia Home Manager ».
  • Page 6 4- Indicates the temperature of the output heatsink. 3.4.2 Configuration from the module’s setting button (BP Settings) DML-004-003 module is designed to work with different variable types of loads. The configuration must be adapted in function of the type of load.
  • Page 7 3.5.2 Programming from an old module DMC-012-002 When module DML-004-003 is connected as a slave of an old module DMC-012-002 it has to be programmed in the impulse mode, that means that LEDS « C » and « E » are lit (see « Diagram B » or user’s manual for the DMC-012-002).
  • Page 8  Repair attempts made by the customer or a third party which are not permitted  Damage caused by accident, force majeure or other causes for which Domestia cannot be held responsible ...
