OUT1
OUT2
OUT3
OUT4
150W
T1 T2 T3 T4
150W
150W
150W
Disclaimer:
Domestia assumes no responsibility and shall
accept no liability for damage that may e ect your
product arising out of a change in outputs that are not
compliant with the use of the product. Please refer to
manual instructions for more information or go to
www.domestia.be
Standalone Inputs
(Remove JP1)

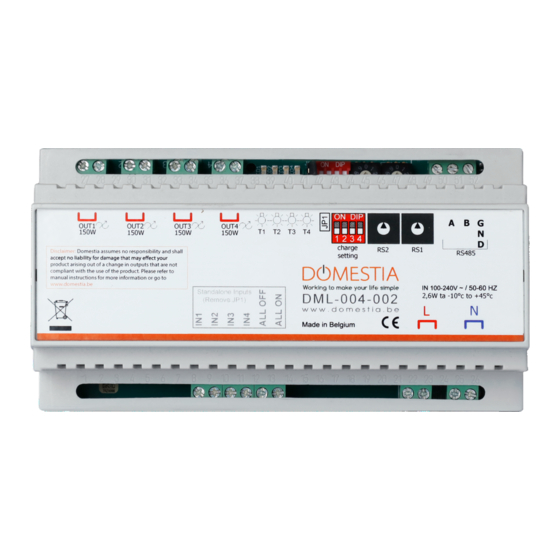

DML-004-002
4 DIMMABLE OUTPUTS COMPATIBLE
ON DIP
ON DIP
A B G
N
1 2 3 4
D
charge
RS2
RS1
RS485
setting
DML-004-002
2,6W ta -10°c to +45°c
N
L
www.domestia.be

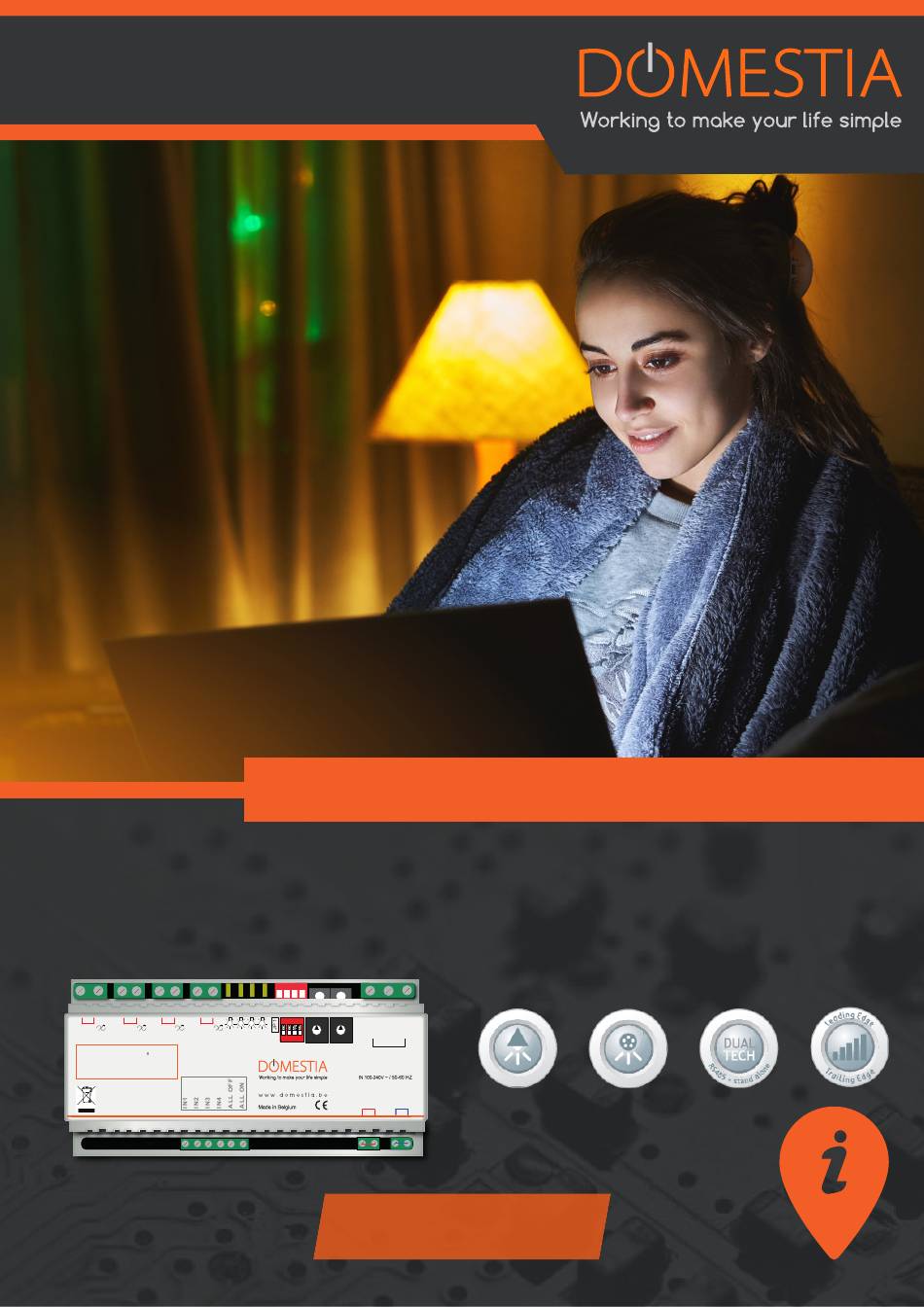

USERS MANUAL
|
EXTENSION MODULE
Advertisement
Table of Contents
Related Manuals for Domestia DML-004-002
Summary of Contents for Domestia DML-004-002
- Page 1 150W 150W 1 2 3 4 charge Disclaimer: Domestia assumes no responsibility and shall RS485 setting accept no liability for damage that may e ect your product arising out of a change in outputs that are not compliant with the use of the product. Please refer to manual instructions for more information or go to www.domestia.be...
- Page 2 1. DESCRIPTION The module DML-004-002 allows you to dim the luminosity of the following charges : • 230V dimmable LED lamps: 3W to 150W * • 230V incandescent and halogen lamps: 5W to 250W * • Non-dimmable lamps are not compatible with this product.
- Page 3 100 – 240 Vac ATTENTION Only in stand-alone mode (see point 6) The basic module DMC-012-002 (programmed as master – see instruction 3.2) occupies the addresses 1 to 12 and the DML-004-002 will occupy 4 addresses between 13 and 48 (see 3.1).
- Page 4 De 41 à 44 De 45 à 48 III. Adaptation to different types of lighting. The module DML-004-002 is designed to function with many different types of “VARIABLE” lighting elements. The configuration must be adapted accommodate each different type of element.
- Page 5 CONFIGURATION TABLE FOR THE “DIP SWITCH” IN RELATION TO THE TYPE OF LIGHTING ELEMENT USED : DIP SWITCH in OFF • LED dimmable with phase control position • Halogen with transformer electromagnetic • Halogen with a transformer electronic compatible « Leading Edge Dimmer » DIP SWITCH in ON •...
- Page 6 4. PROGRAMMING The module DML-004-002 must be programmed in relay mode, that is indicators C and E lit (see figure B) or user’s manual for the DMC-012-002). Having selected the Relay mode, use the LEFT & RIGHT buttons to select the dimmable outlets.
-
Page 7: Operating In "Stand Alone" Mode
5. OPERATING in “ Slave” mode 1 • As long as a push on a push button (BP) is in progress, the associated output will be variable. • Briefly pressing the PB when the output is “on” will turn it off. •... -
Page 8: Error Codes
PROBLEM POSSIBLE CAUSES Verify the connections to the bus RS485 The LEDs 1 to 4 light Impossible to control (connection between the DML-004-002 up in sequence. the lights. and the master module) Overheating of • The connected element is too... -
Page 9: Electrical Characteristics
Attempts to repair or tampering by the customer or an unauthorized third party. Damages caused by accident, natural disasters, or other events that Domestia cannot be held responsible. • Default that does not hinder the correct functioning or correct use of the material. - Page 10 • Emission current disturbance on the bus 150k-30MHz(current pinching) • EN 61000-3-2 Harmonic Emission to 2kHz • EN 61000-3-3 Flicker Emission 11.2 IMMUNITY 11.2.1 ENVELOPE • EN 61000-4-2 electrostatic discharge 8kV/air (insulated portion=box)criteria B • EN 61000-4-3 Immunity to field RF 80MHz-2GHz 10V/m in criteria B 11.2.2 LINES AC 230V •...
- Page 12 Jean Jaurès, 176 4430 Ans Belgium +32 4 372 07 16 +32 4 372 07 19 info@domestia.be...
