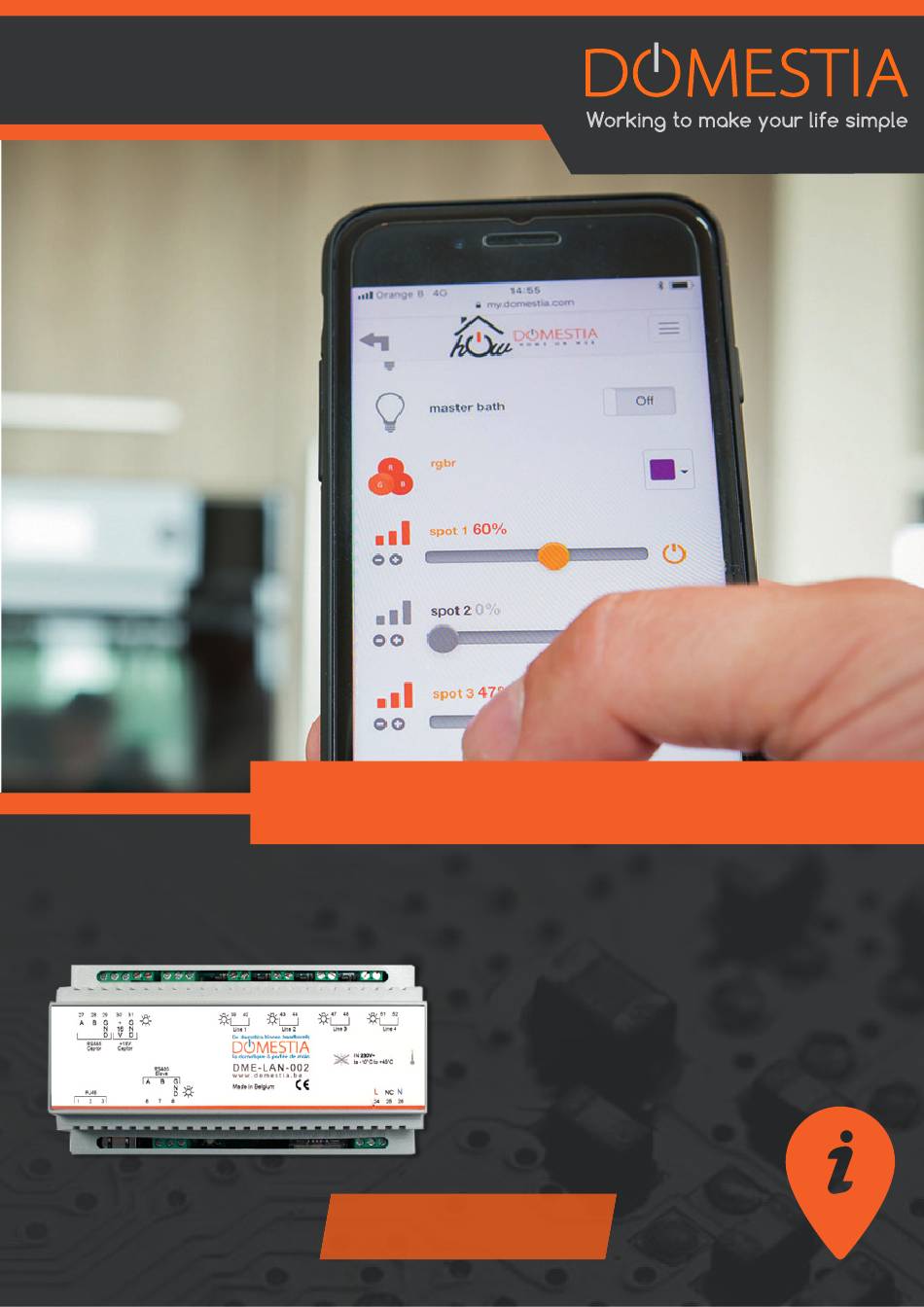

- Page 1 USERS MANUAL DME-LAN-002 Master control module www.domestia.be...
-
Page 3: Table Of Contents
Launch......................11 Choice of installer language..............12 Enter your installer details ................. 12 Details of the installation................13 Reading the content of the DME-LAN-002........... 14 Installation composition................14 Configuring the slave cards............... 16 Configuring the output names..............18 Configuration of the group................19 4.10 Configuring areas.................. -
Page 4: Description
• synchronisation of the system’s internal clock (automatic switching to summer/ winter time), based on international atomic time. The DME-LAN-002 has 4 input buses and can manage up to 240 commands identification modules (DMI-006-001, DMI-LED-006) that are distributed over the 4 buses. -
Page 5: Electrical Connection Of The Dme-Lan-002
LED lights up when there is a short circuit on the latter. 2. ELECTRICAL CONNECTION The DME-LAN-002 card is powered directly by the 230 VAC mains. The input voltage range is 100–240 VAC and 50–60 Hz. From the DME-LAN-002 card, the identification modules are connected via two wires. - Page 6 +12 V Captor Slave RJ45 IN 100-240V /50-60 Hz ta -10°c to +45°c DME-LAN-002 w w w . d o m e s t i a . b e Made in Belgium Connection RS485 ethernet to other card (s) 230 VAC...
- Page 7 Example of the DME-LAN-002 Connection ON DIP 50 51 ON DIP A B G OUT1 OUT2 OUT3 OUT4 250W 250W 250W 250W 1 2 3 4 charge DML-004-002 RS485 setting IN 230V~ 50 Hz Standalone Inputs 2,6W ta -10°c to +45°c...
-
Page 8: Network Connection
Example of the connection for identification modules (see the instruction manual for the DMI-LED-004 identification modules) 3. NETWORK CONNECTION 3.1. CONFIGURATION OF THE IP ADDRESS When you switch the DME-LAN on, if it is connected to a modem or router, it will automatically adapt its IP address to be compatible with the network used (if it is not connected to a router, it will be configured to IP address 192.168.1.210). -
Page 9: Creation Of A Network
PC via a wired network (in this case, the PC’s IP address must be configured manually) or via a Wi-Fi router (for example, a DRW-001-001-type router – see point 3.3). IP:192.168.1.210 Serveur my.domestia.be DME-LAN-002 Modem/Switch IP:192.168.1.1 Internet IP:xx.xx.xx.xx IP:192.168.1.2 Local Network IP:192.168.1.3 IP:192.168.1.4 Below: the local page configuration parameters for the DME-LAN-002... -
Page 10: Wi-Fi Router
Otherwise, check that you are connected to the Wi-Fi «TP-LINK_...» and restart » your management unit (DME-LAN-002) using the small white button on the side of the ABGND «RS485 Slave» terminal; one of the two devices is probably not connected properly. -
Page 11: Launching The Installer Application
4. LAUNCHING THE INSTALLER APPLICATION 4.1. LAUNCH Download Home Manager in advance from Apple, iOS, Android or from the downloads page of our website www.domestia.be. • Then click on the «Home Manager» icon » > to access these home screens... -
Page 12: Choice Of Installer Language
4.2. CHOICE OF INSTALLER LANGUAGE Click on Language/Installer (bulb icon). Then click on the corresponding flag to choose your language. 4.3. ENTER YOUR INSTALLER DETAILS Once your data has been validated, you will return to the home screen by clicking on the (V) icon. -
Page 13: Details Of The Installation
* A magnifying glass icon allows you to configure the IP address automatically. If you see a «No DME-LAN connected» message, refer to point 3.1. Please refer to point 3.1 to change the IP address of the DME-LAN-002. Save the details by clicking on the floppy disk. Confirm that you want to connect to the... -
Page 14: Reading The Content Of The Dme-Lan-002
If the connection with the DME-LAN-002 is possible (tablet/computer/smartphone and DME-LAN-002 is connected via a network and the IP parameters are compatible), you will be able to access the installation composition. 4.5. READING THE CONTENT OF THE DME-LAN-002 Click on DME-LAN connection (the solar panel icon). - Page 15 be lit when configuring the card’s address. For cards with 4 outputs, the graphic indicates the numbering to be applied to the encoding wheels. Add the type and exact number of cards that are included in your installation.
-
Page 16: Configuring The Slave Cards
DMC-012-002 By this stage, you have configured the card as a slave to the DME-LAN-002. All that remains is to establish the address of the card, based on the instructions provided by Home Manager. To do this, you must move to the left or right, depending on the LEDs. - Page 17 When the BCE LEDs and LED 3 for the DMCV-006 card are lit, you have configured your card as a slave to the DME-LAN-002 and the correct address. DMC-012-002 You can press the central button to validate and your card will switch into «RUN» mode...
-
Page 18: Configuring The Output Names
Then press stop/help. You can now start configuring the names of the outputs. 4.8. CONFIGURING THE OUTPUTS To configure an output, just click on its name. A window will open, allowing the name to be configured. You can enter a maximum of 20 characters (including spaces), its type and a possible timer. -
Page 19: Configuration Of The Group
Click on the icon GROUPS The DME-LAN-002 can be used to create up to 60 groups. To create one or more groups, click on the (+) icon and enter the name of the group by clicking into the name field (see figures 1 and 2 on page 15). - Page 21 GROUPS 1 «Toggle» or stepping switch group This group is used to turn lighting outputs on or off and to vary the brightness (dimmer). A short press on the button reverses the status of the outputs. A long press activates the outputs and, in the case of dimmers, varies the brightness.
- Page 22 In the case of a «Scenario» group, you must define the status of the output.Click on the output to change its status from active to inactive. Yellow = ON Grey = OFF Outputs that are not included in the group are listed in the column on the right. For «dimmer»...
-
Page 23: Configuring Areas
4.10. CONFIGURING AREAS Configuring areas The DME-LAN-002 can be used to create up to 60 areas. The areas are used to organise the outputs for the end user. For example, you can create a «Ground floor» area, an «Upstairs» area or an «Outdoor» area, etc. - Page 24 Select a type > subtype > output to be used > mode The temperature sensor must be connected to a relay (via the configuration menu for relay outputs). Automatic mode uses the settings programmed by time slots (maximum of six events per day).
-
Page 25: Saving The Configuration In The Dme-Lan
4.12. SAVING THE CONFIGURATION IN THE DME-LAN Press on the icon to save your configuration ! A progress bar is displayed and the configuration is saved after a few seconds. -
Page 26: Bus Dmx 512
4.13. X.X BUS DMX 512 The DME-LAN-002 has a DMX 512 output. This is a communication protocol used by some manufacturers of lighting equipment. The signal emitted by the DMX 512 bus comprises the status of the 192 outputs possible with a DME-LAN-002 (lighting value between 0 and 255). -
Page 27: Programming The Pushbuttons
5. PROGRAMMING THE PUSHBUTTONS 5.1. PROGRAMMING OUTPUTS In order to assign one or more buttons to an output, click on the output to be programmed. The programming window will appear. Next, click on the orange button to activate the programming for this output. The output is activated and you simply need to press the button(s) to assign it/them to this output. -
Page 28: User Interface (Local)
Windows PC, an Android smartphone, an iOS tablet, etc. However, some browsers are not fully compatible. In order to access the DME-LAN-002 web interface, you simply need to enter the IP address of the latter in your web browser (by default: http://192.168.1.210). -
Page 29: Home" Menu
«Parameters». Simply click on a menu to select it. 6.1. «HOME» MENU The «Home» menu contains the areas. You can select the area to display from the list on the left. The selected area appears in light grey. The list on the right contains the buttons for the selected area. The colour of the button indicates whether the output is active or inactive. -
Page 30: Events" Menu
The first frame is used to configure the sensor’s operating mode: • «Set point» indicates the current setting • «Set derogated» is used to modify the setting when in the «Derogation» and «Derogation continues» modes • The «Save» button is used to save the configuration. The second frame is used to configure the temperature settings for events. - Page 31 The first frame is used to configure the «Event type», the «event days» and the time at which the event occurs (the «Event time»). The «Save» button is used to save the configuration. There are three possible event types : «...
- Page 32 « Sunset » The event takes place at sunset. An offset of between -127 minutes and +128 minutes from sunset can be defined. The event takes place at sunset. An offset of between -127 minutes and +128 minutes from sunset can be defined. In this example, outputs 1 to 3 are lit and output 4 is off at the time of the event.
-
Page 33: Parameters" Menu
The first frame – «IP configuration» – (figure 34) is used to configure the parameters of the DME-LAN-002 network. A restart is required when these parameters are changed (the «Save and Restart» button saves the parameters and restarts the DME-LAN-002). The default IP address is 192.168.1.210. -
Page 34: User Interface: Home On Web
Home on Web offers remote management that lets you manage your installation at any time, from anywhere in the world, via your Smartphone, tablet or PC. Go to https://my.domestia.com to access Home On Web. 1. When you reach the «Log in» page, click on «Create an account»... - Page 35 2. When you reach the «Log in» page, click on «Create an account» areas 3. You can then manage your different via this intuitive platform.
- Page 36 Temperature 4. The tab allows you to automatically adjust your heating remotely and/or to view your sensors. Events 5. In the tab, you can determine the actions that will automatically be executed, either at a certain time or at sunrise/sunset.
-
Page 37: Troubleshooting
The DME-LAN-002 automatically adapts its IP address to the network it is connected to when it is started. Reset the IP parameters of the DME-LAN-002 by pressing the reset button 5 Network configuration times incorrect Scan the IP address of I can’t connect the Home... -
Page 38: Warranties
• Repair attempts made by the customer or by an unauthorised third party. • Damage caused by accident, force majeure or other causes for which Domestia cannot be held liable. - Page 40 Jean Jaurès, 176 4430 Ans Belgium +32 4 372 07 16 +32 4 372 07 19 info@domestia.be...
