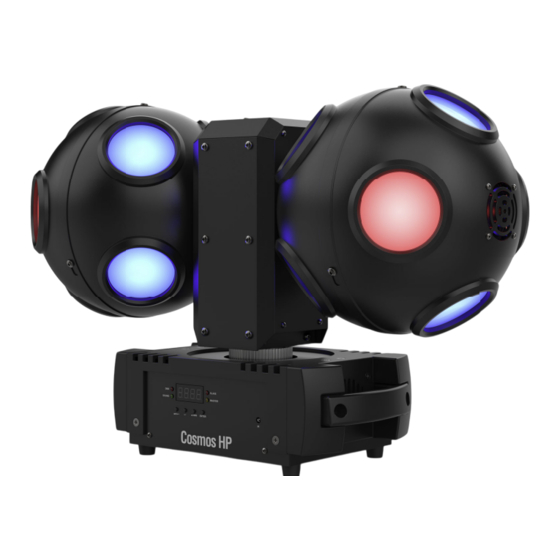

- Page 1 Cosmos HP User Manual...
-
Page 2: Table Of Contents
Static Color Mode......................10 Sound-Active Programs ....................10 Sound Sensitivity......................10 Factory Reset......................... 10 IRC-6 Infrared Remote Control ................Master/Slave Mode ....................5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Contact Us......................Warranty & Returns....................Cosmos HP User Manual Rev. 1... -
Page 3: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. Cosmos HP User Manual Rev. 1... -
Page 4: Safety Notes
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and Cosmos HP are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 5: Introduction
Introduction 2. Introduction Product Overview Microphone IR sensor Menu Display buttons Indicators Carry handle Fuse holder Power Power DMX in/ Cosmos HP User Manual Rev. 1... -
Page 6: Product Dimensions
Introduction Product Dimensions 11.6 in 295 mm 18.9 in 480 mm 3.5 in 90 mm Cosmos HP User Manual Rev. 1... -
Page 7: Setup
Additional products It is possible to link up to 50 Cosmos HP products on 120 VAC or up to 95 products on 230 VAC. The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local Chauvet distributor as power linking connectors and requirements may differ in your country or region. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Cosmos HP may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 9: Operation
If the starting address is set too high, access to some of the product’s channels could be restricted. The Cosmos HP uses up to 23 DMX channels in a 23Ch DMX mode, which defines the highest recommended address to 490. -
Page 10: Dmx Channel Assignments And Values
208 223 Red, blue, and white 224 239 Green, blue, and white 240 255 Red, green, blue and white 000 005 No function Strobe 006 255 Strobe, slow to fast Dimmer 000 255 0–100% Cosmos HP User Manual Rev. 1... - Page 11 000 005 No function 006 127 Rotation, fast to slow – Head 2 rotation 128 135 No function 136 250 Reverse rotation, slow to fast 251 255 Sound mode Cosmos HP User Manual Rev. 1...
-
Page 12: Configuration (Standalone)
4. Press <ENTER>. Auto Program Speed To adjust the auto program speed on the Cosmos HP, do the following: 1. Press <MENU> repeatedly until S-- shows on the display. 2. Use <UP> or <DOWN> to increase or decrease the program speed, from S. 001–100. -
Page 13: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The Cosmos HP is compatible with the IRC-6 infrared remote control from Chauvet. To enable or disable IRC-6 functionality, do the following: 1. Press <MENU> repeatedly until SEt shows on the display. 2. Press <ENTER> to select from on (enable), or oFF (disable). -
Page 14: Master/Slave Mode
Operation Master/Slave Mode The Master/Slave mode allows a single Cosmos HP product (the “master”) to control the actions of one or more Cosmos HP products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either standalone mode or with the IRC-6, while the slave products will be set to operate in slave mode. -
Page 15: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Cosmos HP User Manual Rev. 1... -
Page 16: Technical Specifications
0 to 20 Hz 360° Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR 6 or 23 Ordering Product Name Item Code UPC Number Cosmos HP 07052058 781462224066 Cosmos HP User Manual Rev. 1... -
Page 17: Contact Us
