Summary of Contents for Chauvet DJ CoDot ILS

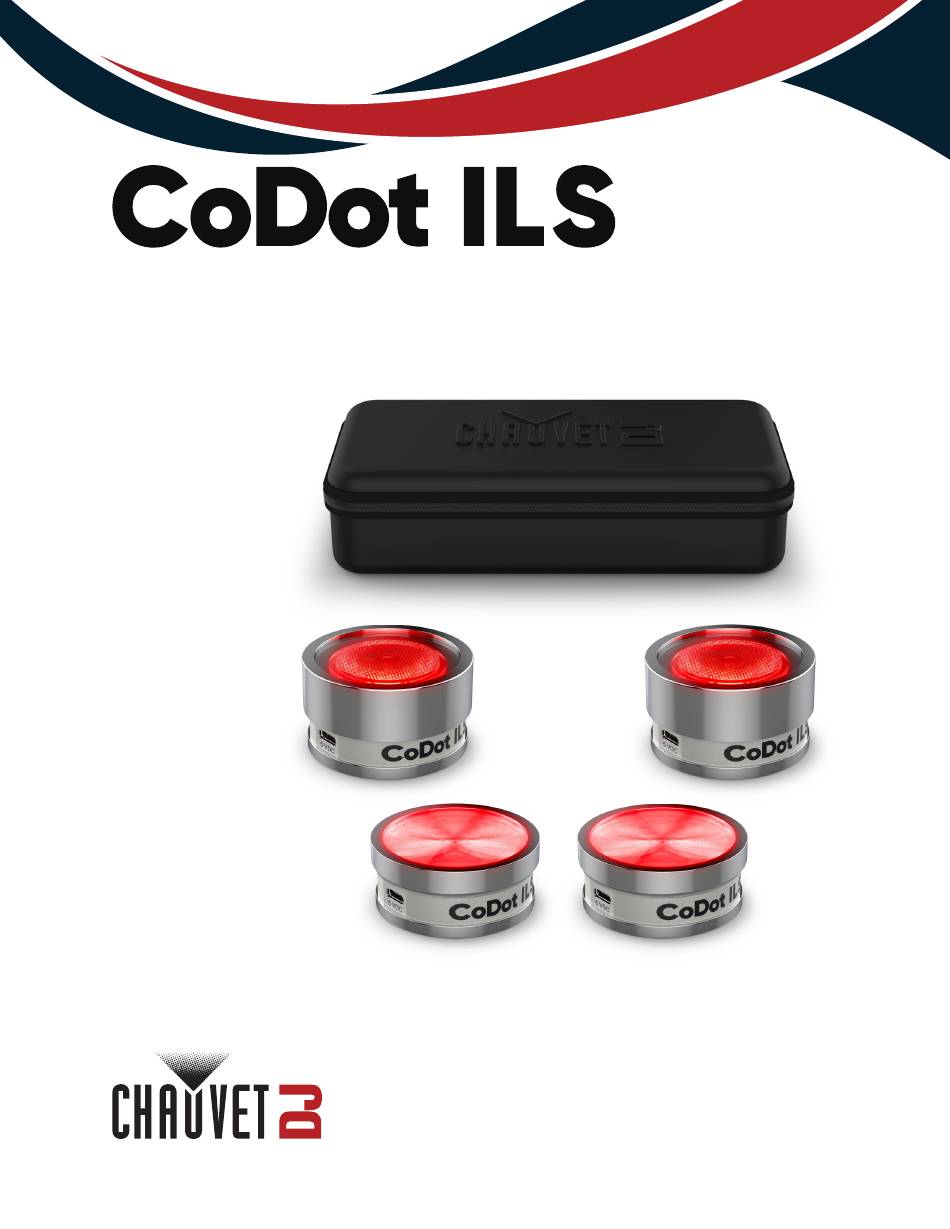

- Page 1 User Manual...
- Page 2 Edition Notes The CoDot ILS User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the CoDot ILS as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and CoDot ILS are registered trademarks or trademarks of Chauvet &...
- Page 3 Public RF Mode....................Disable RF Control ..................... RFC Remote Binding ..................RFC Group......................RFC Remote Control Operation ................. RFC-XL Remote Control Operation ..............5. Maintenance..................Product Maintenance ..................6. Technical Specifications..............Contact Us....................Warranty & Returns..................CoDot ILS User Manual Rev. 1...
- Page 4 Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. CoDot ILS User Manual Rev. 1...
- Page 5 This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and the user. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CoDot ILS User Manual Rev. 1...
- Page 6 USB type C ports. Doing so may cause damage to the product. Product Dimensions 2.2 in 57 mm 2.2 in 57 mm 1.33 in 33.8 mm 0.9 in 24 mm Wash lens Fresnel lens CoDot ILS User Manual Rev. 1...
- Page 7 3. Setup AC Power The CoDot ILS comes with an external auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
- Page 8 Press to scroll down the list of options or to find a lower value <ENTER> Press to activate a menu option or a selected value Menu Map Refer to the CoDot ILS product page on www.chauvetdj.com for the latest menu map and software. Mode...
- Page 9 D-Fi connection for DMX control. Personality and Starting Address The CoDot ILS uses up to 6 DMX channels in the 6Ch DMX mode, which defines the highest configurable address to 507. When selecting a starting DMX address, always consider the number of DMX channels the DMX mode uses.
- Page 10 The product will only respond to low frequencies of music (bass and drums). Custom Color Mixing To run the CoDot ILS with a custom static color, follow the instructions below. 1. Press <MENU> repeatedly until u-- shows on the display.
- Page 11 6. Press <ENTER>. Firmware Update The CoDot ILS allows for a firmware update through USB using the built-in type C USB firmware update port. To update the firmware using a USB flash drive, follow the instructions below: 1. Press and hold <MENU> until UPD shows on the display.
- Page 12 Operation D-Fi Master/Slave Mode The internal D-Fi transceiver allows a single CoDot ILS product (the “master”) to control the actions of one or more CoDot ILS products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to transmit in standalone mode, while the slave (receiver) products will be set to operate in slave mode.
- Page 13 If the product does not link to an RFC/RFC-XL for whatever reason, the display will show Ern. RFC Group The RFC-XL can control multiple products at once in defined groups. To set the CoDot ILS to an RFC-XL group, follow the instructions below: 1.
- Page 14 The RFC remote will not respond to any inputs when Freeze or Black Out is activated. If the remote does not respond when a button is pressed, try pressing <FREEZE> or <BLACK OUT>. Freeze or Black Out may have been inadvertently activated. CoDot ILS User Manual Rev. 1...
- Page 15 The RFC-XL remote will not respond to any inputs when Black Out is activated. If the remote does not respond when a button is pressed, try pressing <BLACK OUT>. You may have inadvertently activated Black Out. CoDot ILS User Manual Rev. 1...
- Page 16 6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. CoDot ILS User Manual Rev. 1...
- Page 17 442 lux 256 lux Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range Wireless D-Fi 4 or 6 Ordering Product Name Item Code UPC Number CoDot ILS 10032358 781462227067 CoDot ILS User Manual Rev. 1...
- Page 18 For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. CoDot ILS User Manual Rev. 1...
