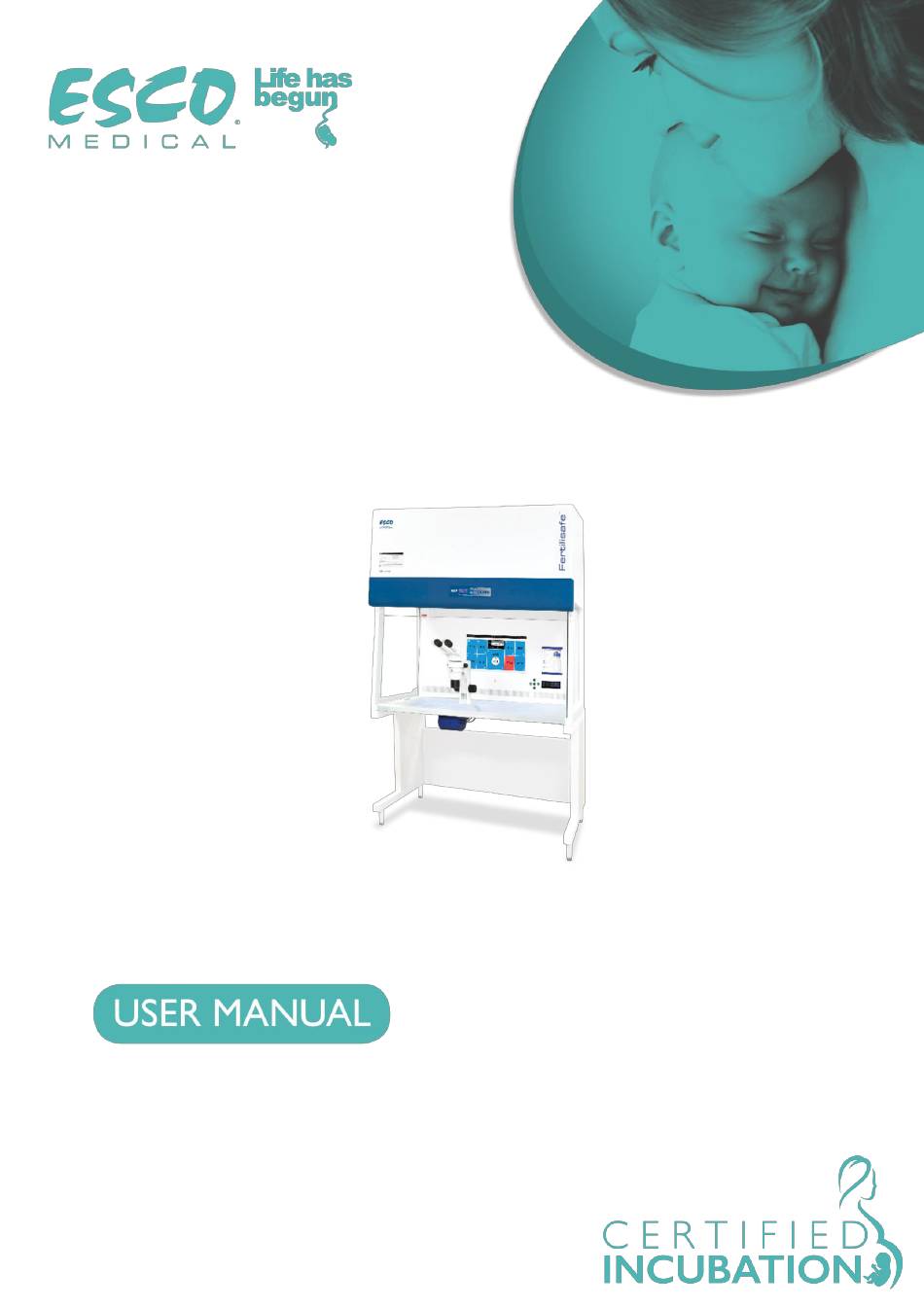

- Page 1 MAW, Multi-Zone ART Work- station ® Rev. 2.0 Date of Revised 06.12.2019 Rx only...
- Page 2 In no event shall Esco be held liable for any damages, direct or consequential, arising out of or related to the use of this manual.” MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®...
- Page 3 (2) years from the date of original purchase, provided the instrument is calibrated and maintained in accordance with this manual. During the warranty period Esco Medical will, at our option, either repair or replace a MAW, Multi-zone ART Workstation User Manual Rev.
- Page 4 This warranty is limited to repairing the instrument per Esco Medical's specifications. When you return an instrument to Esco Medical for service, repair or calibration, we rec- ommend shipment using the original shipping foam and container. If the original packing materials are not available, we recommend the following guide for repackaging: •...
- Page 5 In an event where the seal must be broken to gain internal access to the instrument, you must first contact Esco Medical Ltd. You will be required to provide us with the serial number for your instrument, as well as a valid reason for breaking the Quality Seal.
-
Page 6: Table Of Contents
13.1.1 Temperature sub-menu ..................... 21 13.1.2 Gas flow set point ........................22 13.1.3 Heated Mode ........................... 22 13.2 Surface temperatures ........................24 13.3 Menu Options ..........................26 13.3.1 Main Menu ..........................27 MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... - Page 7 21 Temperature validation ........................36 22 All in one PC ............................. 36 23 Maintenance ............................41 24 Emergency Procedures........................42 25 User Troubleshooting .......................... 43 26 Specifications............................44 27 Electromagnetic compatibility ......................45 MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®...
-
Page 8: How To Use This Manual
3 Indication for use The MAW, Multi-zone ART Workstation is a laminar flow workstation that is intended for working with gametes and/or embryos at or near body temperature during in vitro fertili- zation (IVF)/assisted reproduction technology (ART) procedures. The workstation also pro- vides humidified gas to maintain gametes and embryos in the working environment. -
Page 9: About The Product

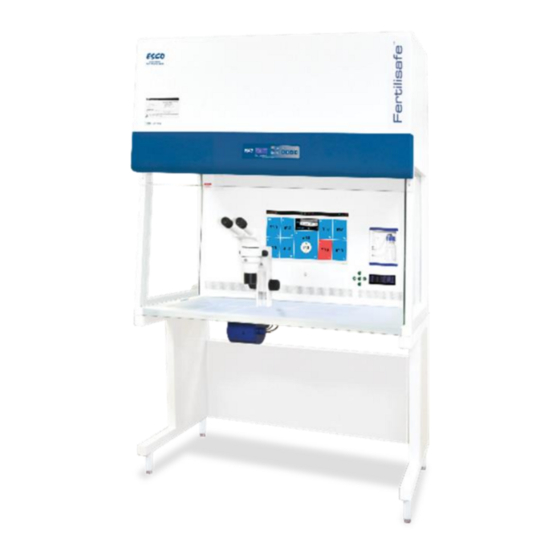

4 About the product The MAW, Multi-zone ART Workstation is a laminar flow workstation that is intended for working with gametes and/or embryos at or near body temperature during in vitro fertili- zation (IVF)/assisted reproduction technology (ART) procedures. The workstation also provides humidified gas to maintain gametes and embryos in the working environment. -
Page 10: Transport, Storage And Disposal
The device may have been used for treating and processing infectious sub- stances. Therefore, the device and device components may have been contaminated. Prior to disposal, all device components must be decontaminated. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... -
Page 11: Accessories Supplied
Clean the device components thoroughly and either disinfect or decontaminate them. 6 Accessories supplied • 1 HEPA filters for input gas supply • 1 USB stick containing Esco Medical Data logger software and PDF versions of the manuals • 1 gas hood • 1 carry tray •... -
Page 12: Safety Symbols And Labels
8 Safety symbols and labels There are several user labels on the surfaces of the MAW, Multi-zone ART Workstation ® guide the user. User labels are shown below. Table 7.1 Labels Description Image Packing box label: - If stored longer than one year from manu-... -
Page 13: Important Safety Instructions And Warnings
1. Do not use the product if the package is damaged. 2. Read the user manual completely before use 3. Always keep these instructions easily accessible near the device 4. The MAW, Multi-zone ART Workstation is heavy and can present a life-threatening dan- ®... -
Page 14: Post Installation
2. Servicing is required according to the service manual, or if the apparatus has been dam- aged in any way, e.g. if the apparatus has been dropped, exposed to rain or moisture, or does not operate normally. The MAW, Multi-zone ART Workstation contains high voltage com- ®... -
Page 15: Gas Connection And The Humidification System
Gas pressure for inlet should be 0.6 bar (8.70 PSI) and it must be kept stable! Always use a high-quality pressure regulator for both gas, that can be set with the required precision. Figure 12.2 Pressure regulator MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... - Page 16 Connect the tube between the port marked “Outlet” and the connector in the lid of the flask with the long silicone tube on the inside. The connector without the long tube must be con- nected to the port under the port marked “Outlet”. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®...
-
Page 17: Maw Without Compartments
Fill the flask to the bottle mark with sterile water. 12.1 MAW without compartments Figure 12.6 Gas choose from the nozzle The gas will flow through the nozzle in the table top work are. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... - Page 18 Carry Tray. Heating optimization plate can also be used. With the Carry Tray, several dishes can be conveniently being transported between a CO incubator and the Workstation. Figure 12.9 Carry Tray MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®...
-
Page 19: Maw With Compartments
Required input gas pressure: gas pressure for on the external source should be 0.6 bar (8.70PSI) and must be kept stable. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... -
Page 20: User Interface
The display consists of 7 x high brightness 16 segment LEDs. The first one is red, to indicate a user warning. The other 6 are blue and used to display normal running conditions MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... -
Page 21: Activating The Heat And Gas Flow Controls
When the display show the current temperature: Press and hold the SP key. Now the set point can be adjusted up or down with the arrow up or arrow down key. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... -
Page 22: Gas Flow Set Point
When the display show the gas flow: Press and hold the SP key. Now the Mode can be adjusted up or down with the arrow up or arrow down key. Mode 1: MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... - Page 23 Both compartments and the right side of the plate are on and controlled. The middle zone and left side area are off; as shown. All other zones are heated up to set point. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®...
-
Page 24: Surface Temperatures
Figure 13.4 Mode 4 13.2 Surface temperatures There are 12 separate PID controls for the temperature on the table plate. Each controller is responsible for controlling the temperature of a separate zones. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... - Page 25 Esco Medical recommends ONLY the YSI 4610 equipped with a 4611 probe. To achieve precision, the measurement device must be both fast in response and accurate.
-
Page 26: Menu Options
• Up and down (previous – next) • SP/Enter (change – accept) • Pressing and holding arrow up and down for 3 seconds will exit from any stage in the menu. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... -
Page 27: Main Menu
Calibrate holding down the SP key and using up and down arrow to adjust: Move to the next sub-menu item with arrow down or one step up with arrow up. Calibrate holding down the SP key and using up and down arrow to adjust: MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... - Page 28 Calibrate holding down the SP key and using up and down arrow to adjust: Move to the next sub menu item with arrow down or one step up with arrow up. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®...
-
Page 29: Service Sub-Menu
Calibrate holding down the SP key and using up and down arrow to adjust: Move one step up with arrow up 13.3.3 Service sub-menu Choose arrow right under Serv to enter the Service sub menu: The service sub menu is locked as default: The display will show: MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... -
Page 30: Alarms
5 minutes, until the audio alarm comes back on again. The alarm mute key will still show the alarm condition by blinking red while the alarm is muted. The zone triggering the alarm will be indicated by the number following “A”. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... -
Page 31: Gas Pressure Alarms
14.2 Gas pressure alarms If the CO gas supply is not attached correctly or a wrong CO gas pressure is applied to the system, the MAW, Multi-zone ART Workstation will go into CO pressure alarm mode. “CO2 ® P” will be displayed, indicating wrong incoming gas pressure. The alarm level is < 0.2 and >... -
Page 32: Loss Of Power Alarm
Please follow these steps to check the firmware which is currently installed on your unit. In the menu locate the Service sub menu “Serv”. Choose arrow right under “Serv” to enter the Service sub menu: The service sub menu is locked as default: MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... -
Page 33: The Laminar Flow
Switching on/off the interior light. 18 Cleaning instructions 18.1 Considerations about a sterile device The MAW, Multi-zone ART Workstation is not a sterile device: It is not delivered sterile, ® and it is not assumed to be possible to keep it sterile when in use. -
Page 34: Manufacturer Recommended Cleaning Procedure
® Periodic cleaning of the device (with no embryos in) Wearing gloves and good handling techniques are important to successful cleaning. 1. Power off the MAW, Multi-zone ART Workstation (underside panel) ® 2. It is recommended that the unit is cleaned with aqueous 70% isopropyl alcohol:... -
Page 35: Heat Optimization Plates
® 5. Inspect the device and if visually clean the device is ready for use. If not visually clean go to step 3 and repeat the procedure 6. Turn on the MAW, Multi-zone ART Workstation (rear panel) ® 19 Heat optimization plates. -
Page 36: Humidification
Figure 21.1 Pin A connector and wire can be supplied by Esco Medical or your distributor. Through the connectors the temperature conditions in the zones can be logged continually externally without compromising any performance of the unit. - Page 37 Figure 22.2 The main view The blue color signifies that the zone is in normal operation mode. If there is an alarm the color will shift to red on the relevant zone. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®...
- Page 38 “History” toggles the graph view, where graphs can be shown for all the param- eters. This is useful for documentation of the systems stability and to identify errant behav- ior. Figure 22.4 The greenhouse “Main” brings up the main view MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®...
- Page 39 Pressing the CO button will shift from the temperature view to the CO gas view. Here the user can see the historical data for the flow and pressure. Figure 22.6 The historical data MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®...
- Page 40 The 3 action buttons in the right-hand side. The button “reconnect” allows the system to reconnect with the sensors (in case of data loss due to USB connection issues). The button “minimizes” - toggles the full screen format off for the workstation logger. The button MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®...
-
Page 41: Maintenance
23 Maintenance The MAW, Multi-zone ART Workstation is designed to be easy to use, but reliable and safe ®... -
Page 42: Emergency Procedures
3. Suitable cleaning according to the intervals prescribed by the clinical practice in the laboratory where the MAW, Multi-zone ART Workstation is in use. Intervals longer ® than 14-days between cleaning are not recommended by the manufacturer. It is essential to perform the inspection and servicing at the intervals described in the MAINTENANCE manual. -
Page 43: User Troubleshooting
Please refer to software instal- driver not properly installed lation guide Table 25.4 Display Symptom Cause Action Contact your Esco Medical Dis- Missing segment(s) in display Failure in the PCB tributor to replace the PCB MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®... -
Page 44: Specifications
Cause Action Absent or erratic function of Contact your Esco Medical Dis- Failure in the keys keys tributor to replace the keys 26 Specifications Table 26.1 MAW, Multi-zone ART Workstation ® specifications Technical specifications MAW-4D MAW-6D MAW-6D DUAL MAW-6D MP... -
Page 45: Electromagnetic Compatibility
The MAW, Multi-zone ART Workstation is intended for use in the electromagnetic environment ® specified below. The customer or the user of the MAW, Multi-zone ART Workstation should as- sure that it is used in such an environment. IEC 60601... - Page 46 IEC 61000-4-8 tion in a typical commercial or hospital environment. MAW, Multi-zone ART Workstation User Manual Rev. 2.0 ®...
- Page 47 Guidance and manufacturer’s declaration – electromagnetic immunity The MAW, Multi-zone ART Workstation ® is intended for use in the electromagnetic environment specified below. The customer or the user of the MAW, Multi-zone ART Workstation ® should as- sure that it is used in such an environment.
- Page 48 Recommended separation distances between portable and mobile RF communication equipment and the MAW, Multi-zone ART Workstation ® The MAW, Multi-zone ART Workstation ® is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MAW, Multi-...
