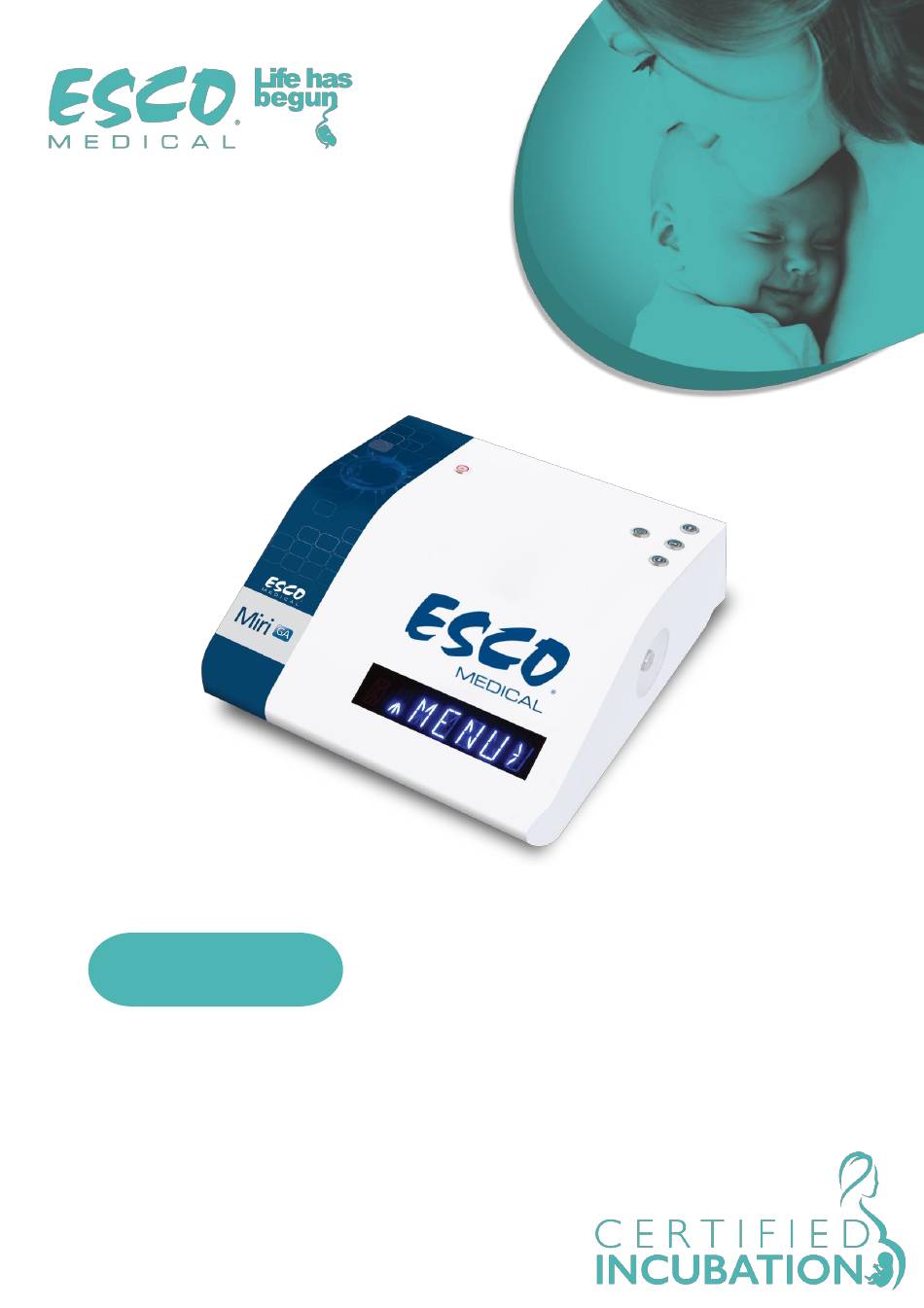

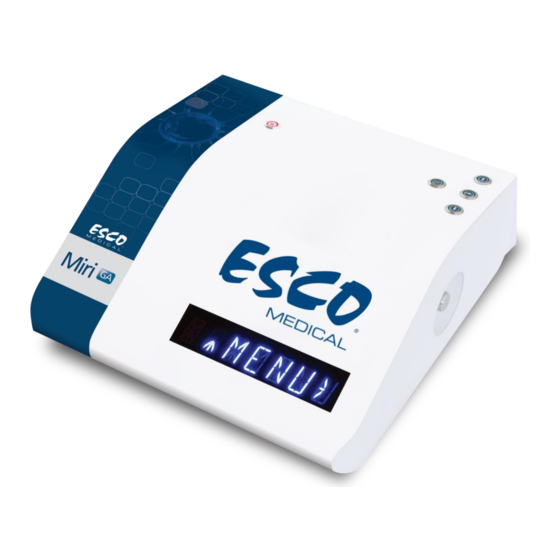

- Page 1 USER MANUAL CO2/O2 Gas and temperature Validation ® unit MIRI GA Rev. 2.0 Date revised 11.02.2020 Rx only...
- Page 2 In no event shall Esco be held liable for any damages, direct or consequential, arising out of or related to the use of this manual.” Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0...
- Page 3 Certification This instrument has been thoroughly tested/inspected and found to meet Esco Medical´s manufacturing specifications when shipped from the factory. Calibration measurements and testing are traceable and done according to Esco Medical ISO certification.
- Page 4 During the warranty period Esco Medical will, at our option, either repair or replace a product that proves to be defective at no charge, provided you return the product (shipping, duty, brokerage and taxes prepaid) to Esco Medical.
- Page 5 WARNING Unauthorized user modifications or application beyond the published specifications may re- sult in electrical shock hazard or improper operation. Esco Medical will not be held responsi- ble for any injury sustained due to unauthorized equipment modifications. ESCO MEDICAL LTD. DISCLAIMS ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR APPLICATION.
-
Page 6: Table Of Contents
13 Firmware ..........................24 14 Cleaning instructions ......................24 15 Alarm switch for an external system ................... 24 16 Maintenance ........................25 17 The Data logger ........................26 Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®... - Page 7 17.2.2 History View ......................... 28 17.2.3 Alarm View ........................29 17.2.4 Report View ........................30 17.2.5 Settings .......................... 30 18 User Troubleshooting ......................31 19 Specifications ........................33 Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®...
-
Page 8: How To Use This Manual
® Employing state of the art sensor technology the MIRI GA can take sequential gas samples from up to 6 ports and measure constantly on up to 6 PT1000 sensors. -
Page 9: Accessories Supplied
4 Accessories supplied • 2 sampling connectors; • 1 USB key containing Esco Medical data logging software and the manuals as PDF files; • 1 Data Extension Cord; • 1 power cord. 5 Manuals supplied ®... -
Page 10: Safety Symbols
7. Logo 8. Year of manufacture Label indicates the potential risk of electrical shock (never remove any cover) ® Table 6.2 Labels on the MIRI GA Description Image PT 1000 sensor input. 6 × connectors for a PT 1000 signal. -
Page 11: Important Safety Instructions And Warnings
• Servicing is required according to service manual or if the apparatus has been damaged in any way, such as if the apparatus have been dropped, exposed to rain or ® moisture, or does not operate normally. The MIRI GA contains high voltage components that may be hazardous. -
Page 12: Getting Started
8 Getting started • Follow the guidelines in the safety instructions and warnings section; • Connect the mains cable to mains outlet; • Connect the mains cable to the MIRI GA ® • Connect the gas sample lines; • Switch on the MIRI GA ®... -
Page 13: Gas Without Loop
6 ports on the side. ® If the circuit is not looped, the exit on the back of the MIRI GA leads the gas sampled into the room. -
Page 14: Gas Connection With Loop
Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0... -
Page 15: User Interface
Is used to select items in the menu in order to change their status. Are used to navigate through the menu and display values. Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®... -
Page 16: Activating The Unit
Press and hold arrow up and down 3 seconds to access menu: Navigate in menu using: • arrow right (in) • up and down (previous – next) • SP/Enter (change – accept) Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®... -
Page 17: Main Menu
The display will show: This function is used to set a temperature alarm; this function works in conjunction with “TP Lim” (i.e. Temperature limits). Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®... - Page 18 “TP SP” is set to 37.0 C and the “TP LIM” is set to -/+0.5. An alarm will be activated if the measured temperature(s) is/are higher than 37.5 C or lower than 36.5 Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®...
- Page 19 “A SAMP” is used for auto sample; this function can be set to “OFF”, “0.30 m”, “1.00 m” or “5.00 m”. If “A SAMP” is set to 1.00 Min the system will change reading from sampling port every minute. The order is from 1-6. Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®...
-
Page 20: Calibration Sub Menu
Each press corresponds to a 0.05 °C change and so only two presses will make the display change 0.1. Move to the next sub menu temperature calibration channel 2 with arrow down or one step up with arrow up. Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®... - Page 21 Each press corresponds to a 0.05 °C change and so only two presses will make the display change 0.1. Move to the next sub menu temperature calibration channel 5 with arrow down or one step up with arrow up. Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®...
-
Page 22: Service Sub Menu
The display will alternate between: And the currently installed firmware version: Ver 2.0 is only shown as an example. Consult Esco Medical or the local representative for the number of the most current version. Gas and temperature Validation unit MIRI GA Use Manual Rev. -
Page 23: Alarms
In case of there are more than one alarms the display will read “A MULTI” then all alarms will be shown one by one. All 6 temperature channels can trigger a temperature according to the user set alarm limits. Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®... -
Page 24: Loss Of Power Alarm
12.2 Loss of power alarm ® If the power is disconnected the MIRI GA will give an audio alarm for approximately 4 seconds and the LED in the alarm mute key will flash. -
Page 25: Maintenance
16 Maintenance ® The MIRI GA is designed to be easy in use but reliable and safe operation of this equipment is based on the following condition: Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®... -
Page 26: The Data Logger
1: Correct calibration of temperature and gas levels using high precision equipment in the intervals prescribed by clinical practice at the laboratory where the MIRI GA is in use. Longer than 14 days between validations is not recommended by the manufacturer. - Page 27 Either switch manually between sample ports or set the automatic sample switch mode (see section 11.3.2.). ® Parameters are set on the MIRI GA . The data logger software only shows the results, and lets the user document or work with the data.
-
Page 28: History View
A press on the reset button will jump back to full data view. Figure 17.4 Port 1 and 4 toggled on Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®... -
Page 29: Alarm View
The alarm is indicated by a red dot or line (if the alarm persists) under the relevant parameter (Temperature, CO or O ) for each of the 6 channels. Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®... -
Page 30: Report View
Figure 17.8 Gas analyzer report 17.2.5 Settings By pushing the setting button in any view, a window will appear that lets the user set up the alarm e-mail sending option. Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®... -
Page 31: User Troubleshooting
There is no flow Flow is off Turn on the valve always shown 0.0, and there is a Leakage in the system Contact your Esco Medical Dis- flow tributor for details. Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®... - Page 32 Medical Distributor for details. Table 18.5 Keyboard Symptom Cause Action Absent or erratic function of Failure in the keys. Replace the keys. Contact your Esco keys. Medical Distributor for details. Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®...
-
Page 33: Specifications
2.5 mm Jack. 0-1 A; 0 – 50 V DC Data logging software included Windows 7 or 8 Full documentation feature with report function. PDF, Excel or Word. Gas and temperature Validation unit MIRI GA Use Manual Rev. 2.0 ®...
