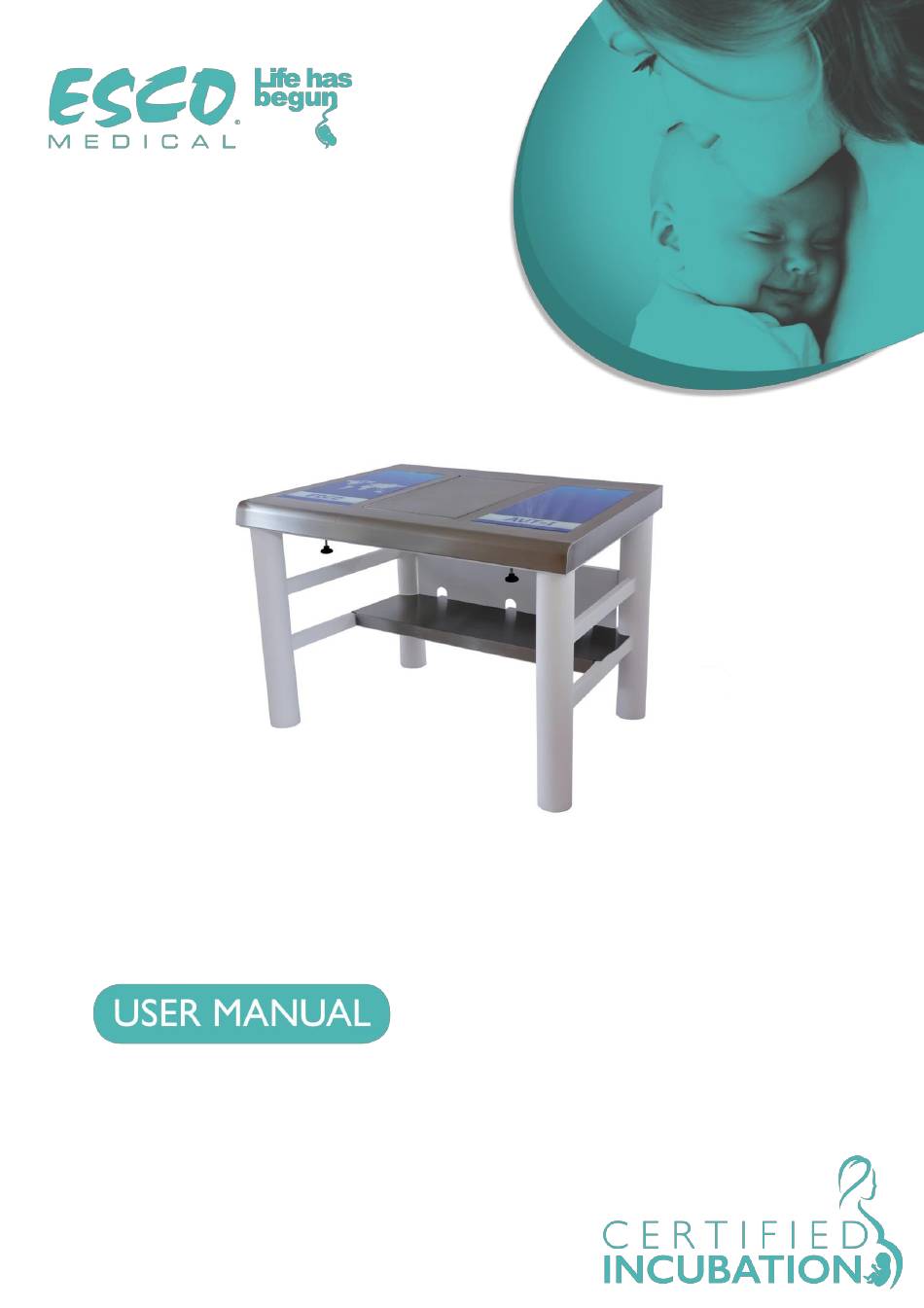

  • Page 1 ® Anti-vibration Table (AVT-1) Rev. 1.8 Rx only...
  • Page 2 Esco makes no representations or warranties as to the accuracy of the information contained in this manual. In no event shall Esco be held liable for any damages, direct or consequential, arising out of or related to the use of this manual.” ® AVT-1 User Manual Rev. 1.8...
  • Page 3 If the instrument is delivered in a good physical condition but does not operate within specifications, or if there are any other problems caused not during the shipping, please contact your local sales representative or Esco Medical immediately. Standard Terms and Conditions Refunds &...
  • Page 4 During the warranty period Esco Medical will, at our option, either repair or replace a product that proves to be defective at no charge, provided you return the product (shipping, duty, brokerage and taxes prepaid) to Esco Medical.
  • Page 5 WARNING Unauthorized user modifications or application beyond the published specifications may result in electrical shock hazard or improper operation. Esco Medical will not be held responsible for any injury sustained due to unauthorized equipment modifica- tions.
  • Page 6 COMPONENTS. UNAUTHORIZED REMOVAL OF THE INSTRUMENT COVER SHALL VOID THIS AND ANY OTHER EXPRESSED OR IMPLIED WARRANTIES. ® AVT-1 User Manual Rev. 1.8...

  • Page 7: Table Of Contents

    6.1 Before installation ................... 10 6.2 During installation ................... 10 6.3 Post installation ....................10 7 Getting started ....................... 10 8 Cleaning instructions ..................... 13 9 Maintenance ......................14 10 User troubleshooting ................... 14 11 Specifications ...................... 15 ® AVT-1 User Manual Rev. 1.8...

  • Page 8: How To Use This Manual

    3 About the product ® Esco Medical AVT-1 is an anti-vibration table, intended to be used with high- magnification microscopes. It isolates the microscope from vibrations generated in the room where the table is placed and from vibration generated above or below any part of the table top, that is not part of the AVT platform.

  • Page 9: Accessories Supplied

    AVT-1 . The product is manufactured under ISO 9001 Quality Management System. Personal Protective Equipment (89/686/EEC) and Machine Directive (2006/42/EC) is ® not applicable for AVT-1 4 Accessories supplied • 1 manual • 1 level • Cable attachments •...

  • Page 10: Important Safety Instructions And Warnings

    6. Year of manufacture 6 Important safety instructions and warnings 6.1 Before installation 1. Do not use the product if the package is damaged. Contact Esco Medical or the local representative. 2. Read the User manual completely before use. 3. Always keep these instructions easily accessible near the device.
  • Page 11 The float part labeled 1 should be placed on the springs and there should be equal dis- tance left from the hole on all sides, in order to have space for centering the floating plate. The holding screws should be facing up. ® AVT-1 User Manual Rev. 1.8...
  • Page 12 The float element should be level with the table top. In the picture above it is too high. The adjustment can only be done after the microscope has been placed on the float, as the weight will push it down. ® AVT-1 User Manual Rev. 1.8...

  • Page 13: Cleaning Instructions

    Switch off the devices on the table and remove the mains leads. Clean the surfaces of ® AVT-1 with a 70% alcohol solution, using a lint-free cloth. A list with approved cleaning liquids can be supplied on request.

  • Page 14: Maintenance

    9 Maintenance ® Esco Medical AVT-1 is designed to be easy to use and requires almost no mainte- nance at all. Over time, adjustments may become necessary. The rubber paste should be changed every 2 years, the springs – every 6 years.

  • Page 15: Specifications

    11 Specifications ® Table 11.1 AVT-1 specifications ® Technical specifications AVT-1 1200 × 800 × 800 mm Overall dimensions (W x D x H) Weight 70 kg Material Powder painted mild steel/Stainless steel/Glass Size 540 × 340 Float Power consumption...
