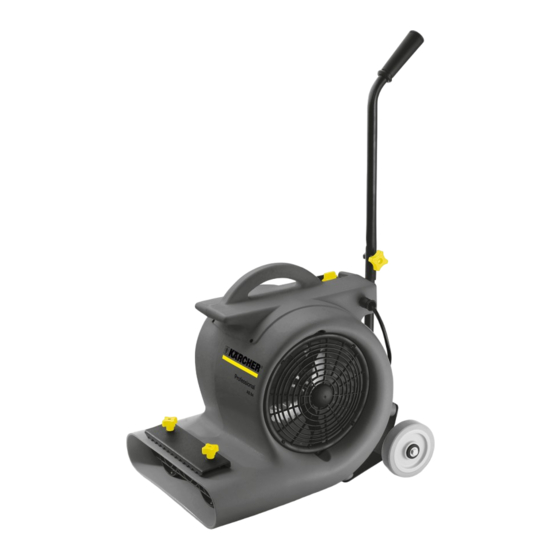

- Page 1 Operating Instructions (ENG) MODELS: 1.004-064.0 1.004-052.0 AB84 CLASSIC AB84 EU 1.004-065.0 1.004-053.0 AB84 CLASSIC EU AB84 CUL 1.004-054.0 AB84 JP 1.004-055.0 AB84 GB 1.004-056.0 AB84 CN Read instructions before operating the machine. 86371920 10/31/19...
-
Page 2: Machine Data Log/Overview
MACHINE DATA LOG/OVERVIEW MODEL _______________________________________ DATE OF PURCHASE __________________________ SERIAL NUMBER ______________________________ SALES REPRESENTATIVE # _____________________ DEALER NAME ________________________________ OPERATIONS GUIDE NUMBER ___________________ PUBLISHED __________________________________________ YOUR DEALER Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ For the name and address of your dealer contact: Windsor Industries Phone Number: _________________________________________________________________________________________ 86371920 AB 84 12/14/12... -
Page 3: How To Use This Manual
HOW TO USE THIS MANUAL The MAINTENANCE section contains preventive This manual contains the following sections: maintenance to keep the machine and its components in good working condition. They are HOW TO USE THIS MANUAL listed in this general order: SAFETY OPERATIONS Power cord/switch... -
Page 4: Table Of Contents
TABLE OF CONTENTS Machine Data Log/Overview......2 HOW TO USE THIS MANUAL How to use this Manual........ 3 Table of Contents ......... 4 SAFETY Important Safety Instructions ......5 Hazard Intensity Level........6 Grounding Instructions........7 OPERATION Set Up.. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual. -
Page 6: Hazard Intensity Level
HAZARD INTENSITY LEVEL The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death . -
Page 7: Grounding Instructions
GROUNDING INSTRUCTIONS THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: he amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors. EXTENSION CORDS: If an extension cord is used, the wire size must be at least one size larger than the power cord on the... -
Page 8: Operation
OPERATION & MAINTENANCE OPERATION 1. Open the doors or windows if possible to aid in ventilation. 2. Ensure that the unit is turned off, plug the power cord into the outlet. 3. Turn the switch to the desired speed. 4. Turn the unit off before un-plugging the power cord from the outlet. -
Page 9: Wiring Diagram
WIRING DIAGRAM 4-POSITION SWITCH (86225090) POWER BLK/BRN WHT/BLU CAPACITOR (86216620) (86136310) (86288710) (86137330) MOTOR 86247130 115V) (86005280 230V) REAR VIEW OF SWITCH COVER UNUSED TERMINALS WITH FEMALE COUPLER 86266020. 86371920 AB 84 12/14/12... -
Page 10: Body Assembly
AIR BLOWER 86371920 AB 84 09/03/13... - Page 11 AIR BLOWER PARTS LIST SERIAL NO. REF PART NO. PRV NO. QTY DESCRIPTION NOTES: FROM 86136750 70765 SCREW, M4-.7 X 15 PNHSM 86214700 36210 9" BLOWER GRILL 86136770 70768 SCREW, M6-1 X 16 FLHMS BLKOX 86136630 70246 SCREW, 8-32 X .25 PHPNHMS BLK 86137390 87255 WASHER M4 RIVET BACKUP...
-
Page 12: Handle & Wheels
AIR BLOWER HANDLE 86371920 AB 84 12/14/12... - Page 13 AIR BLOWER HANDLE PART SERIAL DESCRIPTION NOTES: 86004070 36196 GRIP, POLISHER HANDLE 86292520 TUBE, HANDLE UPR, LONG 86371700 KNOB, HANDLE LOCK, YLW 86225400 78485 TUBE, HANDLE LOWER 86223500 67469 RING, 13MM EXTERNAL SNAP 86222270 57276 NUT, .51 PUSH SPRST 86226020 89206 WHEEL 5D X 1.25 X 13MMID GRY 86137280...
