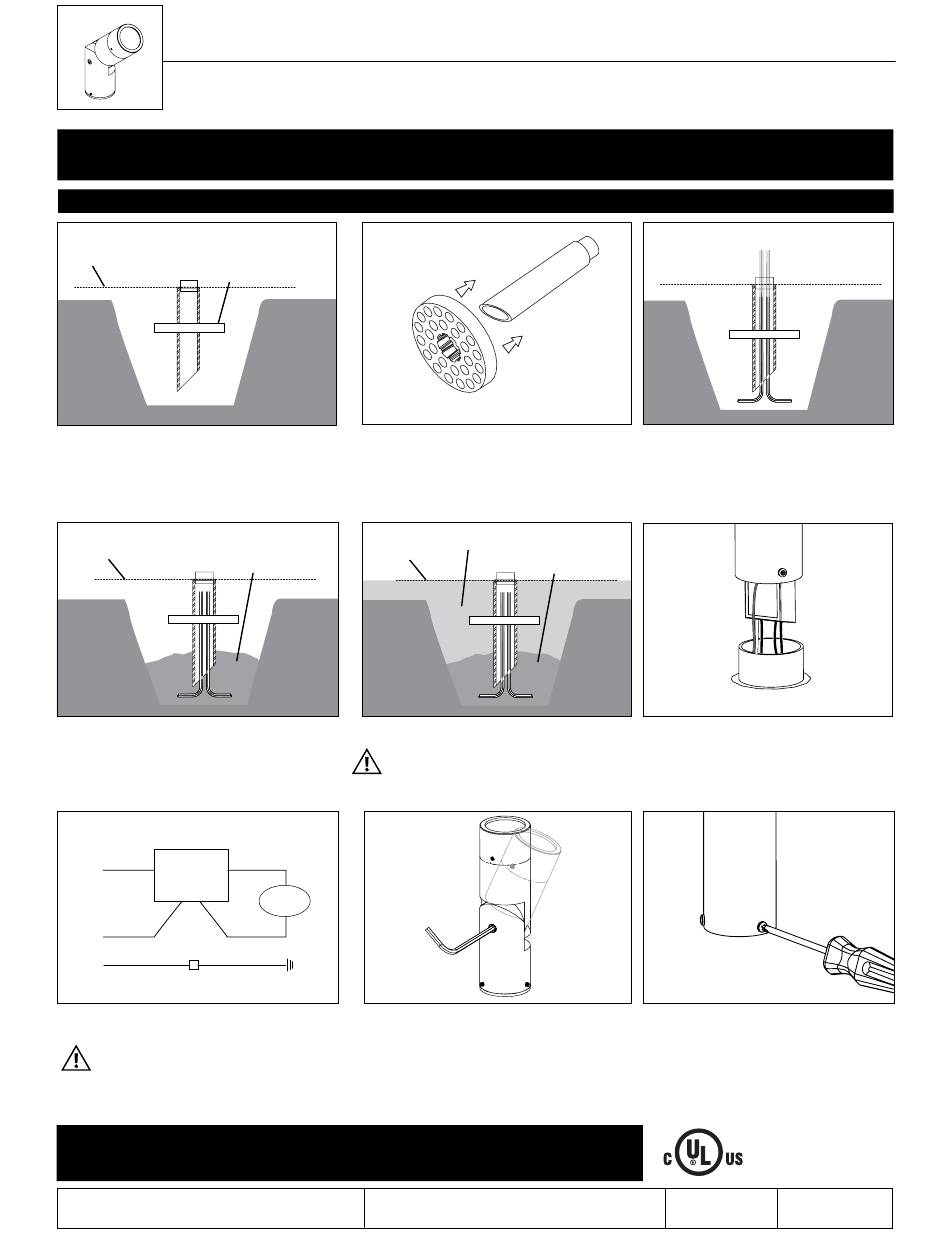

B-K lighting ArtiStar Remote ES16 Metal Halide Installation Instructions Manual page 4

DRIVER HOUSING MUST BE INSTALLED ABOVE GRADE. POWER PIPE™ IS LABELED AT GRADE LEVEL.
Power Pipe Mounting Option
Finished grade
Concrete
Finished grade
Finished grade
1. Excavate trench according to designed lighting
plan. Dig hole a minimum of 18" deep and 10" wide
to accommodate Power Pipe™ at desired fixture
location(s).
Finished grade
Remote
12V
Transformer
(by others)
4. Back fill with pea gravel or sand prior to pour.
FIXTURE
COM
REMOTE
LINE
Finished grade
Stability Flange
COM
GROUND
WIRING DIAGRAM
WIRING DIAGRAM
All line voltage connections must be made
in compliance with the National Electrical
Code. Failure to do so will void warranty.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
Above Ground
B-K LIGHTING
Installation
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING
IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
Installation Instructions
DRIVER HOUSING INSTALLED BELOW GRADE WILL VOID WARRANTY
Optional
Stability Flange
Pea gravel or sand
Stability Flange
Pea gravel or sand
(+)
POWER
SUPPLY
FIXTURE
(-)
GROUND
Pea gravel Pea gravel
or sand or sand
Concrete
Pea gravel Pea gravel
Finished grade
2. Slide optional Stability Flange onto Power
Pipe™. Use optional Stability Flange to aid in
installation of Power Pipe™.
Concrete
Finished grade
Pea gravel or sand
5. Pour concrete (By Others).
Label on Power Pipe™ indicates installation
depth with finished grade.
Finished grade
Pea gravel or sand
Above Ground
Installation
7. Insert wires and connectors into fixture base
and attach to Power Pipe™. To aim fixture,
use 3/16" Allen wrench to slightly loosen ¼"-28
stainless steel black oxide socket head screw at
the knuckle for vertical aiming purposes. Rotate
fixture to aim to desired horizontal location.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
ArtiStar™ Remote
ES16 Metal Halide
Pea gravel or sand
3. Pull wires from remote ballast housing
necessary for installation (By Others) through
Power Pipe™. Allow for additional cable to
make connections to fixture lead and future
service. Place Power Pipe™ in hole.
6. Make two connections from remote ballast
housing to fixture leads using proper wire
connectors (By Others). Connect incoming
ground wire to ground wire provided in
fixture body. See wiring diagram.
Concrete
Pea gravel Pea gravel
or sand or sand
8. Tighten three (3) #8-32 stainless steel round
head Phillips screws at base and 1/4"-28
stainless steel black oxide socket head screw
at the knuckle to secure all aiming positions.
Below Ground
Installation
RELEASED
1-26-16
Concrete
Pea gravel Pea gravel
REFERENCE NUMBER
INS132000.1
